Mercury 305 CID - MIE 350 Magnum EFI Gen + Tournament Ski; 5.7 L Gen+ Inboard with Cool Fuel System

ELECTRONIC FUEL INJECTION (MULTI-PORT AND THROTTLE BODY) - 5E-4190-823225--1 1096

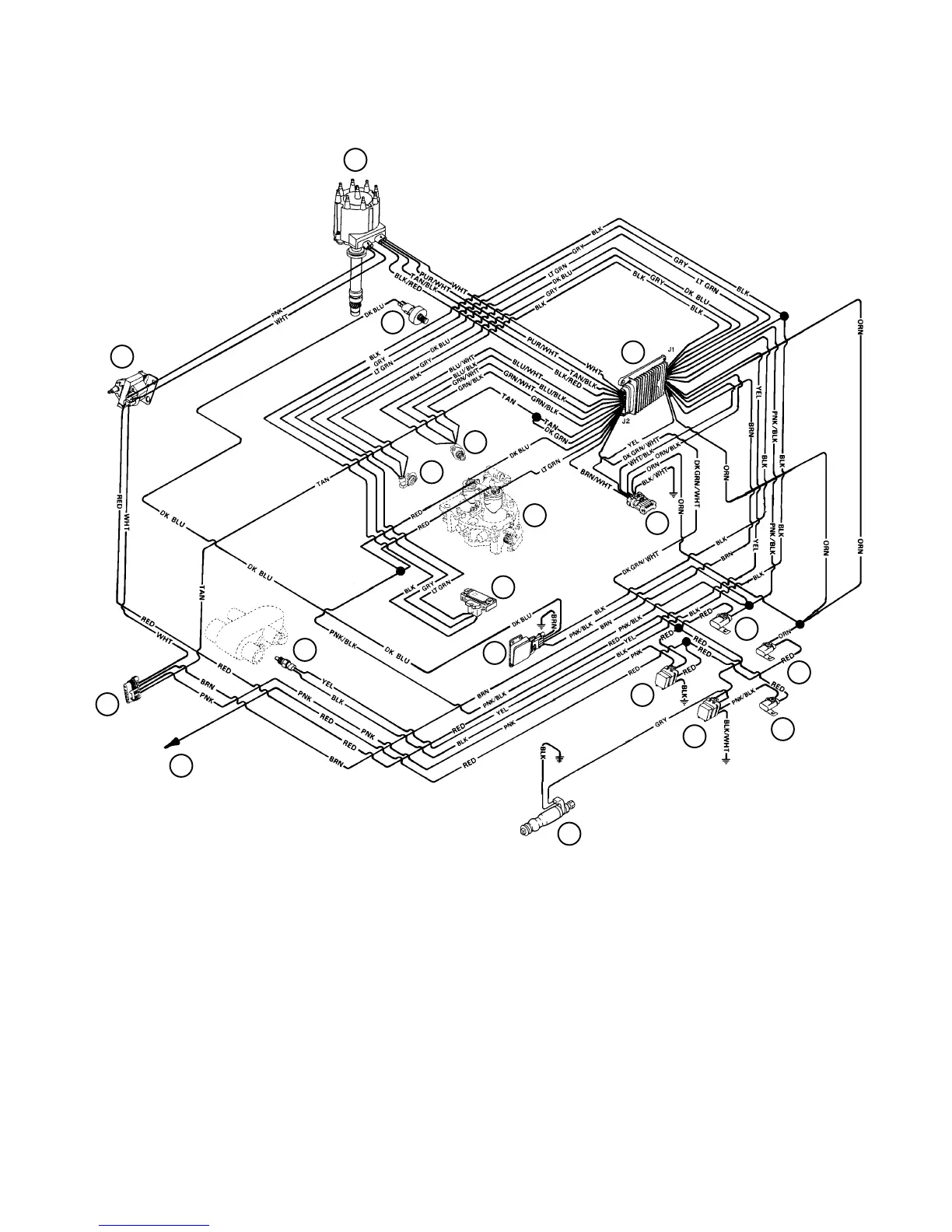

MIE 350 Magnum EFI Gen + Tournament Ski / 5.7L Gen+ Inboard With Cool Fuel
System
75001
2
3
4
5
6
7
8
9
10
11
1
12
13
14
15
16
17
18
19
Note: All BLACK Wires With A Ground Symbol Are Interconnected Within The EFI System Harness.
1 - Fuel Pump
2 - Throttle Body
3 - Distributor
4 - Coil
5 - Electronic Spark Control (KS) Module
6 - Data Link Connector (DLC)
7 - Manifold Absolute Pressure (MAP) Sensor
8 - Knock Sensor
9 - Idle Air Control (IAC)
10- Throttle Position (TP) Sensor
11- Engine Coolant Temperature (ECT) Sensor
12- Electronic Control Module (ECM)
13- Fuel Pump Relay
14- Ignition/System Relay
15- Fuse (15 Amp) Fuel Pump
16- Fuse (15 Amp) ECM/DLC/Battery
17- Fuse (10 Amp) ECM/Injector/Ignition/Knock Module
18- Harness Connector To Starting/Charging Harness
19- Positive (+) Power Wire To Engine Circuit Breaker
