4A-14 - STARTING SYSTEM 90-823225--1 1096

Standard Starter Slave

Solenoid

Testing/Replacement

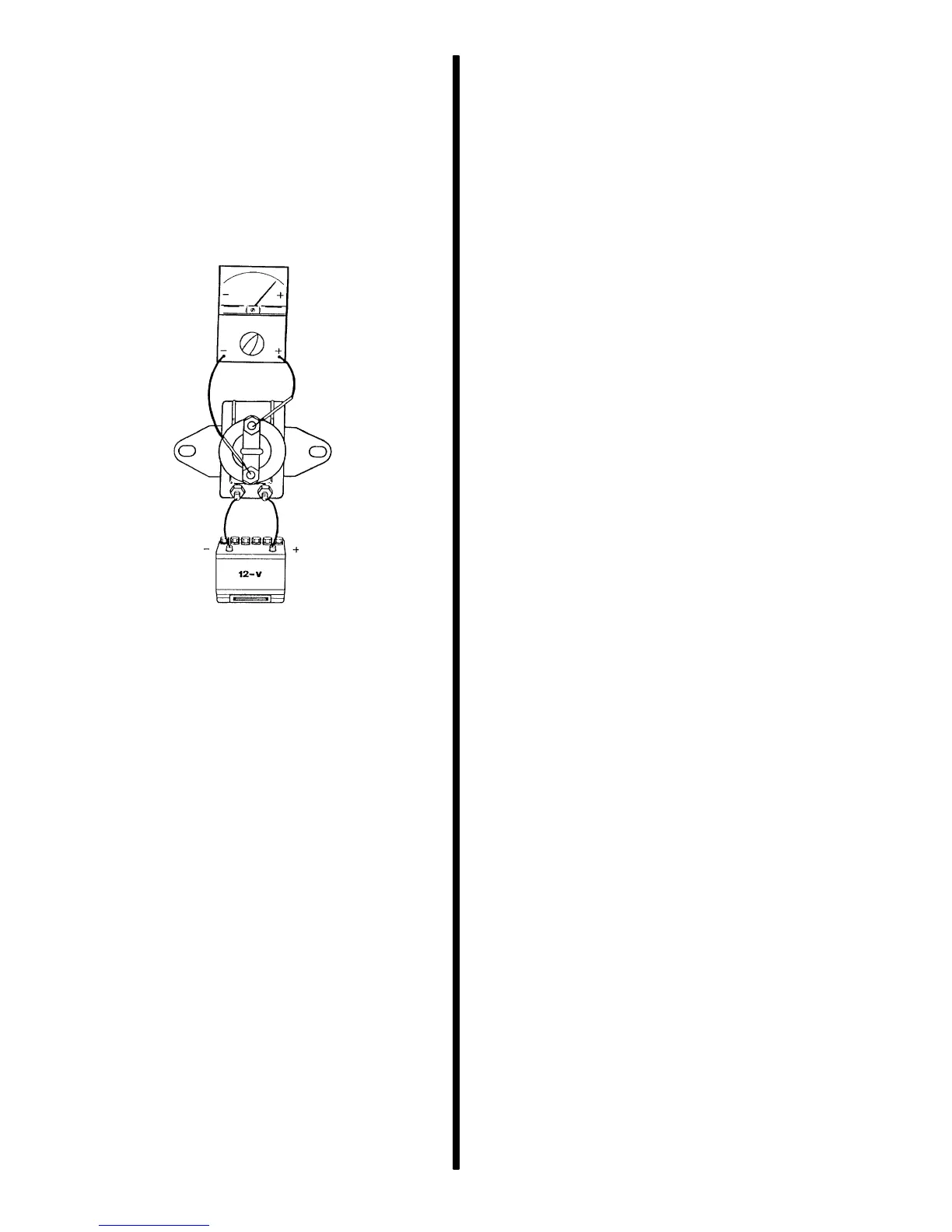

1. Using continuity meter, connect test leads as

shown, and connect 12 volt battery with jumper

leads as shown.

72630

2. If no meter movement is present, replace sole-

noid.
