6A-20 - SEAWATER COOLING MODELS 90-823225--1 1096

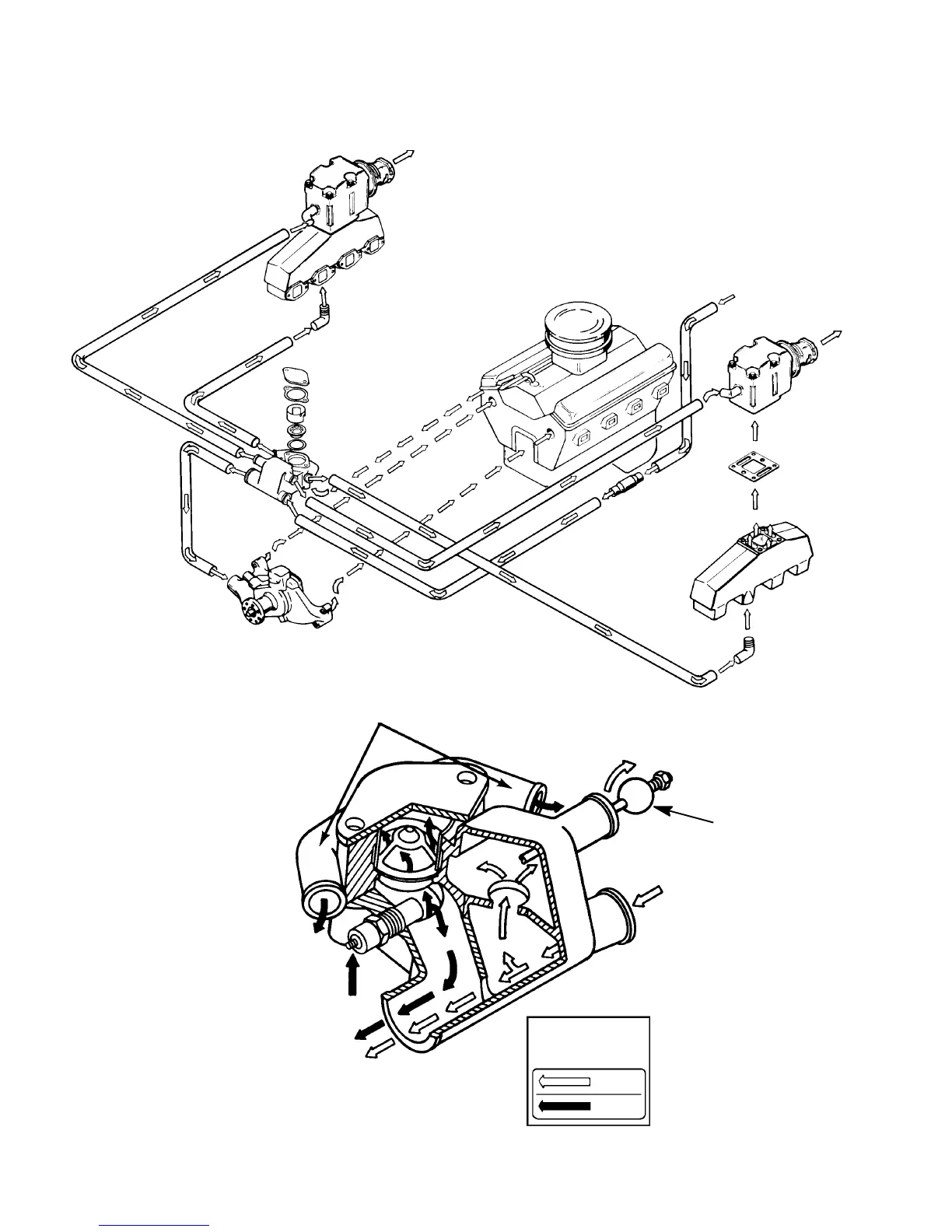

Water Flow Diagrams

MCM Alpha

OVERBOARD

THERMOSTAT

COVER

THERMOSTAT

HOUSING

ENGINE

CIRCULATING

PUMP

ENGINE BLOCK

INTAKE MANIFOLD

AND CYLINDER HEAD

ASSY.

WATER INLET

(FROM STERN

DRIVE)

EXHAUST ELBOW

RESTRICTOR

EXHAUST

MANIFOLD

POWER

STEERING

FLUID

COOLER

22382

TO EXHAUST

MANIFOLDS

TO EXHAUST

ELBOW

FROM

ENGINE

TO ENGINE

CIRCULATING

PUMP

FROM WATER INLET

(VIA FLUID COOLER)

THERMOSTAT

LEGEND

COLD

WARM

22380

NOTE: Thermostat housing

check-balls will not be present

on later models.

(NOTE)
