8C-26 - HURTH DOWN ANGLE TRANSMISSION 90-823225--1 1096
Reassembly

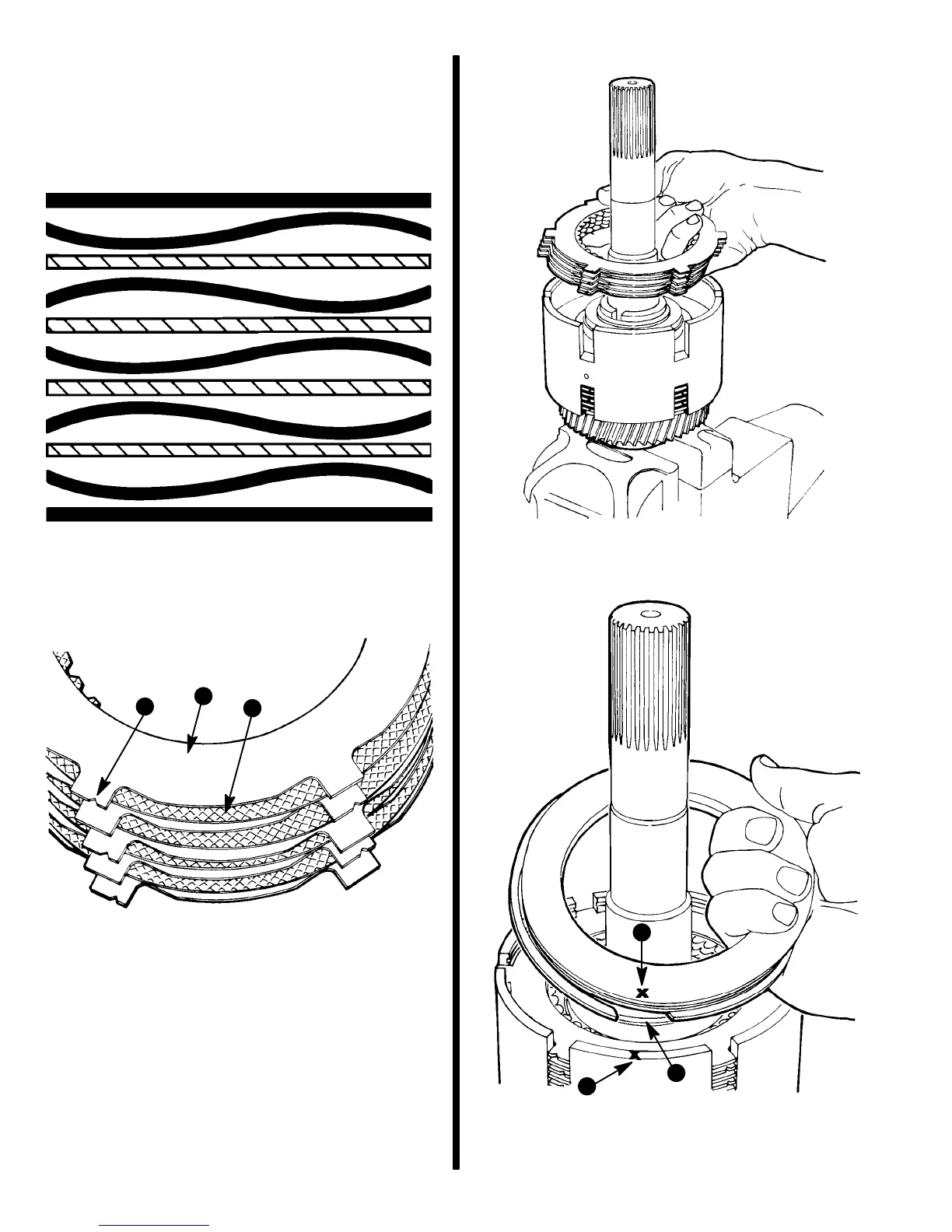

CLUTCH DISCS
IMPORTANT: Thrust discs have a wave pattern.
These discs must be reinstalled in a specific
manner as explained following.
50248
1. Arrange thrust discs and inner discs as shown.
Ensure notches on thrust disc tabs are aligned as
shown.
27679
b
c
a
630A Clutch Arrangement Shown (800AM Simi-
lar)
a - Thrust Discs (5 Per Side) See Note
b - Inner Discs (4 Per Side) See Note
c - Notches
NOTE: 800AM transmissions have additional thrust
discs (6 total per side) and inner discs (5 total per
side).
2. Install discs in clutch housing.
27680
3. Align snap ring opening with reference marks on
end disc and clutch housing.
27678
b
a
b
a - Snap Ring Opening
b - Reference Marks
To Next Page
