HURTH DOWN ANGLE TRANSMISSION - 8C-2790-823225--1 1096

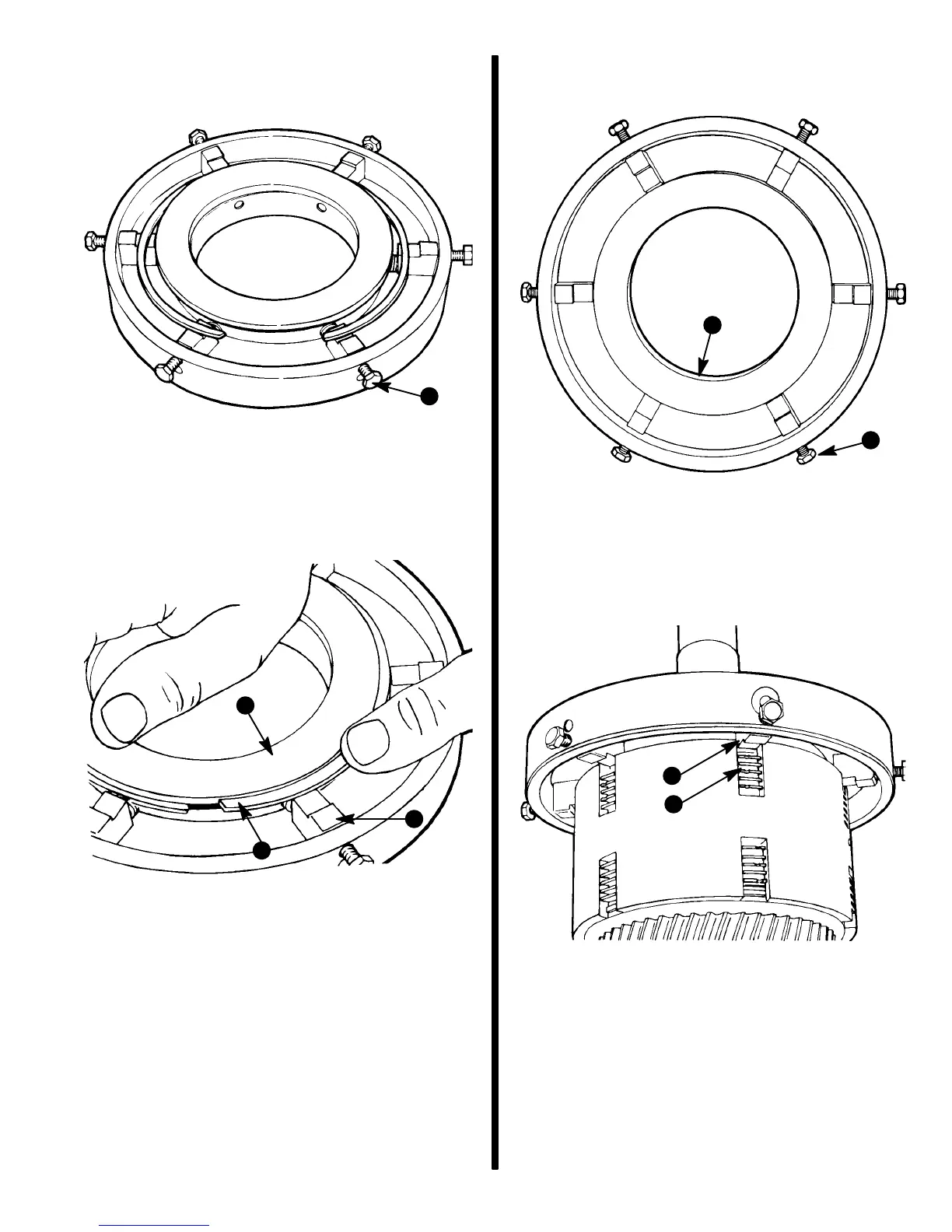

4. If end disc and snap ring were removed from tool,
reinstall as follows:
a. Loosen all compression screws on tool.
27677
a
a - Compression Screws
b. Place snap ring into groove in end disc and
compress by hand so that compression dogs
will hold in on snap ring.
27677
b
c
a
a - End Disc
b - Snap Ring
c - Compression Dogs
c. Tighten compression screws evenly to com-
pletely compress snap ring into end disc.
27677
b
a
a - End Disc
b - Compression Screws
d. Carefully lower end disc and special tool onto
clutch housing and align compression dogs
with slots in housing.
27675
b
a
a - Slots
b - Compression Dogs
