90-823225--1 1096 WEBER 4 BARREL CARBURETOR - 5D-15
Repair
NOTICE
Refer to “Precautions,” in this section,
BEFORE proceeding.
Removal
IMPORTANT: Carburetor malfunctions are, in
many cases, caused by the presence of dirt, wa-
ter or other foreign matter in carburetor. To aid in
diagnosis, carefully remove carburetor from en-
gine without draining fuel from bowl. Contents of
fuel bowl may, then, be inspected for contamina-
tion as carburetor is disassembled.
1. Turn off fuel supply at fuel tank.
2. Remove carburetor cover. Remove crankcase
ventilation hoses from flame arrestor, then re-
move flame arrestor.
IMPORTANT: Place a clean cloth in bores of car-
buretor to prevent dirt and foreign material from
falling into bores.
3. Disconnect throttle cable attaching hardware
from throttle bracket and throttle lever anchor
studs. Remove throttle cable.

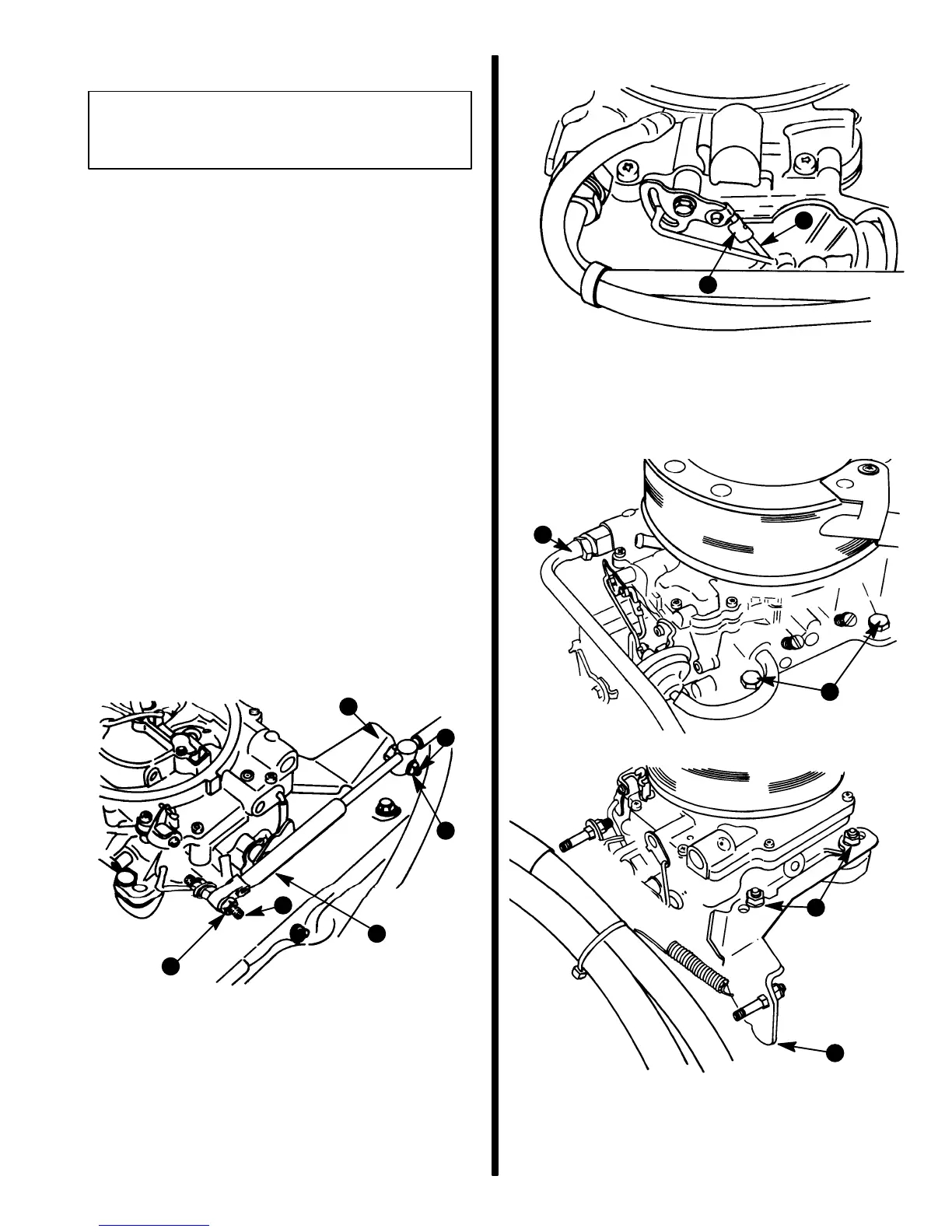

71097
a
b
c
c
d
d
a - Throttle Cable
b - Bracket
c - Attaching Hardware
d - Anchor Studs
4. Disconnect retaining clip and choke linkage rod.
71096
b
a
a - Retaining Clip
b - Linkage Rod
5. Remove fuel line and carburetor attaching hard-
ware. Remove carburetor and throttle bracket.
Discard old gasket from carburetor.
71173
a
b
71172
b
c
a - Fuel Line
b - Attaching Hardware
c - Throttle Bracket
