5C-12 - ROCHESTER 4 BARREL CARBURETOR 90-823225--1 1096
8. Remove retaining nuts and bolts; remove carbu-
retor and cable bracket.
IMPORTANT: Place a clean cloth over intake man-
ifold opening to prevent dirt or foreign material
from entering manifold.

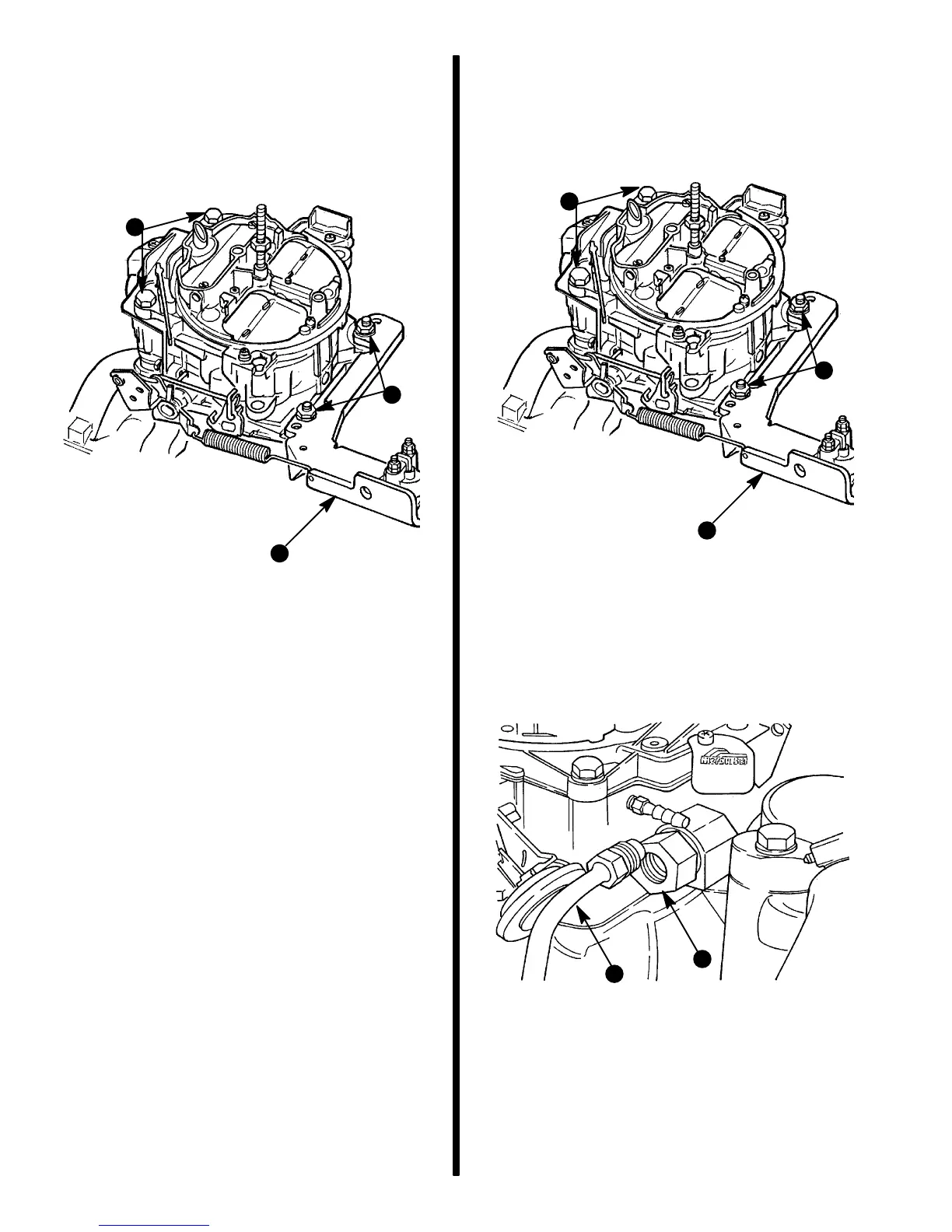

72104
a - Mounting Bolts
b - Nuts
c - Throttle Bracket
b
c
a
9. Remove old gasket from carburetor and man-
ifold.
Installation
1. Install new gasket onto manifold.
2. Install carburetor and throttle bracket and torque
to 132 lb. in. (15 N·m).
72104
a - Mounting Bolts
b - Nuts
c - Throttle Bracket
b
c
a
3. Connect fuel line and torque to 18 lb. ft. (24 N·m).
To prevent over-tightening, hold brass fuel line
coupling with suitable wrench and tighten fuel
line connector securely.
72101
a - Fuel Line
b - Fuel Line Coupling
b
a
