ROCHESTER 4 BARREL CARBURETOR - 5C-2190-823225--1 1096
Reassembly
THROTTLE BODY
NOTICE
Refer to “Adjustments” for all adjustment pro-
cedures.
IMPORTANT: Seat idle mixture screws lightly or
damage to needles and seats will result.

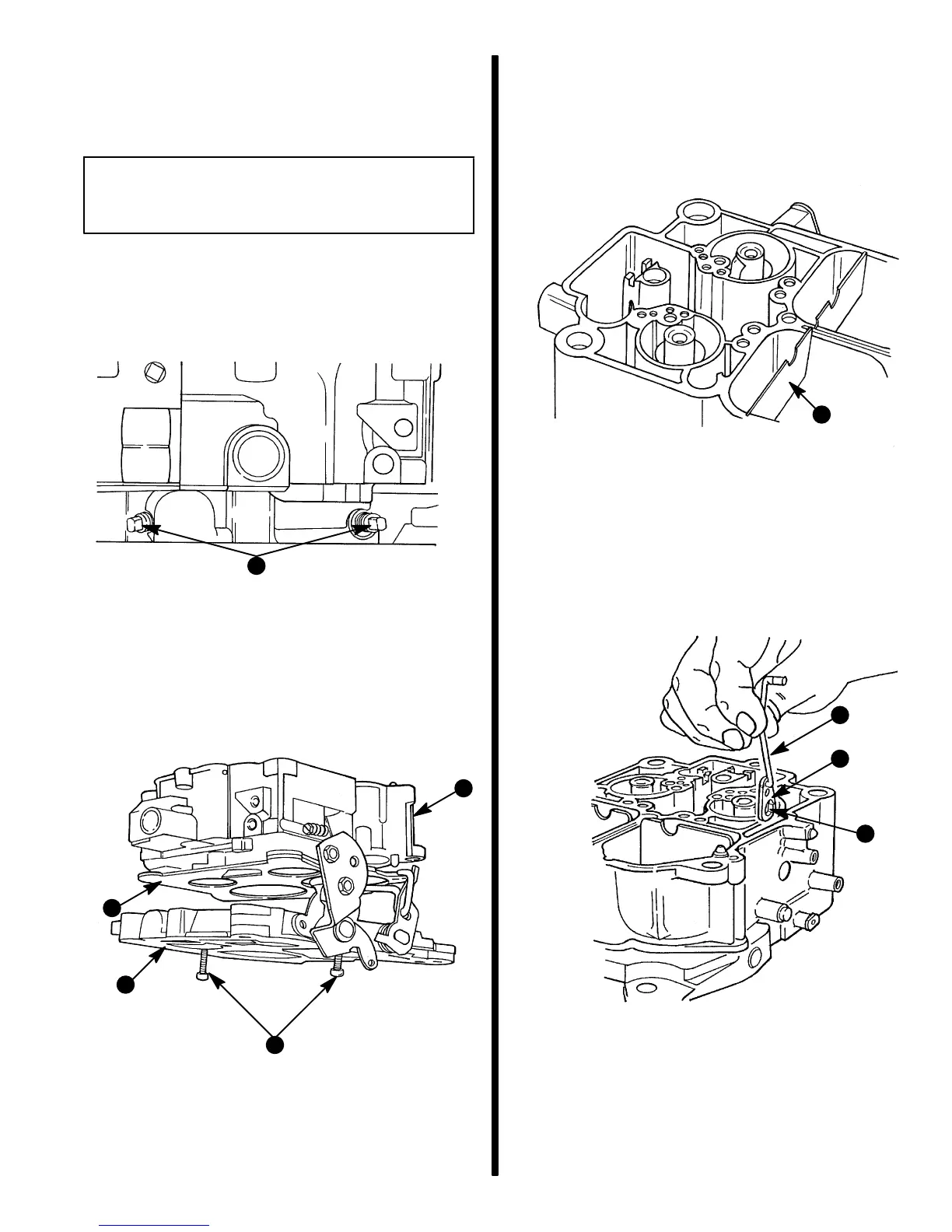

1. Install idle mixture needles and springs until light-
ly seated, then back out 2 to 3 turns.
72098
a - Idle Mixture Needles and Springs
a
2. Install new gasket and assemble throttle body to
float bowl. Tighten securely.
72121
a - Attaching Screws
b - Throttle Body
c - Gasket
d - Float Bowl
b
c
d
a
FLOAT BOWL
IMPORTANT: Place carburetor on a holding fix-
ture to prevent damage to throttle valve.
1. Install baffle plate.
72118
a - Baffle Plate
a
2. Install intermediate choke lever and vacuum
break control bracket assembly.
a. Using choke rod, suspend intermediate
choke lever in float bowl cavity so that flat
sided hole aligns with hole in side of float
bowl.
72126
a - Choke Rod
b - Choke Lever
c - Flat Sided Hole
b
c
a
