9A-6 - POWER STEERING PUMP 90-823225--1 1096

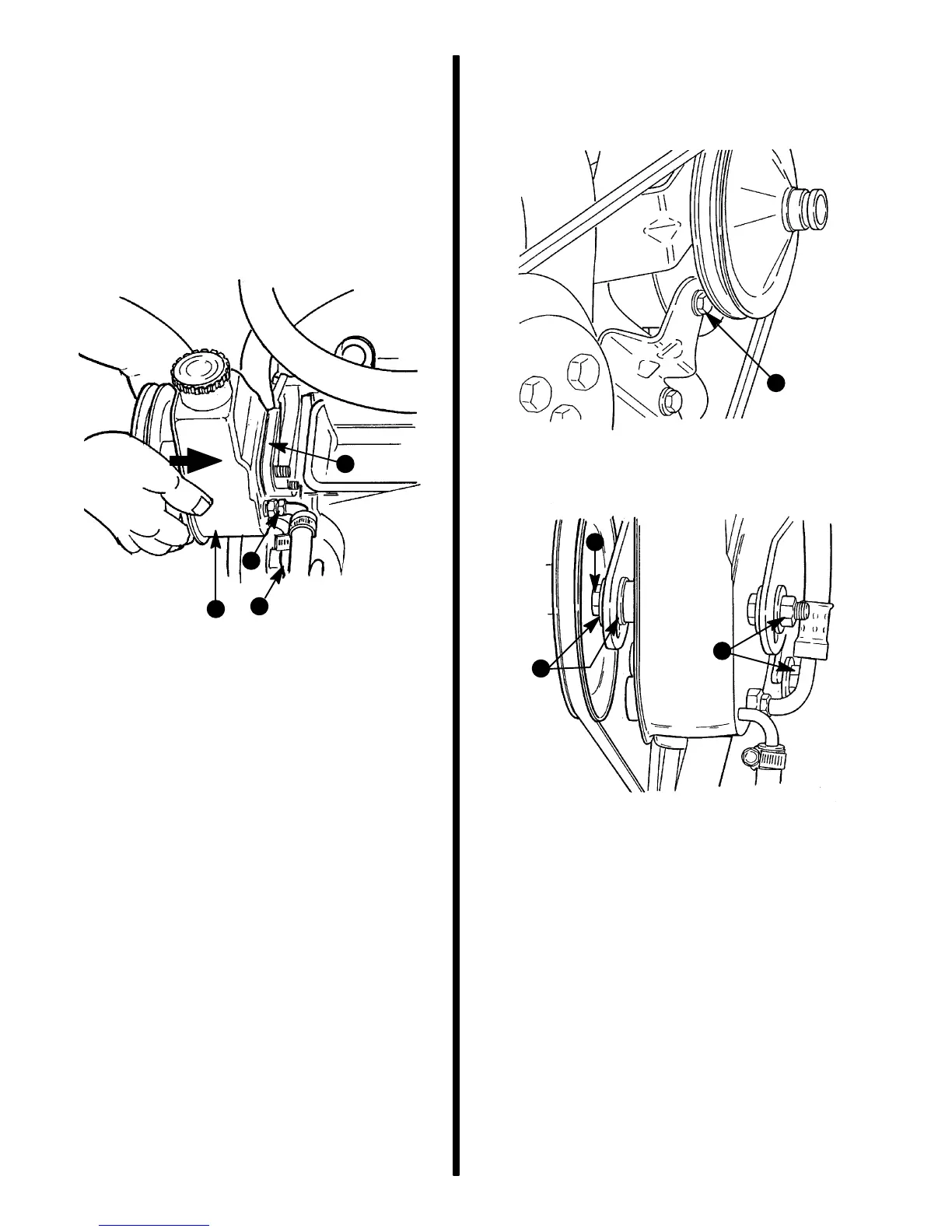

Pump Assembly
IMPORTANT: Be careful to not cross-thread or
over-tighten hose fittings.
1. Be certain a new high pressure hose O-ring is
present, and install threaded fitting in back of
pump assembly. Tighten fitting securely. Connect
low pressure hose on back of pump. Tighten
hose clamp securely.
72850
b
c
d
a
a - Pump
b - Bracket
c - Threaded Fitting
d - Low Pressure Hose
2. Install mounting hardware and fasteners to retain
pump to bracket. (Refer to “Exploded View” for
specific details on your engine.)
72849
a
72848
b
c
a
a - Screw With :Lockwasher
b - Nuts (With Hardware)
c - Spacers
3. Install drive belt and adjust tension. Refer to
“Pump Drive Belt Adjustment” as previously out-
lined.
4. Fill and air bleed system. Refer to Section 1B -
“Maintenance” (see “Table of Contents”).
