Mercury 305 CID - Disassembly

To Next Page

To Previous Page

ROCHESTER 4 BARREL CARBURETOR - 5C-1590-823225--1 1096

Disassembly

IMPORTANT: Place carburetor on a holding fix-

ture to prevent throttle valve damage.

AIR HORN

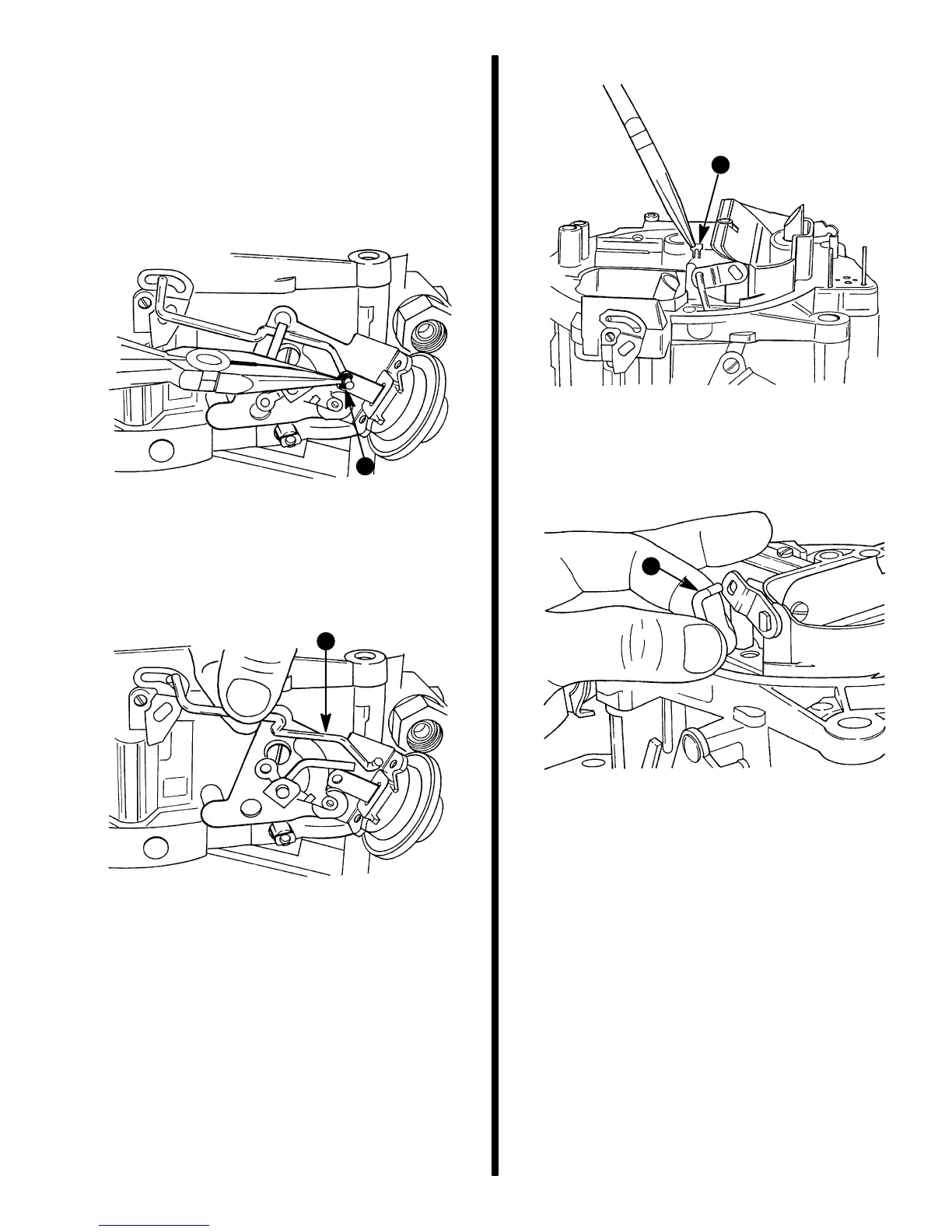

1. Remove vacuum pump rod clip and rod.

72105

a - Rod Clip

72106

a - Rod

2. Remove choke shutter clip and rod.

72107

a - Clip

72108

a - Choke Shutter Rod
