HURTH DOWN ANGLE TRANSMISSION - 8C-4190-823225--1 1096
Final Assembly

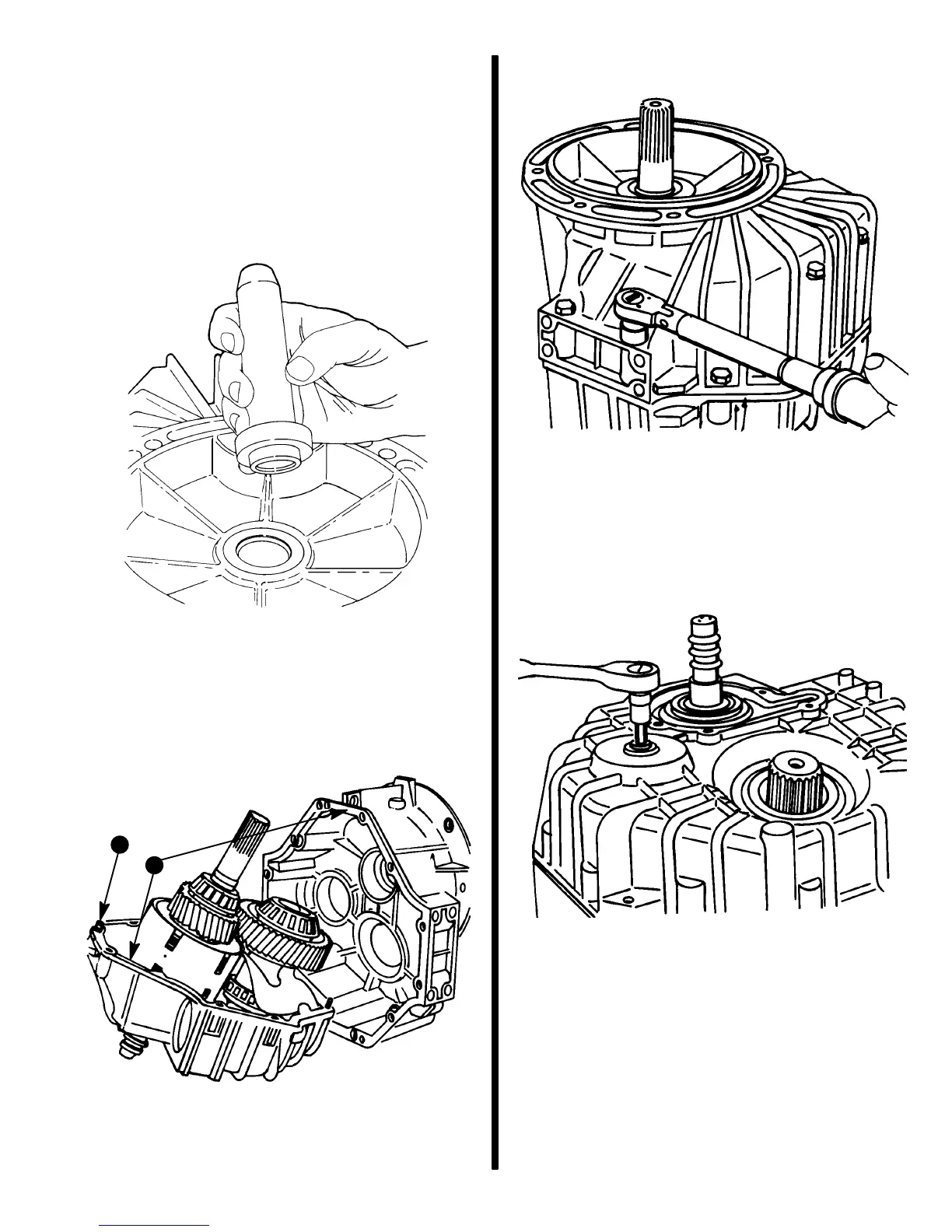

INPUT SHAFT SEAL
1. Push new seal onto special mandrel. Ensure seal
will be positioned with lip of seal facing inward.
Drive seal uniformly into bore of housing to the
point that it is countersunk .040 in. (1 mm) with
reference to housing surface.
27670
2. Coat lips of seals on input and output shafts with
ATF.
3. Apply a thin layer of Loctite 515 Sealer to ma-
chined surfaces on housing halves. Reinstall in-
put half of housing. Ensure locator pins are prop-
erly positioned.
71053
b
a
a - Locator Pins
b - Machined Surface
4. Install bolts and lockwashers and torque to 36 lb.
ft. (49 N·m).
71064
5. Double check to ensure that there is no shaft
clearance on all three shafts. Refer back to pre-
vious steps if necessary, and use dial indicator.
6. Remove intermediate shaft hex plug. Apply a
drop of Quicksilver Loctite 8831 to threads and
reinstall in housing. Tighten securely.
71065
