5C-8 - ROCHESTER 4 BARREL CARBURETOR 90-823225--1 1096
3. Bend rod to adjust.
72095
a - Bend Here
a
Vacuum Break

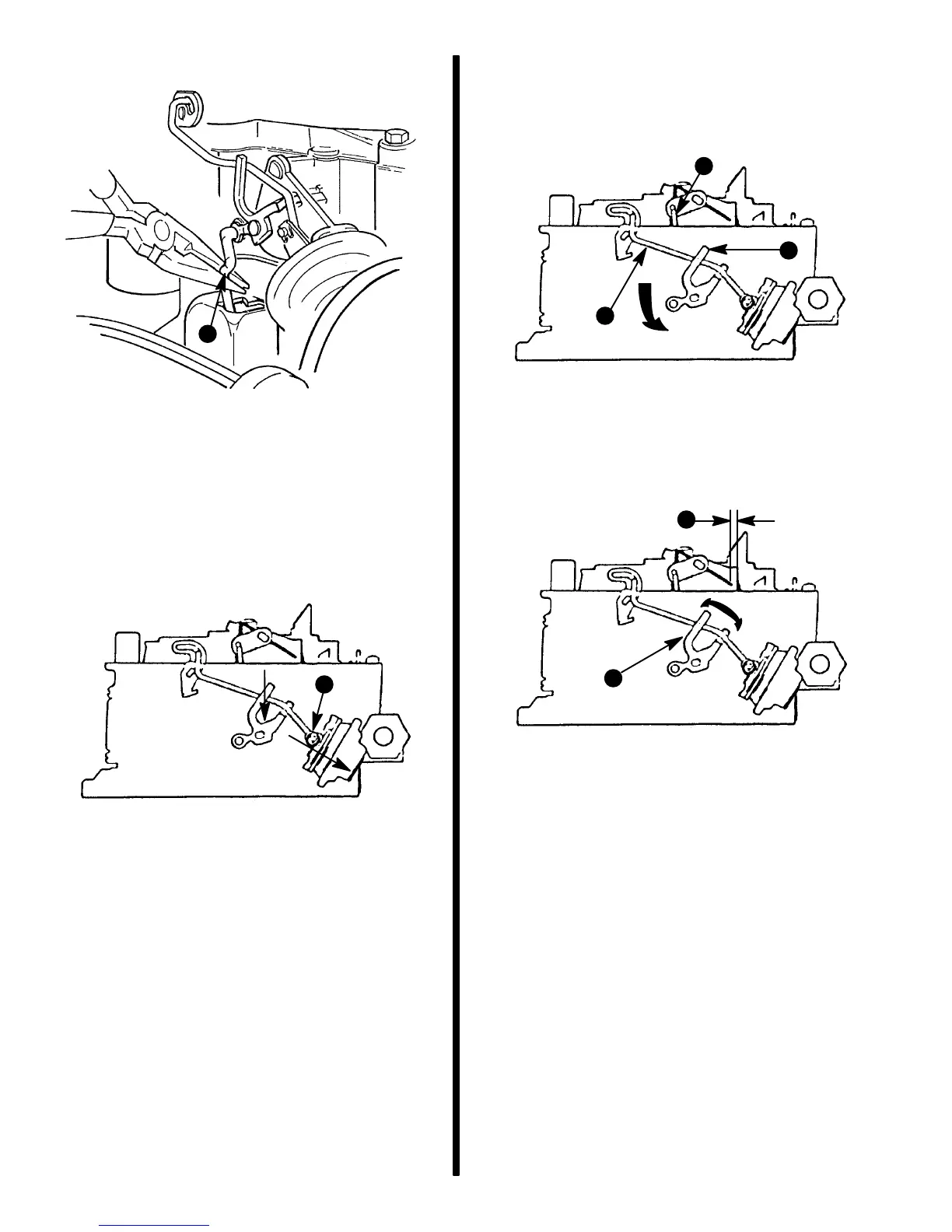

1. Seat vacuum break control diaphragm by push-
ing in direction shown by arrow.
72097
a - Vacuum Break Control Diaphragm
a
2. Rotate vacuum break choke lever counterclock-
wise until tang contacts vacuum break rod.
Choke rod must be at bottom of choke shaft lever
slot.
72097
a - Tang
b - Choke Rod
c - Vacuum Break Rod
c
a
b
3. Bend tang as necessary to obtain specified
choke valve gap of 5/64 [.08] in. (2.0 mm).
72097
a - Tang
b - Gap
b
a
