9A-14 - POWER STEERING PUMP 90-823225--1 1096

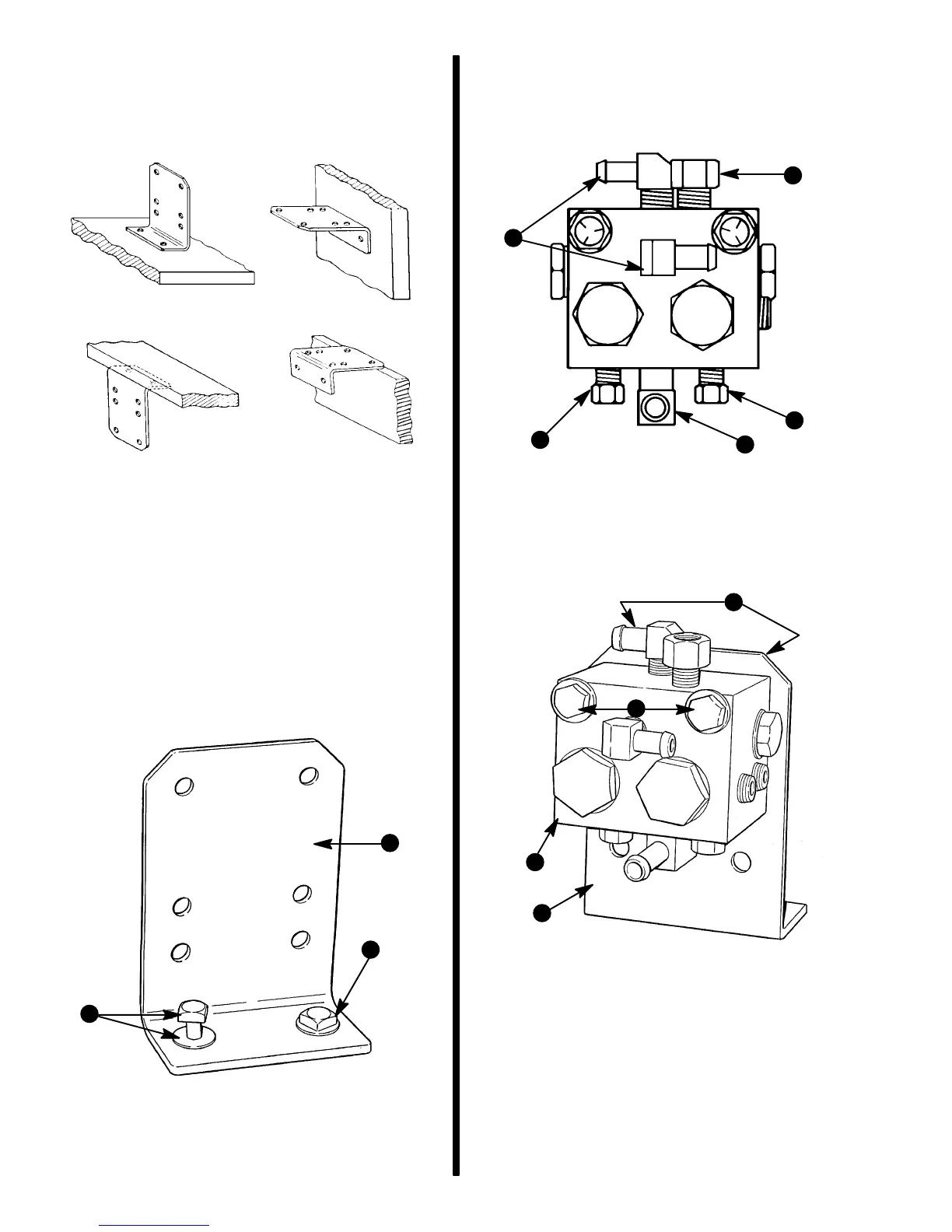

Installing Priority Valve
NOTE: Priority valve mounting bracket can be
used in various mounting configurations.
71403
1. Install priority valve mounting bracket.
a. Find a central location that will be accessible
for making and checking hose connections.
Ensure that location will allow 2 in. (51 mm)
or more, above and below priority valve for
hose connections and routing (preferably on
a stringer near transom).
b. Mount bracket using lag bolts and washers
supplied.
72859
b
a
b
a - Mounting Bracket
b - Lag Bolts and Washers
NOTE: The 90° elbow locations on priority valve
are marked with a “T” stamped into the valve.
2. Apply liquid pipe joint sealer to threads and install
fittings into priority valve.
71404
b
c
a
a
c
a - 90 Degree Elbow
b - Large Inverted Flare Fitting
c - Small Inverted Flare Fitting
3. Mount priority valve on bracket. Torque bolt to
120 lb. in. (14 N·m).
72860
c
d
a
b
a - Bolt and Washers
b - Washer and Nut (Not Shown In This View)
c - Bracket
d - Priority Valve
To Next Page
