STARTING SYSTEM - 4A-190-823225--1 1096

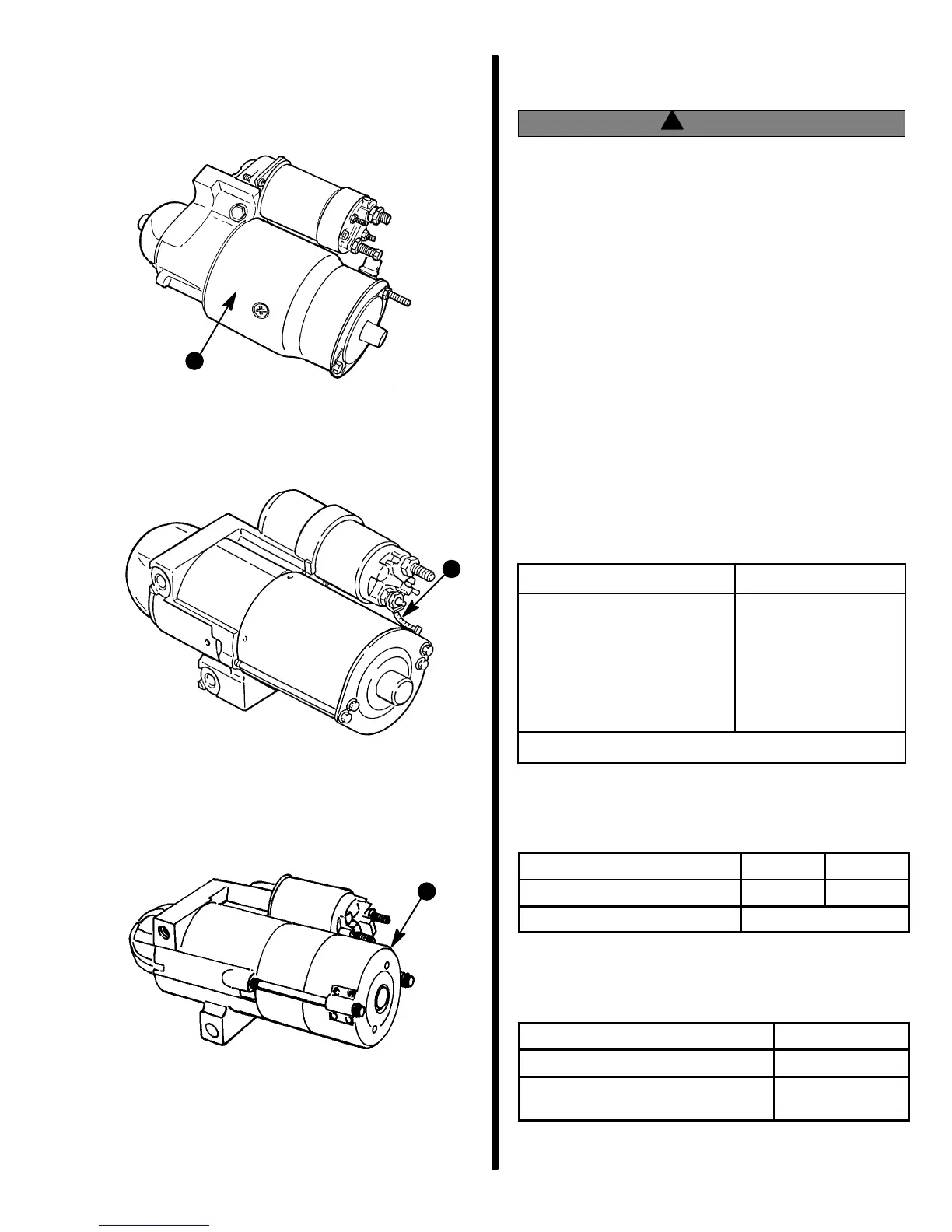

Identification
The starter identification number is located as
shown.
72789
a
Direct Drive Starter Motor
72059
a
Permanent Magnet Gear Reduction (PG200 and
PG250) Starter Motor
a
Permanent Magnet Gear Reduction (PG260)
Starter Motor
a - Starter Identification Number
Replacement Parts Warning
!
WARNING
Electrical, ignition and fuel system components
on your MerCruiser are designed and manufac-
tured to comply with U.S. Coast Guard Rules and
Regulations to minimize risks of fire and explo-
sion.
Use of replacement electrical, ignition or fuel system
components, which do not comply with these rules
and regulations, could result in a fire or explosion
hazard and should be avoided.
Battery
IMPORTANT: Terminals must be soldered to
cable ends to ensure good electrical contact. Use
electrical grade (resin flux) solder only. Do not
use acid flux solder, as it may cause corrosion
and failure.
Battery Cable Recommendations
Cable Length Cable Gauge
Up to 3-1/2 Ft. (1.1 m) 4 (25 mm
2
)
3-1/2 - 6 Ft (1.1-1.8 m) 2 (35 mm
2
)
6 - 7-1/2 Ft. (1.8-2.3 m) 1 (50 mm
2
)
7-1/2 - 9-1/2 Ft. (2.3-2.9 m) 0 (50 mm
2
)
9-1/2 - 12 Ft. (2.9-3.7 m) 00 (70 mm
2
)
12 - 15 Ft. (3.7-4.6 m) 000 (95 mm
2
)
15 - 19 Ft. (4.6-5.8 m) 0000 (120 mm
2
)
Both positive (+) and negative (–) cables
Torque Specifications
Fastener Location lb. ft. N·m
Starter Mounting Bolts 30 41
All Other Fasteners Tighten Securely
Lubricants/Sealants
Description Part Number
Quicksilver Liquid Neoprene 92-25711-2
Quicksilver 2 4 C Marine
Lubricant With Teflon
92-825407A3
