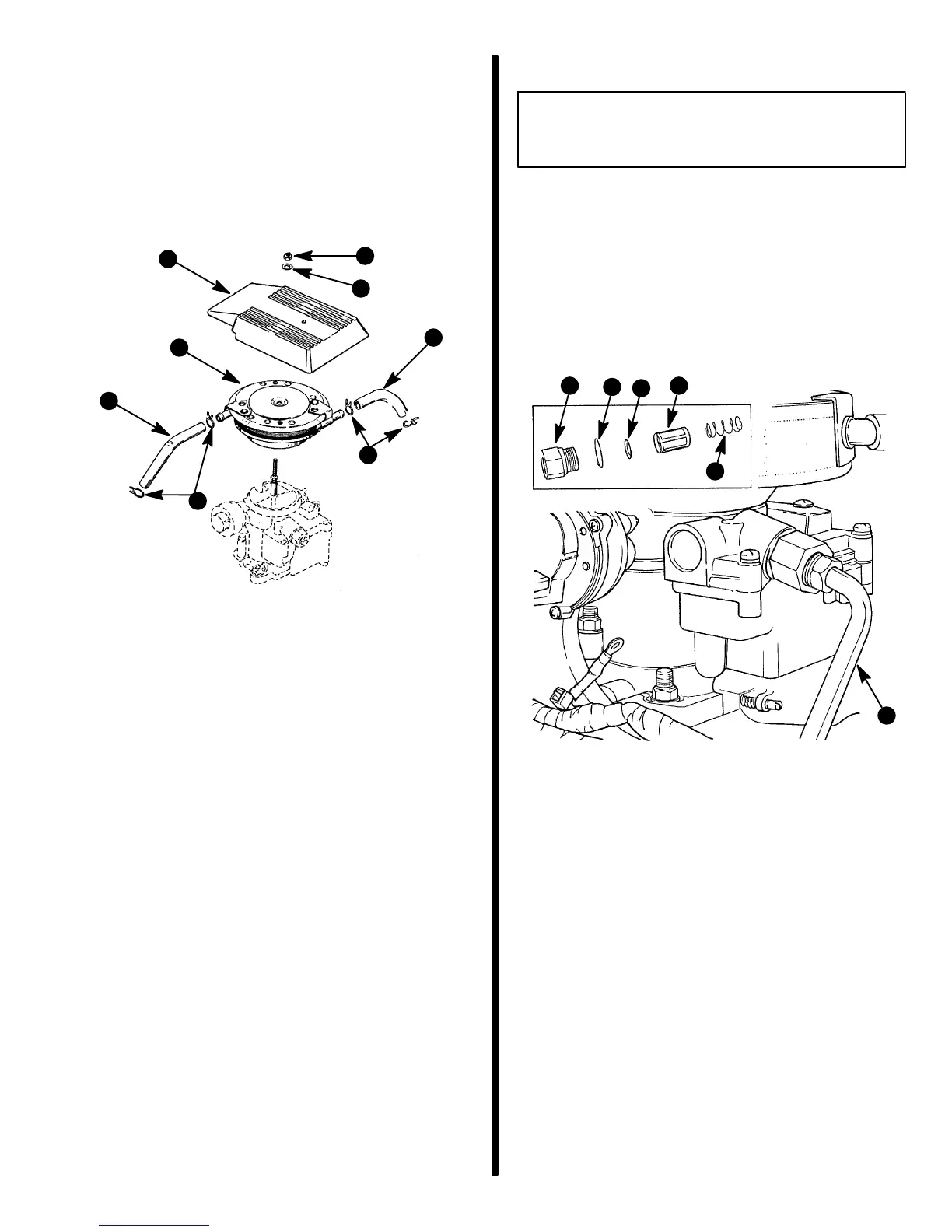

3. Install in the following order:
a. Flame arrestor.
b. Crankcase ventilation hoses to flame arres-
tor and rocker arm covers.
c. Carburetor cover.
d. Sealing washer.
e. Nut (tighten securely).
72086
e
f
b
c
d
a
d
e
a - Nut
b - Sealing Washer
c - Carburetor
d - Cable Tie
e - Crankcase Ventilation Hose
f - Flame Arrestor
Fuel Inlet Filter
NOTICE
Refer to “Precautions,” in this section, BEFORE
proceeding.
1. Remove in the following order:
a. Fuel line from fuel inlet filter nut.
b. Fuel inlet filter nut and small gasket.
c. Large gasket.
d. Filter.
e. Spring.
f. Small gasket - from inside filter nut.
72406
b
c
d
a
e
f
a - Fuel Line
b - Fuel Inlet Filter Nut
c - Gasket (Larger)
d - Gasket (Small)
e - FIlter
f - Spring
2. Clean filter nut and spring in solvent and dry with
compressed air.
3. Install in the following order:
a. Spring - place in carburetor body.
b. Filter - open end to inlet filter nut.
c. Small gasket - place inside filter nut.
d. Large gasket - place over filter nut threads.
e. Fuel inlet filter nut - torque nut to 18 lb. ft.
(24 N·m).
f. Fuel line - torque to 18 lb. ft. (24 N·m).
