FUEL DELIVERY SYSTEMS AND FUEL PUMPS - 5A-590-823225--1 1096

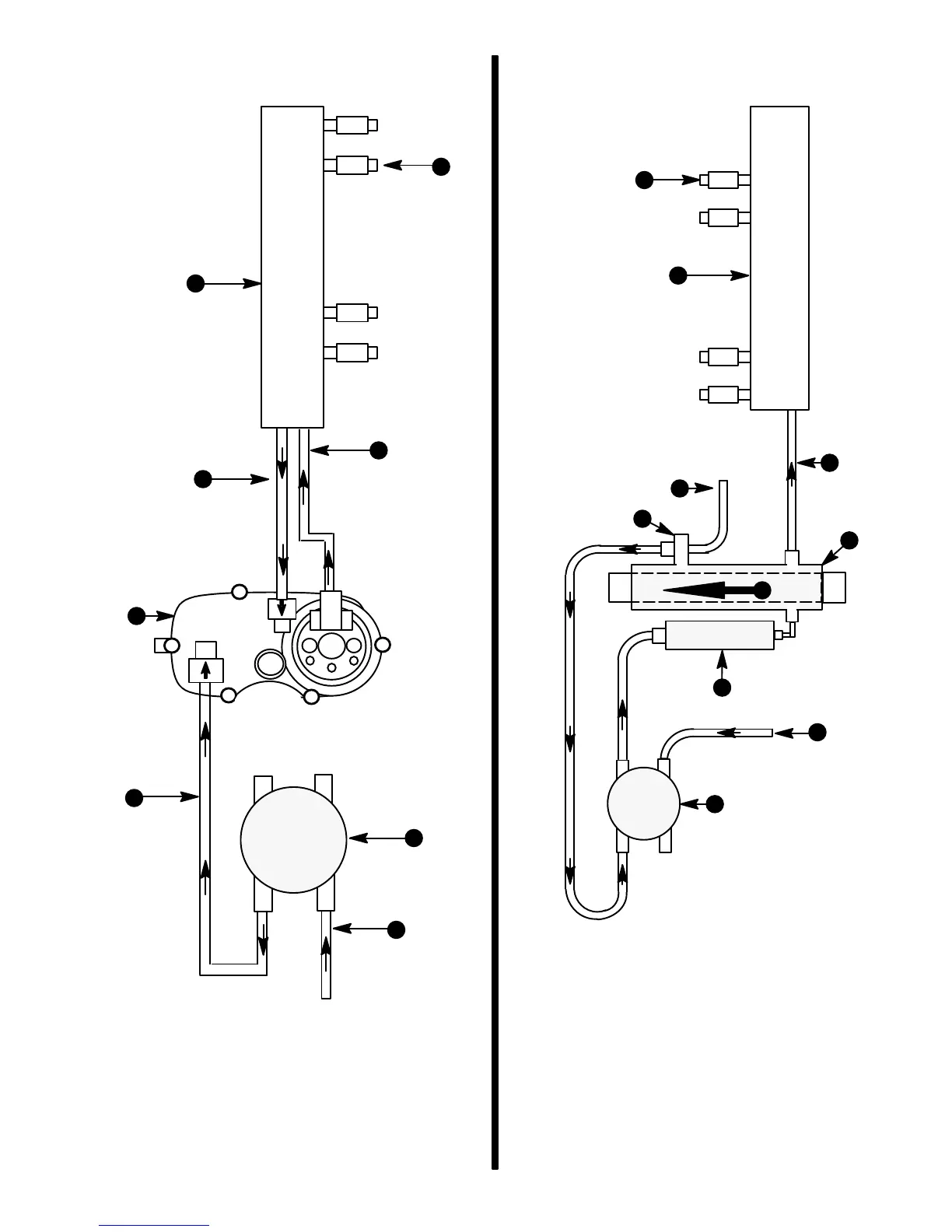

Multi-Port Injection With Vapor
Separator Tank (VST)
73895
b
c
d
e
f
g
a
h
a - Fuel Injector (8)
b - Fuel Rail
c - Outlet Fuel Line
d - Return Fuel Line
e - Vapor Separator Tank (VST)
f - Fuel Line From Water Separating Fuel Filter
g - Water Separating Fuel Filter
h - Fuel Line From Tank
Multi-Port Injection With Cool Fuel
System
b
e
a
c
f
d
g
i
74871
k
l
a - Vacuum Line To Intake Manifold
b - Fuel Pressure Regulator
c - Fuel Cooler
d - Electric Fuel Pump
e - Water Separating Fuel Filter
f - Fuel From Tank
g - Direction Of Water Flow
h - Throttle Body Unit
i - Fuel Line To Throttle Body
j - Excess Fuel Return To Water Separating Fuel Filter
k - Fuel Injectors (8)
l - Fuel Rail
