Mercury 305 CID - MCM V-8 Bravo Thunderbolt V Without Knock Sensor

4F-10 - WIRING DIAGRAMS 90-823225--1 1096

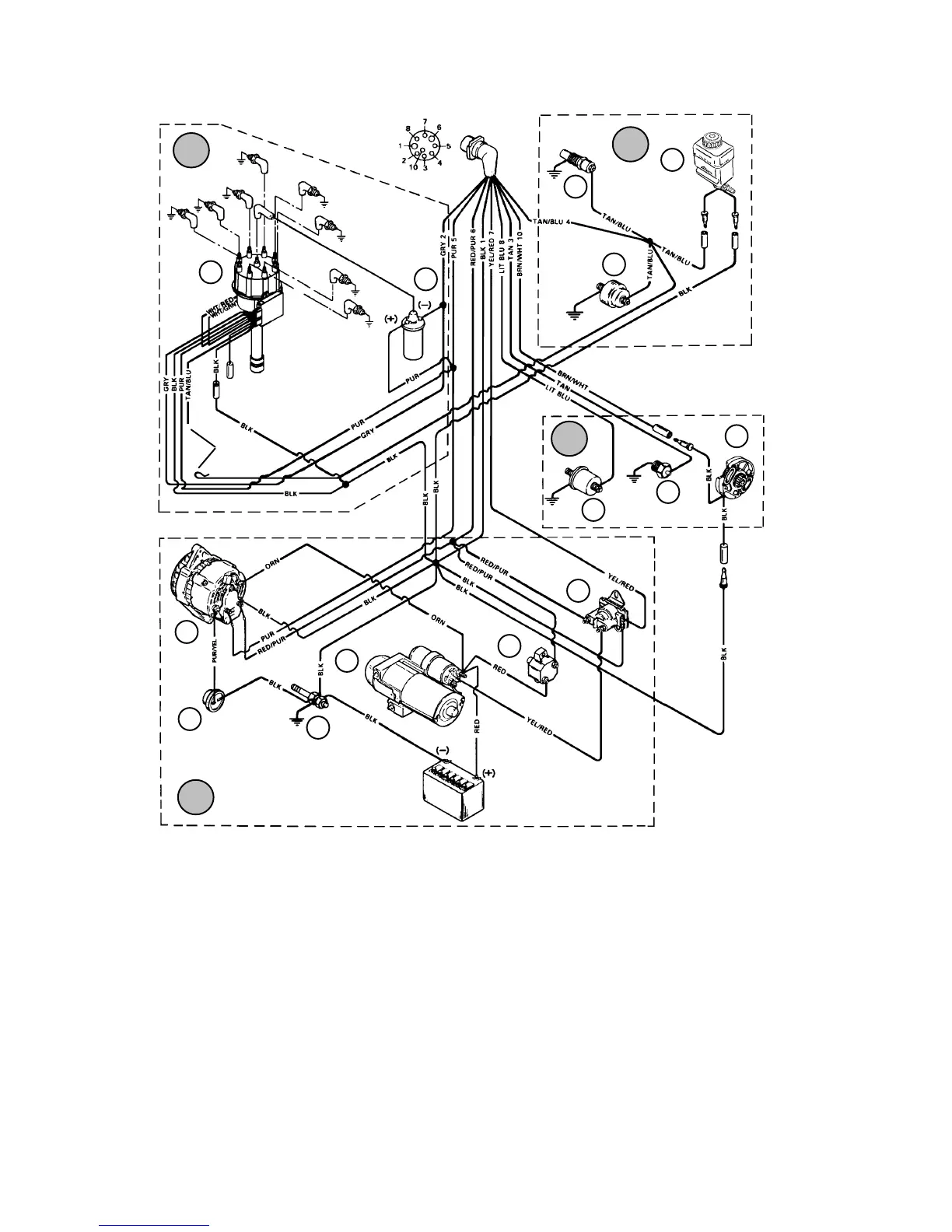

MCM V-8 Bravo Thunderbolt V Without Knock Sensor
2
6
1
2
3
1
2
3
1
74592
1
2
3
4
5
NOTE 1
C
B
D
A
NOTE: TAN/BLU wire is not used at distributor.
A-Ignition System
1 -Distributor
2 -Ignition Coil
B-Starting System
1 -Alternator
2 -Electric Choke
3 -Ground Bolt
4 -Starter
5 -Circuit Breaker
6 -Starter Slave Solenoid
C-Audio Warning System
1 -Water Temperature
2 -Drive Unit Oil Level (If Equipped)
3 -Oil Pressure Switch
D-Instrumentation System
1 -Oil Pressure Sender
2 -Water Temperature Sender
3 -Trim Sender
