Mercury 305 CID - MIE 350 Magnum MPI Gen + Tournament Ski (Black Scorpion)

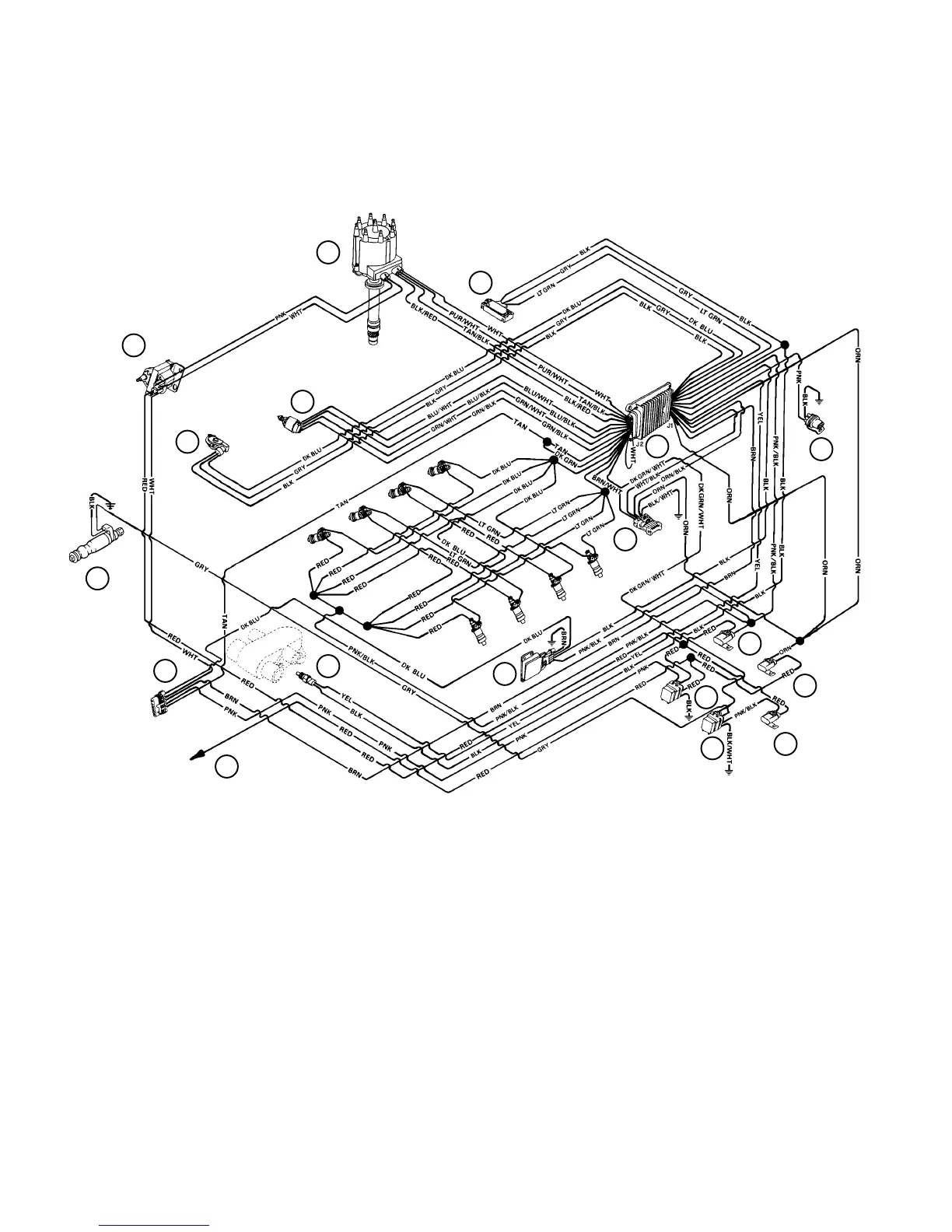

90-823225--1 10965E-40 - ELECTRONIC FUEL INJECTION (MULTI-PORT AND THROTTLE BODY)
MIE 350 Magnum MPI Gen + Tournament Ski (Black Scorpion)
74893
1
2
3
4
5
6
7
10
11
12
13
14
15
16
17
18
8
9
Note: All BLACK Wires With A Ground Symbol Are Interconnected Within The EFI System Harness.
1 - Fuel Pump
2 - Distributor
3 - Coil
4 - Electronic Spark Control (KS) Module
5 - Data Link Connector (DLC)
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Idle Air Control (IAC)
8 - Throttle Position (TP) Sensor
9 - Engine Coolant Temperature (ECT) Sensor
10- Electronic Control Module (ECM)
11- Fuel Pump Relay
12- Ignition/System Relay
13- Fuse (15 Amp) Fuel Pump
14- Fuse (15 Amp) ECM/DLC/Battery
15- Fuse (10 Amp) ECM/Injector/Ignition/Knock Module
16- Harness Connector To Starting/Charging Harness
17- Harness Connector To Lanyard Stop Switch (Optional)
18- Positive (+) Power Wire To Engine Circuit Breaker
