7D-2 - COLLECTORS 90-823225--1 1096
b
a

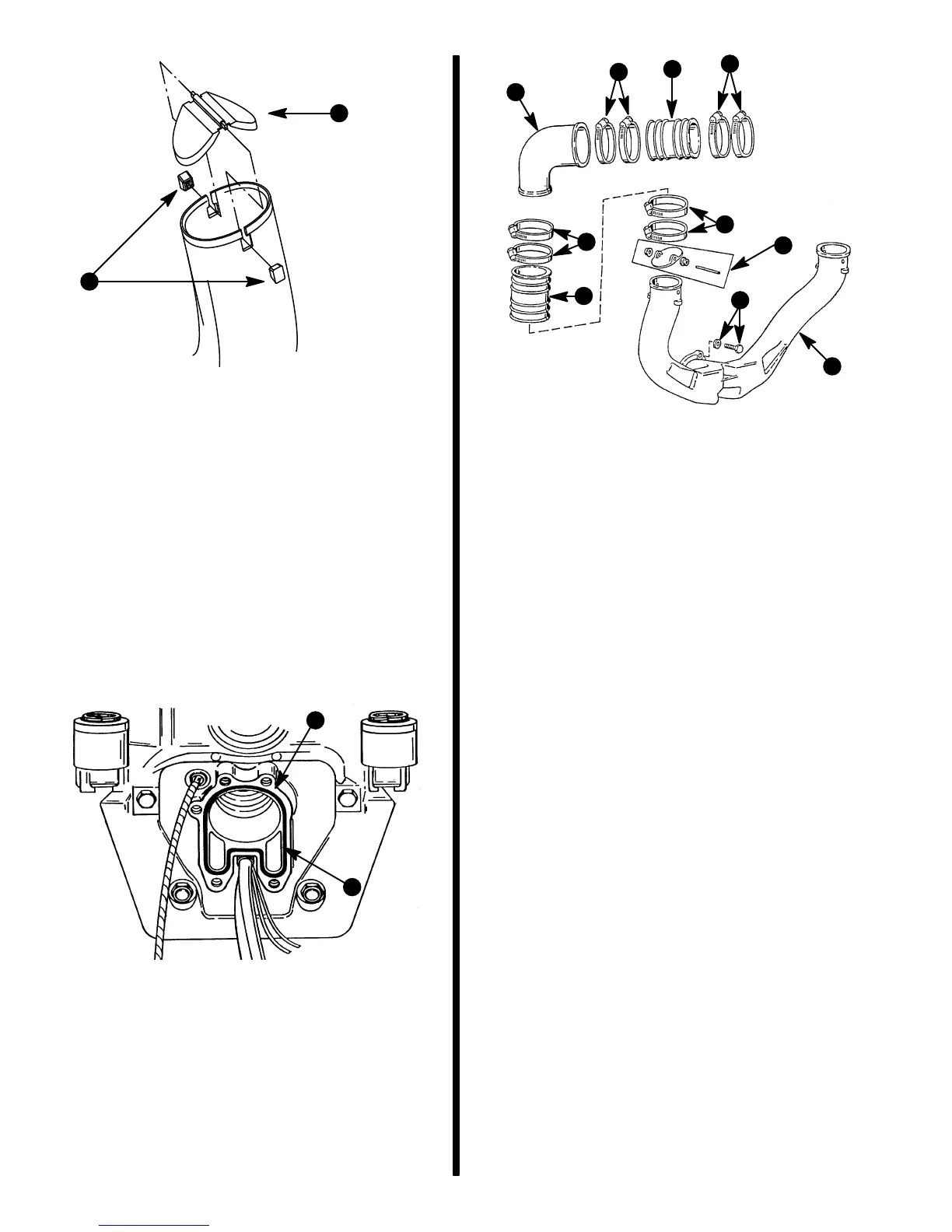

Later Style Shutter
a - Exhaust Flapper
b - Rubber Grommets
Component Replacement
To replace any components(s) in exhaust system,
the following must be adhered to:
• All mating joint surfaces must be clean.
• O-ring must remain in groove to properly seal
joints to prevent leakage.
• Torque all bolts to 20-25 lb. ft. (27-34 N·m).
• Tighten all clamps securely.
72736
b
a
a - Mating Surface
b - O-Ring
72737
d
f
c
c
e
a
b
a
a
a
a - Clamps
b - Exhaust Pipe Elbow
c - Exhaust Hose
d - Water Shutters
e - Bolts and Lockwashers
f - Exhaust Pipe
