72938

NOTE 1: Connect wires together with screw and hex nut. Apply Liquid Neoprene to connection and slide rubber

sleeve over connection.

NOTE 2: Power for a fused accessory panel may be taken from this connection. Load MUST NOT exceed

35-40 amps. Panel ground wire MUST BE connected to instrument terminal that has an 8 gauge black (Ground)

harness wire connected to it.

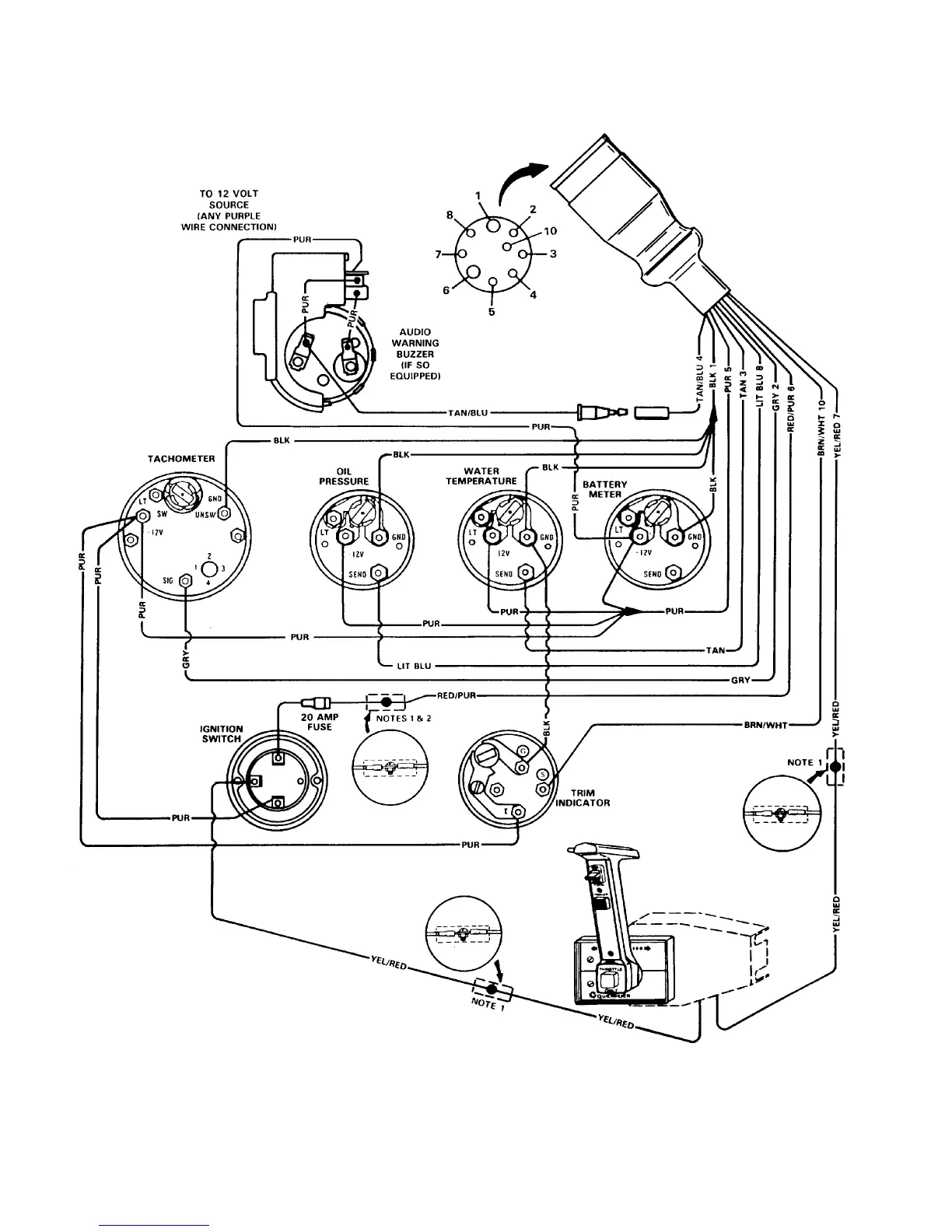

4F-24 - WIRING DIAGRAMS 90-823225--1 1096

MCM Quicksilver Instrumentation

MCM EARLIER STYLE CONTROLS AND AUDIO WARNING BUZZER
