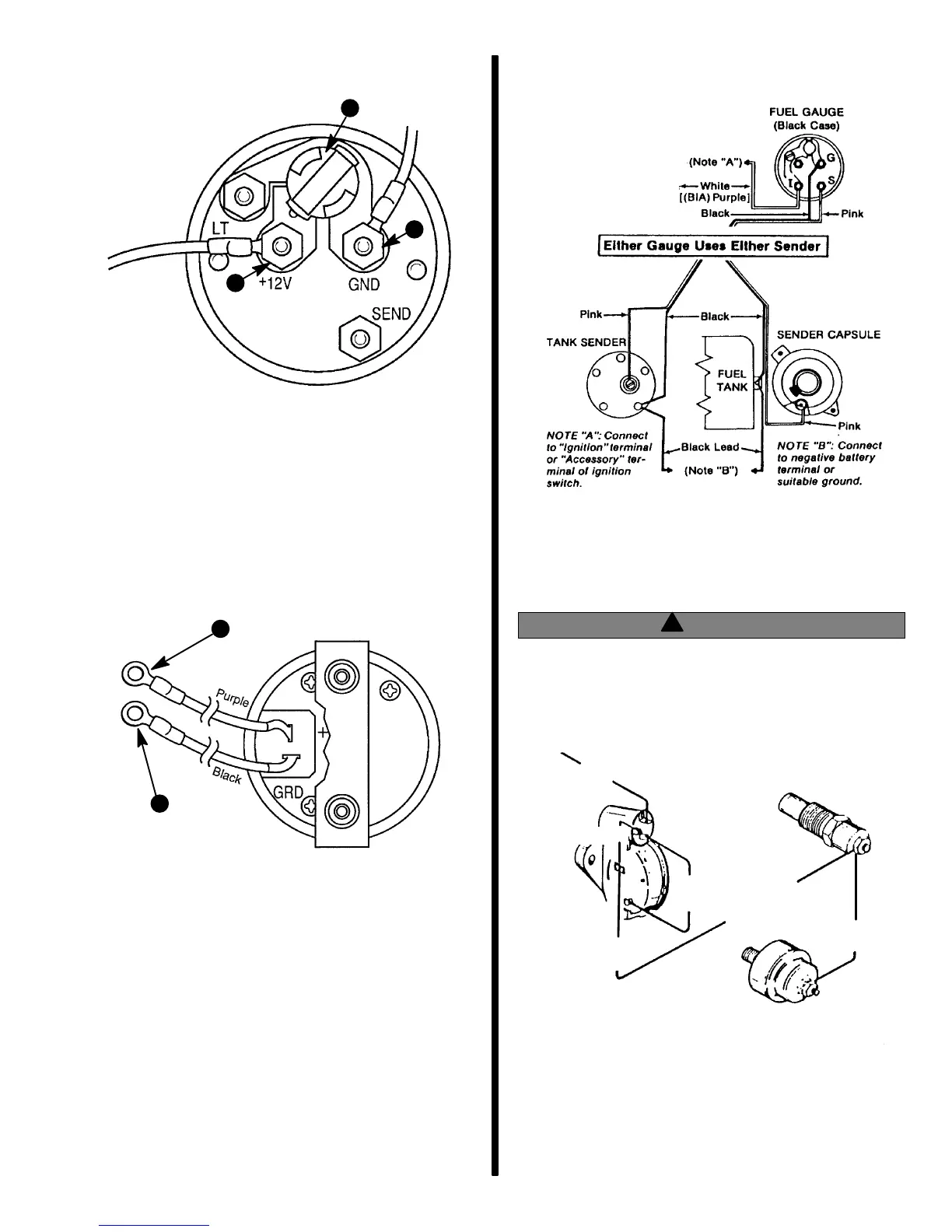

WIRING DIAGRAMS - 4F-3190-823225--1 1096

Battery Meter Gauge

72814

a - Lamp Mounting Hole

b - Purple (or White) Jumper Wire from This Terminal to I (or +)

Terminal on Water Temperature or Oil PressureGauge

c - Black Jumper Wire from This Terminal to Ground

Terminal on Water Temperature or Oil Pressure Gauge

Cruiselog

72815

a - Connect to Ignition Switch Activated 12 Volt

Positive (+) Source (Purple Wire)

b - Connect to Negative (–) Ground (Black Wire)

Fuel Gauge and Sender

72816

Audio Warning System

WARNING

Buzzer is not external ignition-proof; therefore, DO

NOT mount buzzer in engine or fuel tank compart-

ments.

72817

PURPLE

RED

TAN/BLUE

PURPLE

TAN/BLUE

WATER TEMPERATURE

HEAT SWITCH

OIL PRESSURE SWITCH

AUDIO

WARNING

BUZZER

TO 12 VOLT SOURCE
