Mercury 305 CID - Water Separating Fuel Filter

FUEL DELIVERY SYSTEMS AND FUEL PUMPS - 5A-790-823225--1 1096
Water Separating Fuel Filter
NOTICE
Refer to “Precautions,” in this section,
BEFORE proceeding.
The water separating fuel filter is standard on all en-
gines.
The fuel filter consists of the fuel filter base and fil-
ter element.
72678
b
c
a

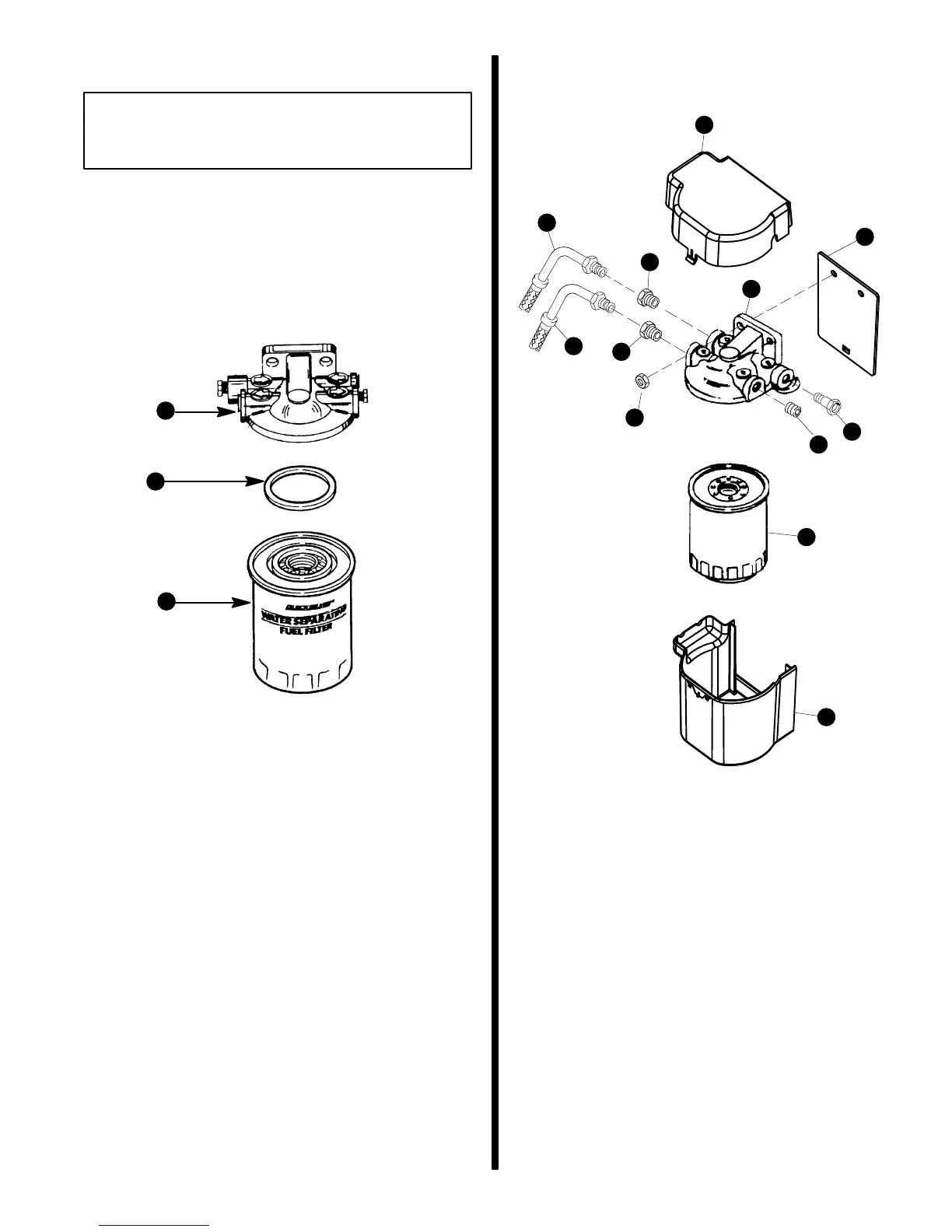

Carburetor and VST Equipped Engines
a - Fuel Filter Mounting Bracket
b - Filter Element
c - Sealing Ring
b
c
d
e
f
g
h
i
a
J
k
l
Cool Fuel System Water Separating Fuel Filter
a - Top Cover
b - Insulator Plate
c - Fuel Outlet To Throttle Body Or Fuel Rail
d - Brass Fitting
e - Fuel Return
f - Brass Fitting
g - Fuel Filter Mounting Bracket
h - Nut
i - Inlet Fuel Fitting
j - Plug
k - Water Separating Fuel Filter
l - Bottom Cover
