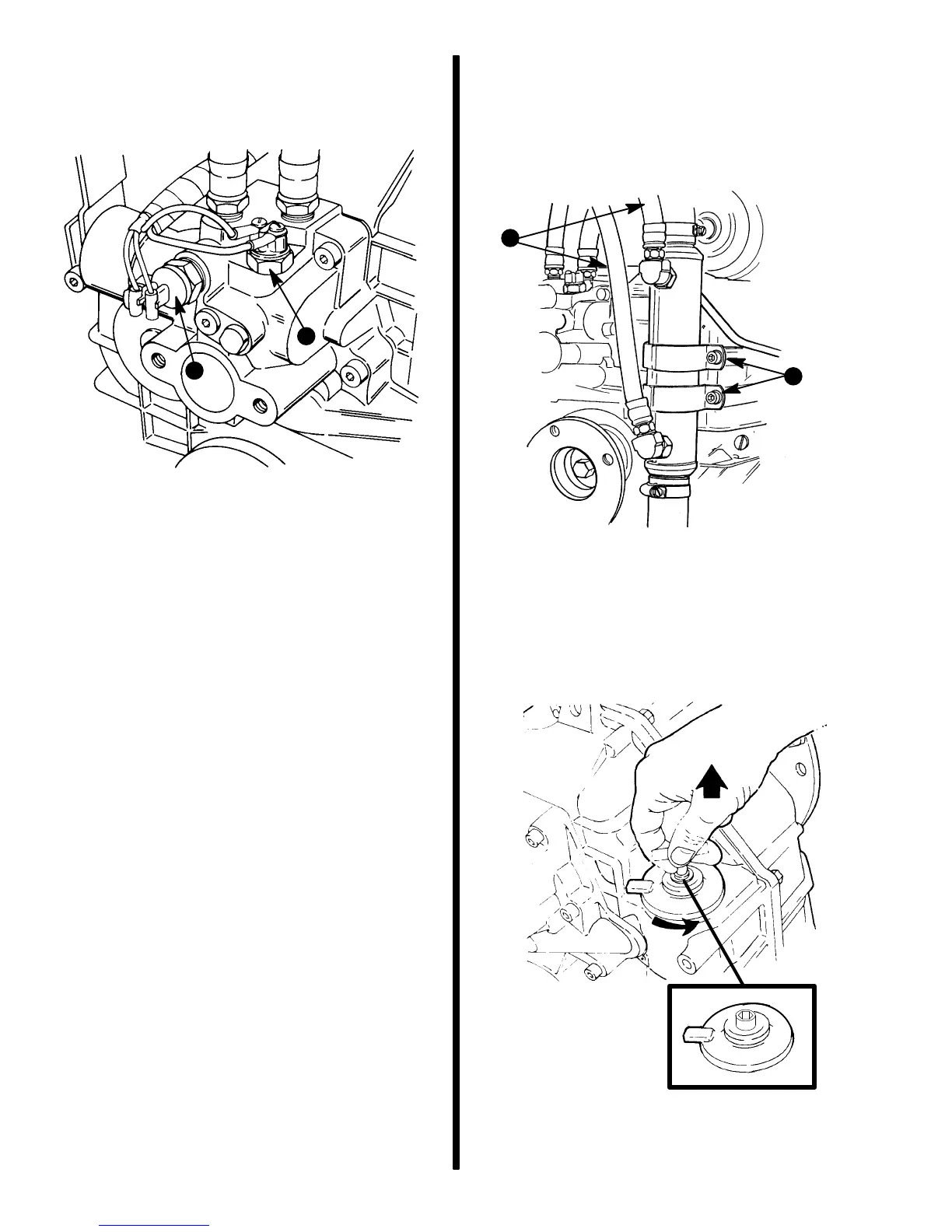

4. Connect wires to neutral safety switch and to au-
dio warning temperature switch. Coat connec-
tions on neutral safety switch with Quicksilver
Liquid Neoprene.
50686
b
a
a - Neutral Safety Switch
b - Audio Warning Temperature Switch
Transmission Repair
Disassembly
IMPORTANT: Ensure work area is clean before
disassembly is started. Be sure to use lint free
cloths when cleaning and/or handling parts.
TRANSMISSION FLUID COOLER
1. Disconnect transmission fluid hoses from cooler
and remove clamps that secure cooler to hous-
ing.
72721
b
a
a - Transmission Fluid Hoses
b - Clamps
OIL FILTER AND DIPSTICK
1. Remove oil filter from housing by turning T-han-
dle or allen head screw (counterclockwise) and
pulling at the same time.
27666
a - Set Screw (Later Models)
To Next Page
