ELECTRONIC FUEL INJECTION (MULTI-PORT AND THROTTLE BODY) - 5E-3990-823225--1 1096

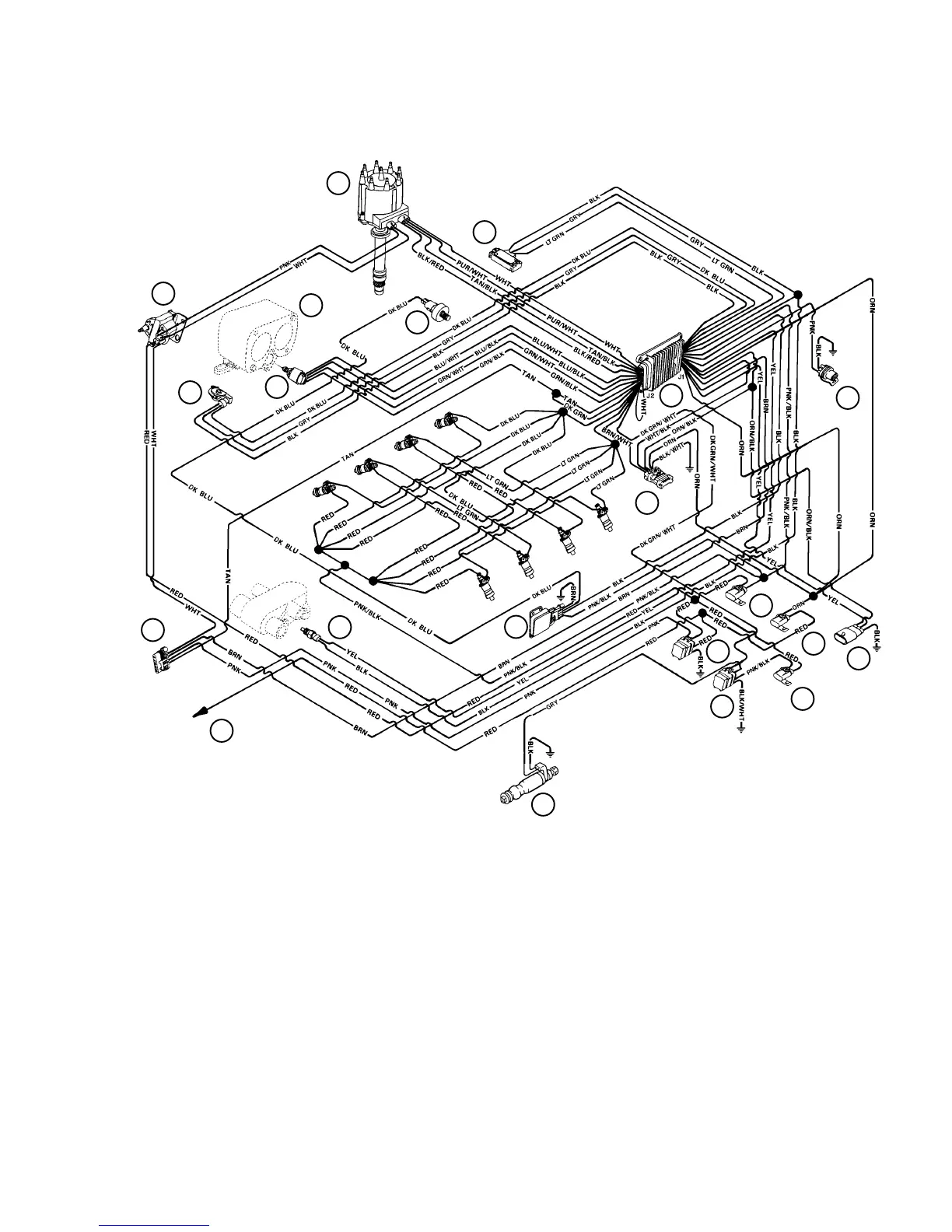

MCM 350 MPI Gen+ Bravo With Cool Fuel System
74182
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Note: All BLACK Wires With A Ground Symbol Are Interconnected Within The EFI System Harness.
1 - Electric Fuel Pump
2 - Throttle Body
3 - Distributor
4 - Coil
5 - Electronic Spark Control (KS) Module
6 - Data Link Connector (DLC)
7 - Manifold Absolute Pressure (MAP) Sensor
8 - Knock Sensor
9 - Idle Air Control (IAC)
10- Throttle Position (TP) Sensor
11- Engine Coolant Temperature (ECT) Sensor
12- Electronic Control Module (ECM)
13- Fuel Pump Relay
14- Ignition/System Relay
15- Fuse (15 Amp) Fuel Pump
16- Fuse (15 Amp) ECM/DLC/Battery
17- Fuse (10 Amp) ECM/Injector/Ignition/Knock Module
18- Harness Connector To Starting/Charging Harness
19- Harness Connector To Lanyard Stop Switch (Optional)
20- Harness Connector For Dual Engine Data Link Cable
21- Positive (+) Power Wire To Engine Circuit Breaker
