HURTH DOWN ANGLE TRANSMISSION - 8C-1190-823225--1 1096

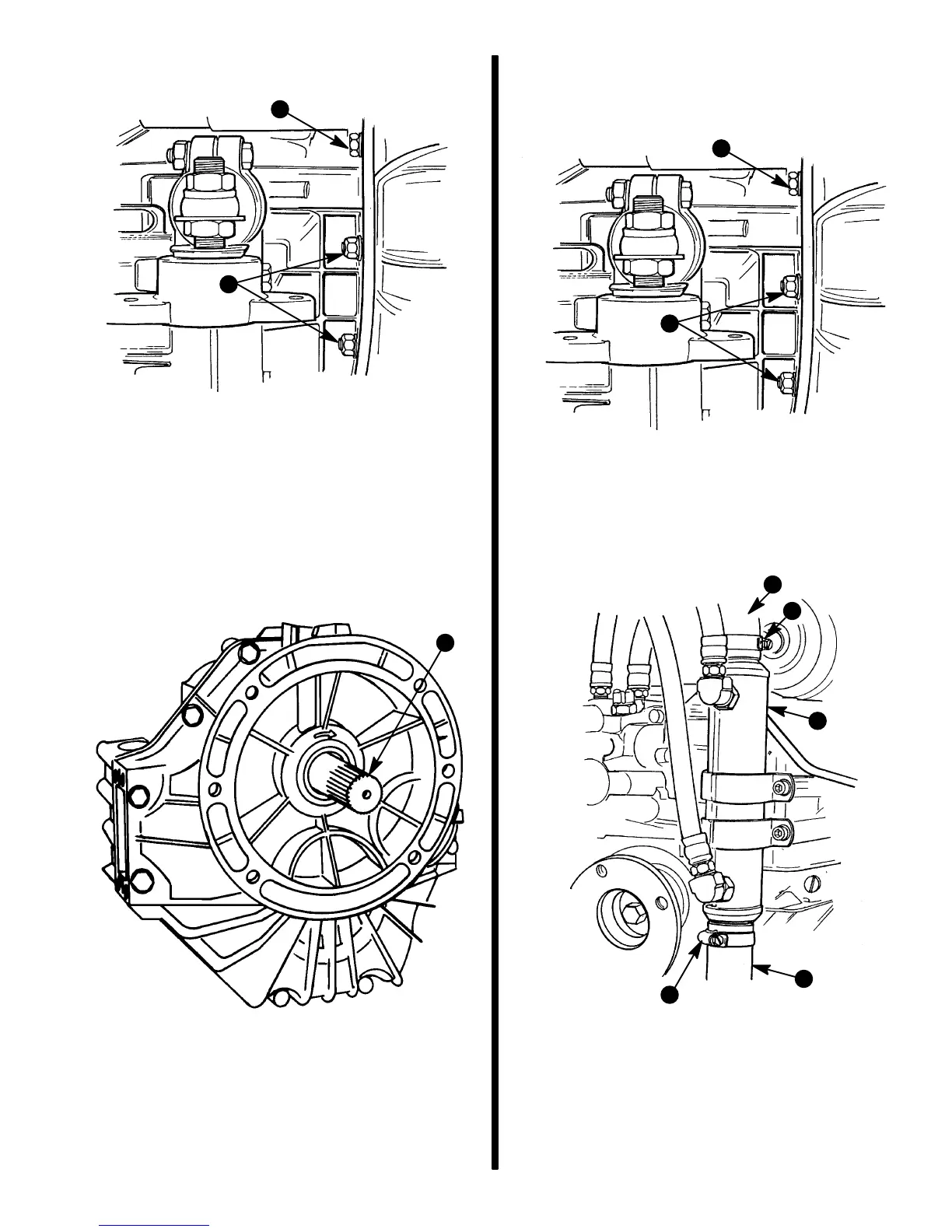

3. Remove bolts and locknuts and remove trans-
mission.
72720
b
a
a - Bolts (2), One On Each Side
b - Locknuts (4), Two On Each Side
Transmission Installation
1. Coat splines on input shaft with Quicksilver En-
gine Coupler Spline Grease.
71044
a
a - Input Shaft
2. Install transmission on flywheel housing and se-
cure with hardware shown. Torque fasteners to
50 lb. ft. (68 N·m).
72720
b
a
a - Bolts (2), One On Each Side
b - Locknuts (4), Two On Each Side
3. Connect seawater hoses to transmission fluid
cooler and tighten hose clamps securely.
72721
a
b
a
c
c
a - Seawater Hoses
b - Transmission Fluid Cooler
c - Clamps
To Next Page
