SEAWATER COOLING MODELS - 6A-590-823225--1 1096
2. Remove outlet hose. Drain into a suitable con-
tainer.
72643
b
a

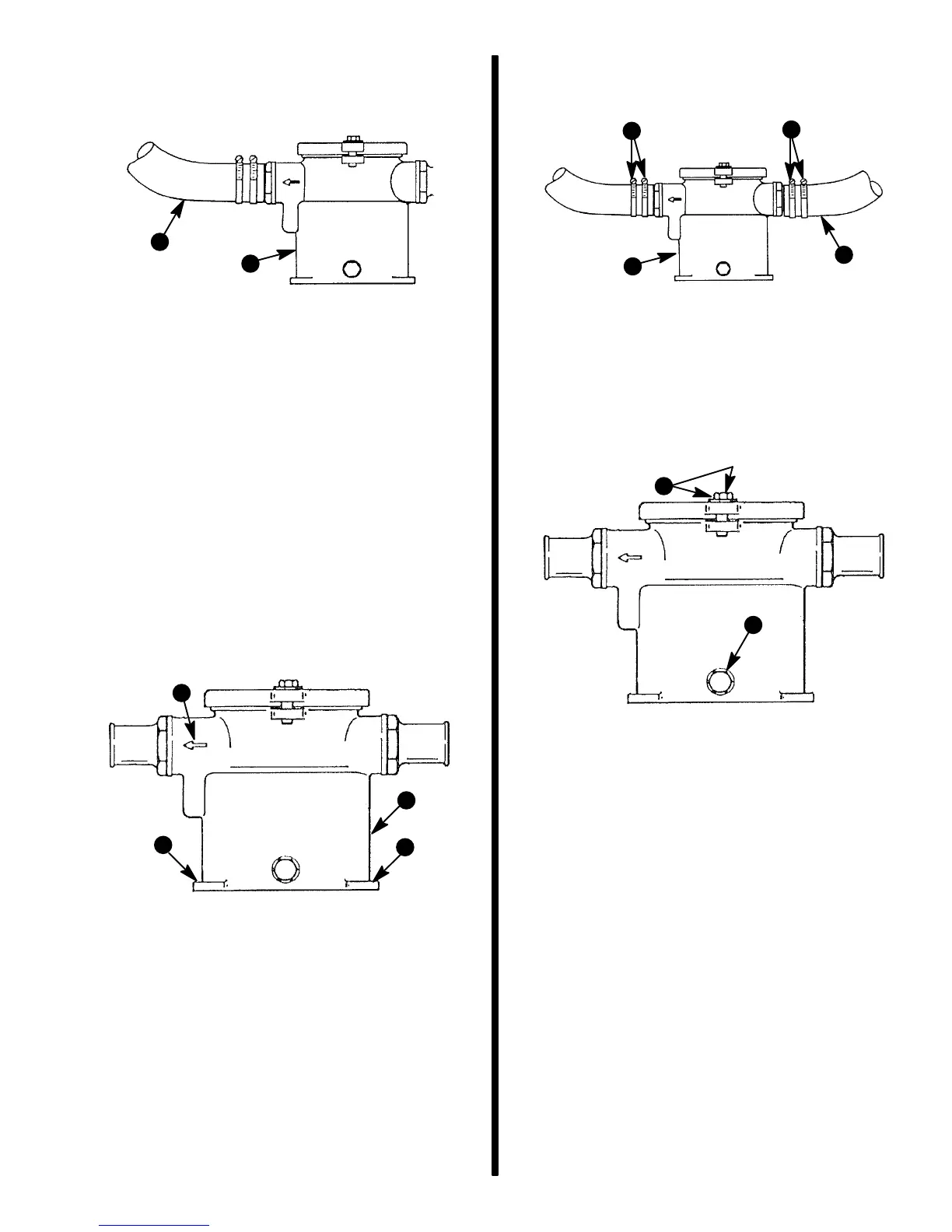

a - Seawater Outlet Hose
b - Seawater Strainer
3. Remove mounting bolts. Remove strainer.
Installation
IMPORTANT: Mount seawater strainer in a vibra-
tion-free location. Never mount it on the engine
or transmission. Hoses must not be kinked or al-
lowed to come in contact with hot or moving en-
gine or transmission parts.
1. Mount seawater strainer (arrow must point to-
ward seawater pump).
Tighten mounting bolts securely.
72644
b
c
a
c
a - Seawater Strainer
b - Arrow
c - Mounting Bolt Hole Location (Bolts Not Shown)
2. Install inlet and outlet hoses. Use two hose
clamps on each hose connection. Tighten
clamps securely.
72645
b
c
a
c
a - Seawater Inlet Hose
b - Seawater Strainer
c - Double Hose Clamps
3. Check drain plug and lens cover bolts. Tighten
securely. Do not over-tighten cover bolts or cover
may warp and leak water into boat.
72644
b
a
a - Drain Plug
b - Lens Cover Bolt (2, One Hidden in This View)
