Mercury 305 CID - MIE Inboard Models

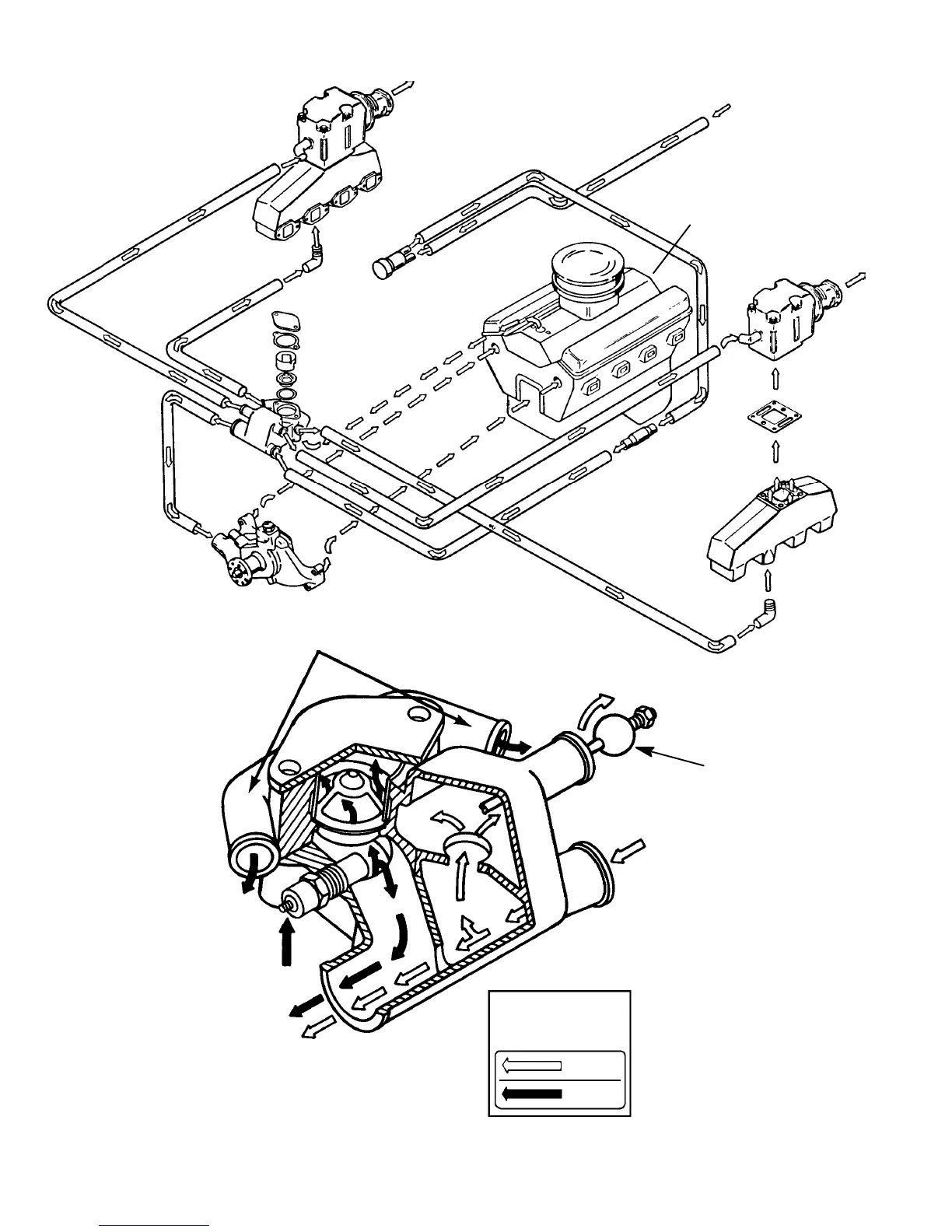

6A-24 - SEAWATER COOLING MODELS 90-823225--1 1096
MIE Inboard Models
OVERBOARD
THERMOSTAT
COVER
THERMOSTAT
HOUSING
ENGINE
CIRCULATING
PUMP
ENGINE BLOCK
INTAKE MANIFOLD
AND CYLINDER HEAD ASSY
EXHAUST
ELBOW
RESTRICTOR
EXHAUST
MANIFOLD
TRANSMISSION
FLUID
COOLER
TO EXHAUST
MANIFOLDS
TO EXHAUST
ELBOW
FROM
ENGINE
TO ENGINE
CIRCULATING
PUMP
FROM WATER INLET
(VIA FLUID COOLER)
THERMOSTAT
LEGEND
COLD
WARM
22380
SEAWATER
INLET
SEAWATER
PICKUP PUMP
24728
NOTE: Thermostat housing
check-balls will not be present
on later models.
(NOTE)
