4D-8 - INSTRUMENTATION 90-823225--1 1096

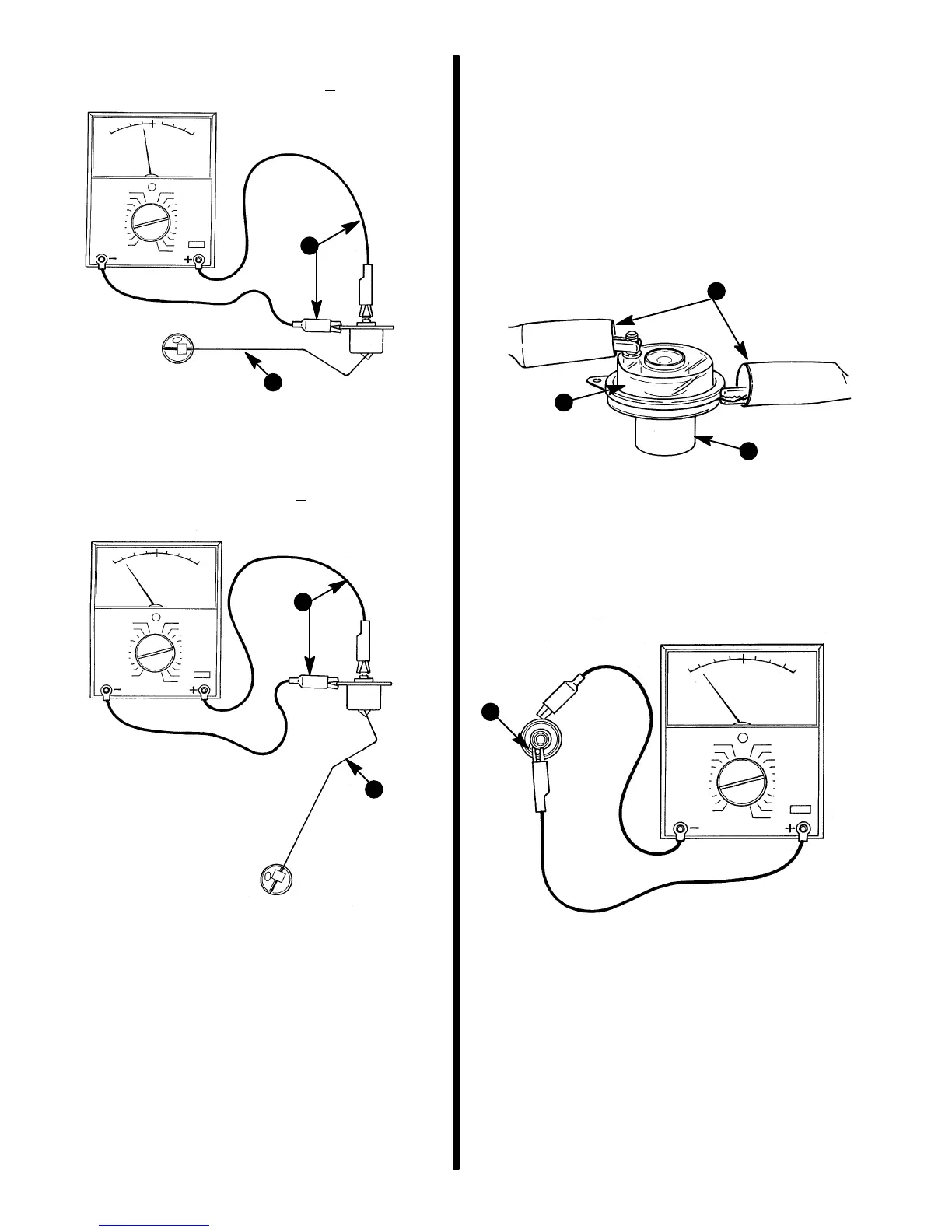

4. With float arm in FULL position (arm horizontal),
ohmmeter should read 30 ohms (+
5 ohms).
72755
b
a
a - Ohmmeter Leads
b - Vertical Float Arm
5. With float arm in EMPTY position (arm vertical)
meter should read 240 ohms (+
5 ohms). Sender
is defective if not within specifications.
72756
b
a
a - Ohmmeter Leads
b - Vertical Float Arm
CAPSULE TYPE
Testing
1. Disconnect wire from terminal on fuel tank
capsule.
2. Remove two screws and remove capsule
assembly.
3. Place a magnet under fuel capsule.
4. Connect ohmmeter between fuel capsule termi-
nal and metal portion of capsule housing.
72757
b
c
a
a - Ohmmeter Leads
b - Capsule Assembly
c - Magnet
5. Turn magnet counterclockwise until fuel capsule
indicator reads EMPTY. Ohmmeter should read
240 ohms (+
5 ohms).
72758
a
a - Capsule Reading Empty
