MIE MODELS - VELVET DRIVE TRANSMISSIONS - 2E-790-823325--1 1096
3. Connect instrument harness to engine harness
and secure with clamp.
c
a
b

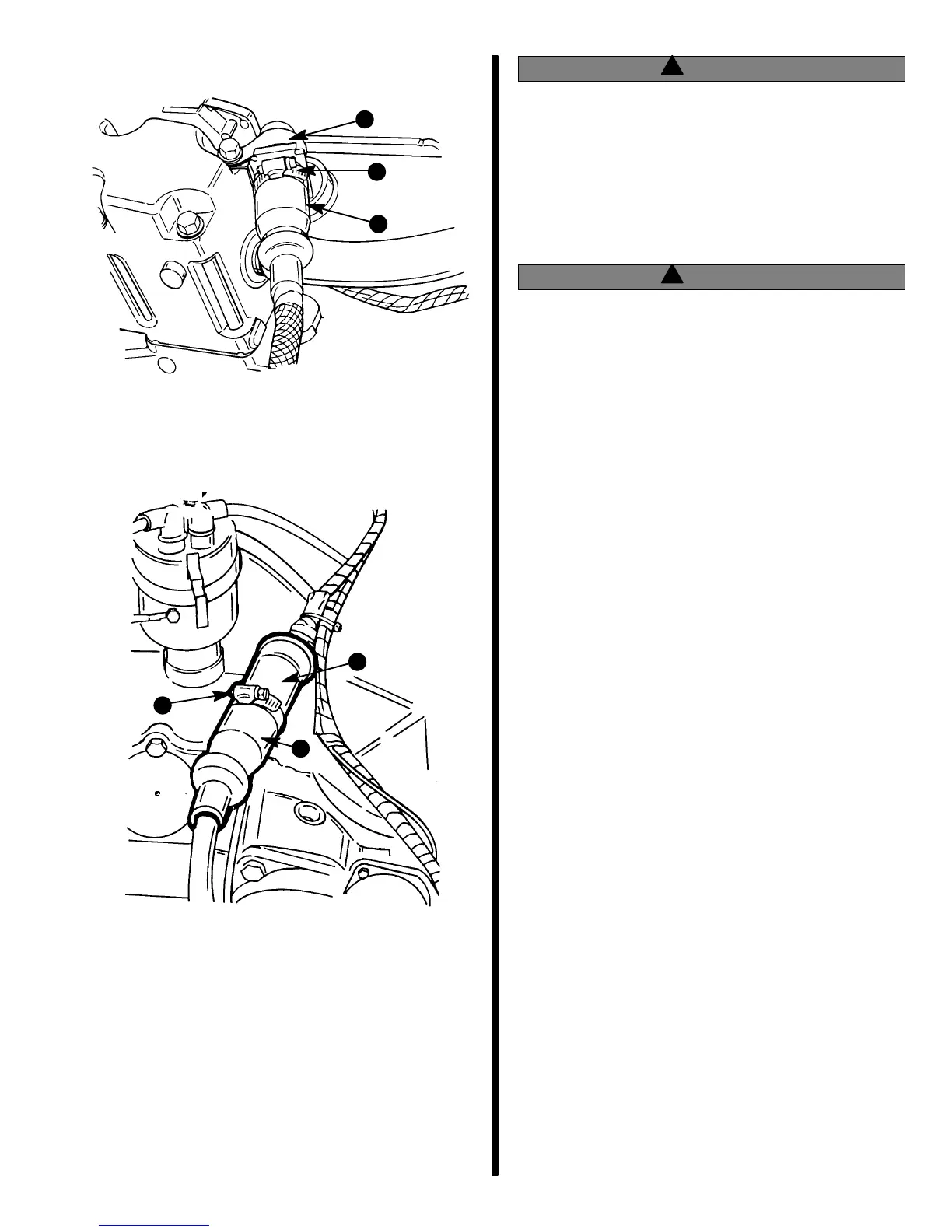

a - Engine Wiring Harness Receptacle Bracket
b - Instrument Wiring Harness Plug
c - Hose Clamp
Harness Connection - 5.7L
50921
72600
a - Engine Wiring Harness Connector
b - Instrumentation Wiring Harness Plug
c - Hose Clamp
c
a
b
Harness Connection - 5.7L Competition
Ski and 350 Magnum Tournament Ski
!
WARNING
Be careful when working on fuel system. Gaso-
line is extremely flammable and highly explosive
under certain conditions. Do not smoke or allow
spark or open flame in area. Wipe up any spilled
fuel immediately.
Fuel Supply Connections
!
WARNING
Avoid gasoline fire or explosion. Improper instal-
lation of brass fittings or plugs into fuel pump or
fuel filter base can crack casting and/or cause a
fuel leak.
• Apply #592 Loctite Pipe Sealant with Teflon to
threads of brass fitting or plug. DO NOT USE
TEFLON TAPE.
• Thread brass fitting or plug into fuel pump or
fuel filter base until finger tight.
• Tighten fitting or plug an additional 1-3/4 to
2-1/4 turns using a wrench. DO NOT
OVER-TIGHTEN.
• Install fuel line. To prevent over-tightening,
hold brass fitting with suitable wrench and
tighten fuel line connectors securely.
• Check for fuel leaks.
4. Connect fuel line from fuel tank(s) to engine.
Make certain connection is secure. Check for
leaks.
5. Connect exhaust system tubes and hoses using
at least two hose clamps at each connection.
Tighten hose clamps securely.
