1B-20 - MAINTENANCE 90-823225--1 1096
Maintaining Transmission
Fluid Level
IMPORTANT: Be sure to push dipstick all the way
down into dipstick tube when checking fluid
level.
1. Remove dipstick to check transmission fluid lev-
el. Fluid level may be over the full mark because
fluid from the cooler and lines has drained back
into the transmission. If fluid level is low, add the
specified fluid through the dipstick hole until full
mark on dipstick is reached. DO NOT OVER-
FILL.

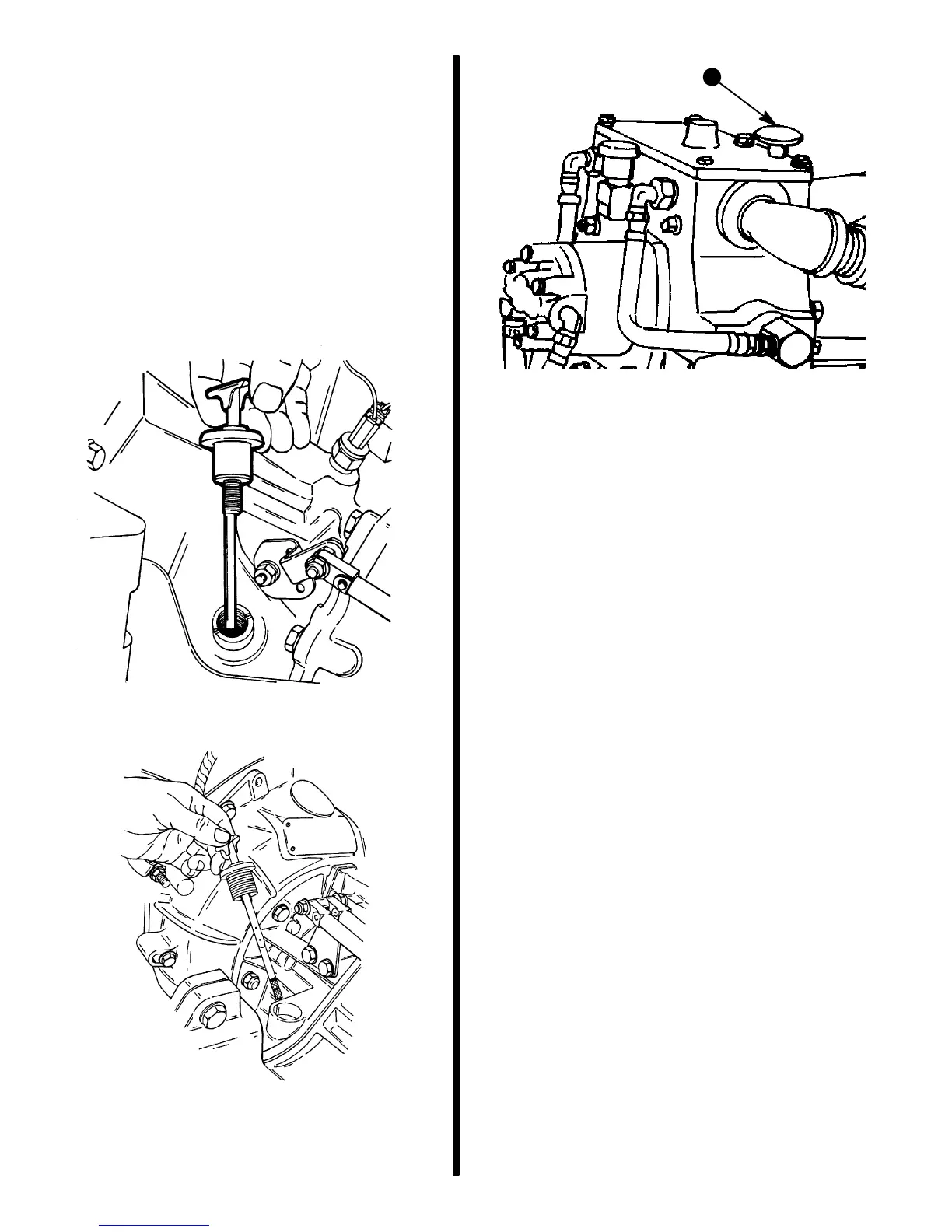

72526
Velvet Drive
72527
Hurth
75192
a
Walter V-Drive
IMPORTANT: To accurately check fluid level, en-
gine MUST BE run at 1500 RPM for 2 minutes im-
mediately prior to checking level.
2. Start engine and run at 1500 RPM for 2 minutes
to fill all circuits, lines, and cooler.
3. Stop engine and quickly check level before fluid
drains back into transmission. Add fluid if neces-
sary.
4. If fluid level is extremely low, check transmission
case, cooler, and hoses for leaks.
IMPORTANT: Velvet Drive transmission - use 10
wt. tractor hydraulic fluid meeting the C-3/TO-2
specification (preferably Mobil 423, Chevron, or
Citgo).
Hurth transmission - use Dexron II or Dexron II
automatic transmission fluid (ATF).
Walter V-Drive - SAE 30 Heavy Duty Motor Oil,
Exxon Spartan EP-68 Gear Oil, APG-80 Gear Oil
