POWER STEERING - 9A-1390-823225--1 1096
IMPORTANT: A two-way valve is required on the
reservoir cap for cold weather operation below
40°F (4°C).
3. If required, install two-way valve in reservoir cap
by removing vent from cover and replacing it with
a two-way check valve.

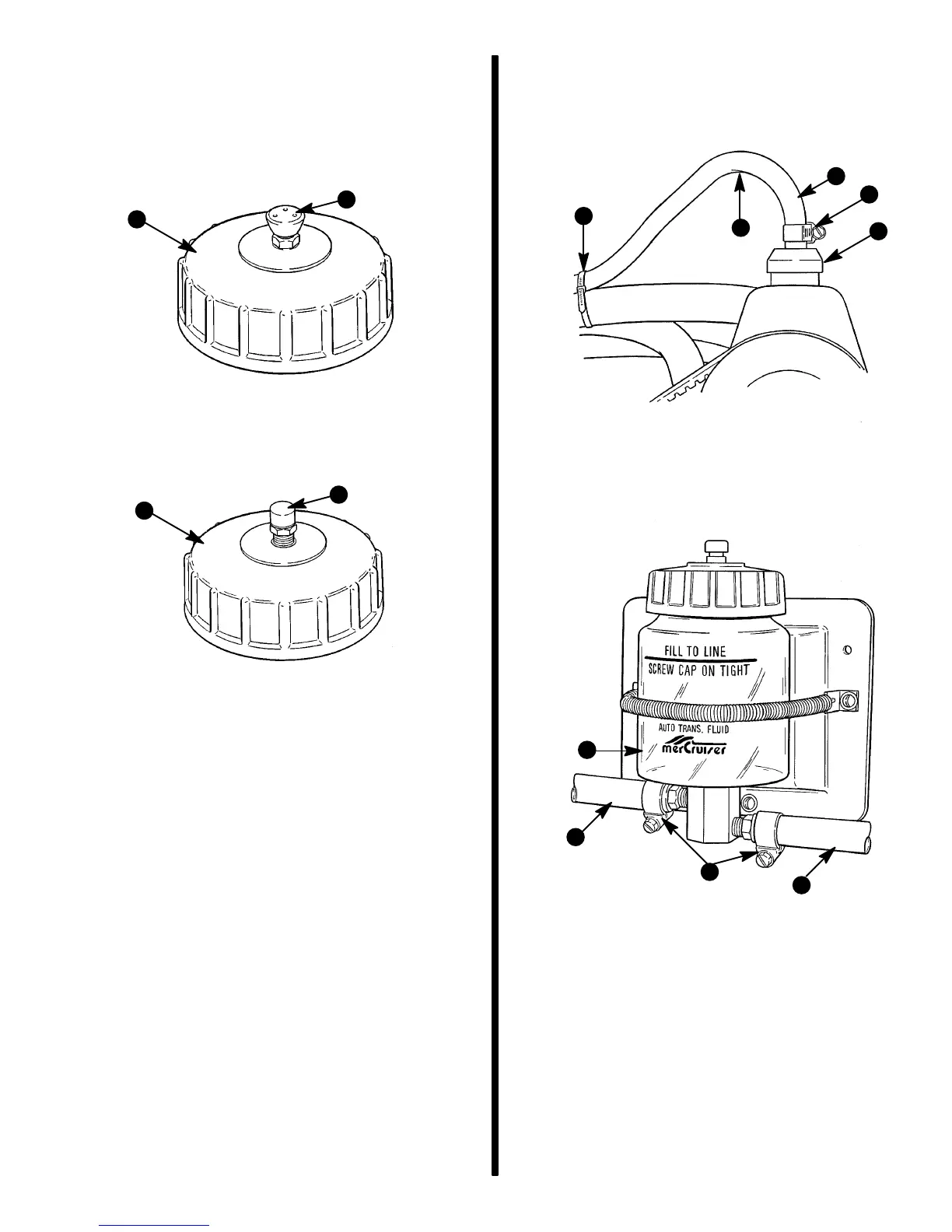

72855
b
a
a - Reservoir Cap
b - Vent
72856
b
a
a - Reservoir Cap
b - Two-Way Valve (Installed)
4. Cut two hoses (from bulk hose supplied) of suffi-
cient length to extend from bottom fittings on res-
ervoir to fill caps on power steering pumps. Allow
extra hose for routing.
IMPORTANT: When routing and installing hoses
in the following steps, be sure that the bend ra-
dius in the hose is sufficient to eliminate a load
being placed on power steering pump fill cap.
5. Connect hoses, that were just cut, to reservoir
and power steering pump caps (from kit). Secure
with hose clamps. Tighten securely.
6. Secure hoses with Sta-Straps to keep them be-
low reservoir fluid level line and away from heat
and moving parts.
72857
b
d
a
c
e
a - Power Steering Pump Cap (Port and Starboard)
b - Hose To Reservoir
c - Hose Clamp
d - Sta-Straps
e - Bend Radius (Port and Starboard)
72858
b
a
c
b
a - Reservoir
b - Hoses From Pumps
c - Hose Clamps
To Next Page
