MCM MODELS- BRAVO MODELS WITH DRIVE SHAFT EXTENSIONS - 2D-1190-823225--1 1096

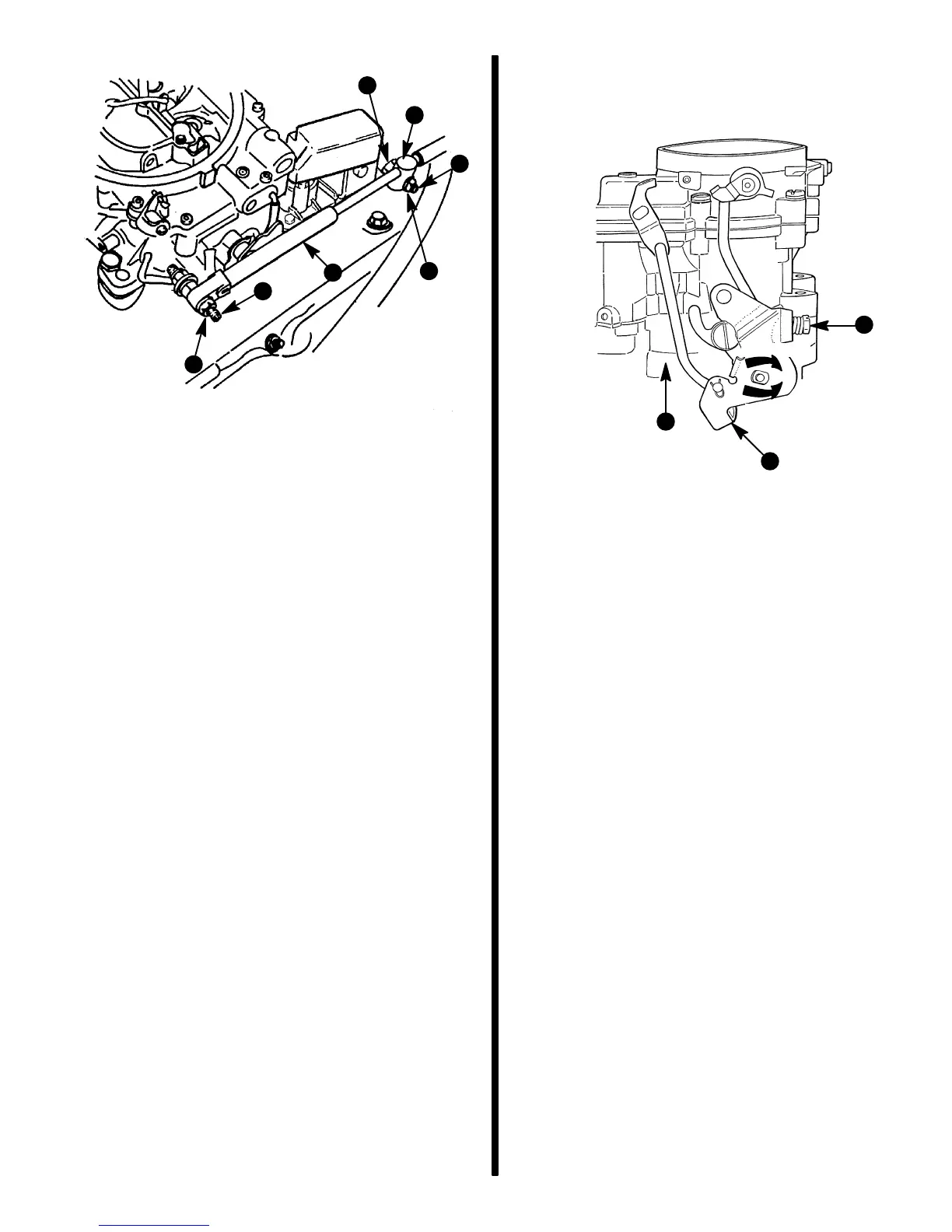

4 Barrel Carburetor
72014
a - Cable End Guide
b - Attaching Hardware (DO NOT Over-Tighten)
c - Cable Barrel
d - Anchor Studs
b
d
a
c
d
b
b
d. Place remote control throttle lever in the
wide-open-throttle (W.O.T.) position. Check
to ensure that throttle shutters (valves) are
completely open and throttle shaft lever con-
tacts carburetor body casting.
e. Return remote control throttle lever to idle po-
sition and check to ensure that throttle lever
contacts idle speed adjustment screw.
72283
a - Throttle Lever Tang
b - Carburetor Body
c - Idle RPM Adjustment Screw
Mercarb 2 Barrel Carburetor
b
c
a
W.O.T.
IDLE
