STARTING SYSTEM - 4A-2190-823225--1 1096

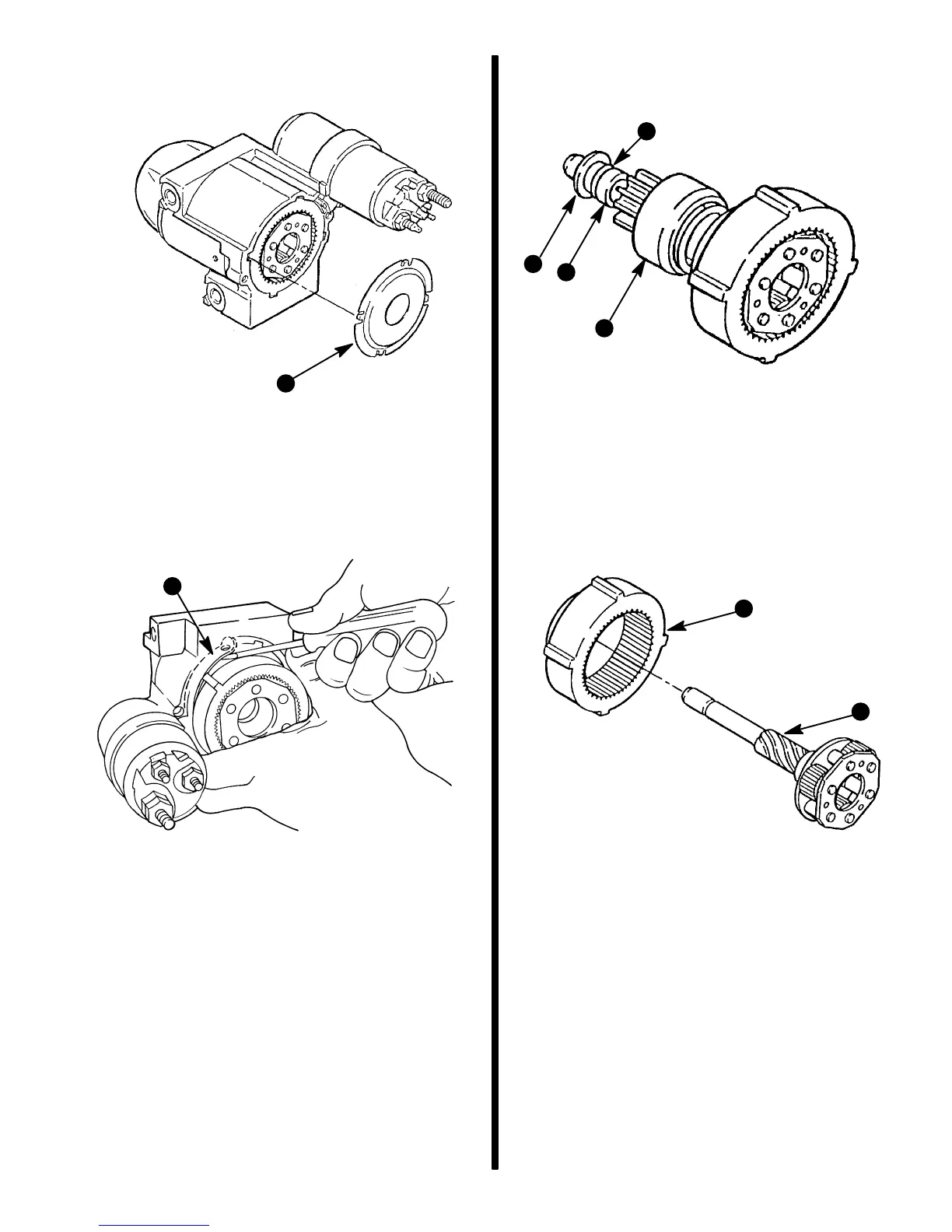

5. Remove shield.

72065

a

a - Shield

6. Use a screwdriver, as shown, to disengage shift

lever from drive.

72064

a

a - Shift Lever

7. Remove thrust collar, retaining ring and collar.

Remove drive.

72067

b

c

d

a

a - Thrust Collar

b - Retaining Ring

c - Collar

d - Drive

8. Remove gear from shaft assembly.

72066

b

a

a - Gear

b - Shaft Assembly
