INSTALLATION

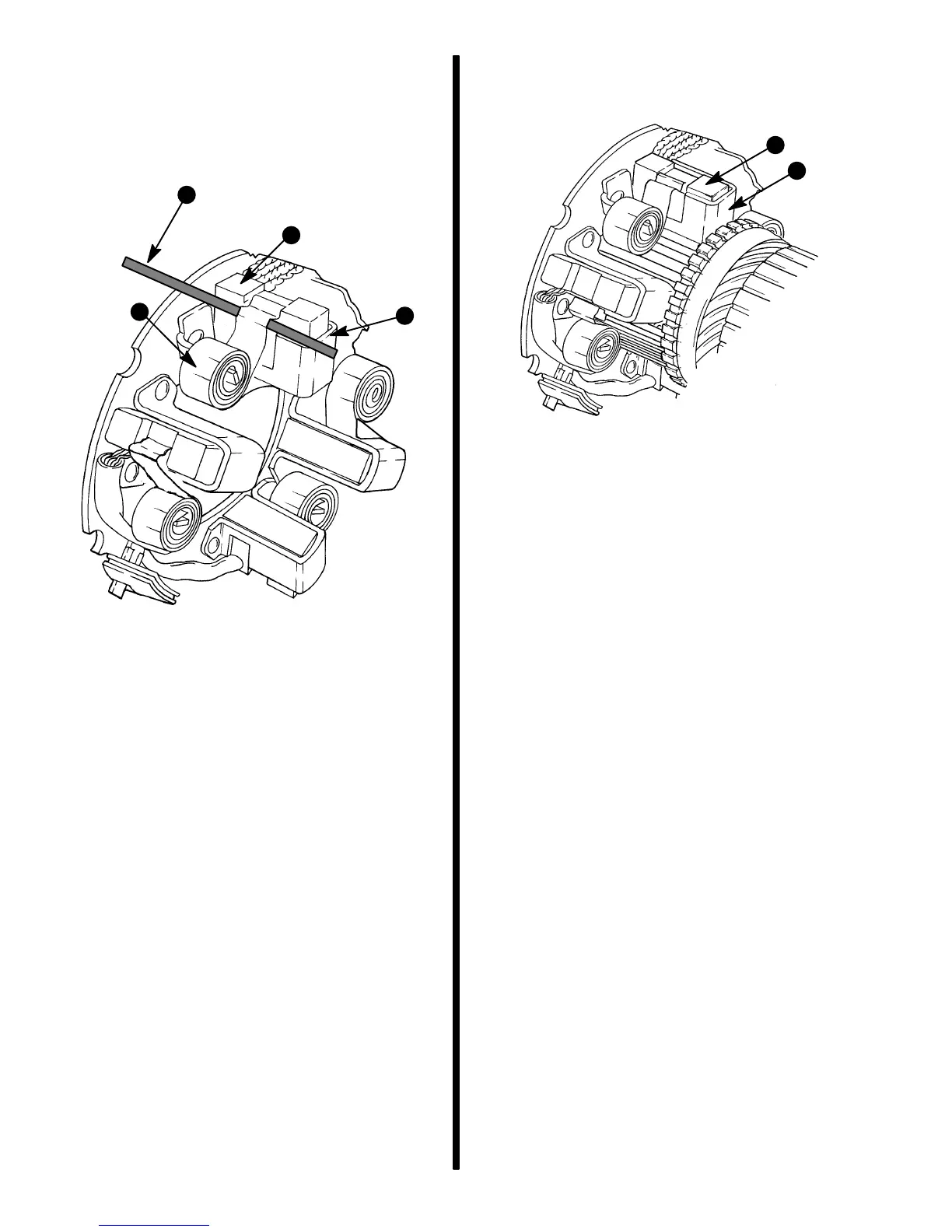

1. Push each brush up into its guide, use a 3 inch
piece of coat hanger wire or similar stiff wire to
retain the spring while installing armature, as
shown.
c
a
b
d
a - Brush
b - Guide
c - Brush Spring
d - 3 Inch Piece Of Coat Hanger Or Stiff Wire
2. Place brush holder on armature and remove
pieces of wires from brush holder.
72069
b
a
a - Brush Holder
b - Brush
