ELECTRONIC FUEL INJECTION (MULTI-PORT AND THROTTLE BODY) - 5E-17990-823225--1 1096
Fuel Pump Relay
NOTICE
Refer to “Service Precautions,” in “Repair
Procedures,” BEFORE proceeding.
REMOVAL

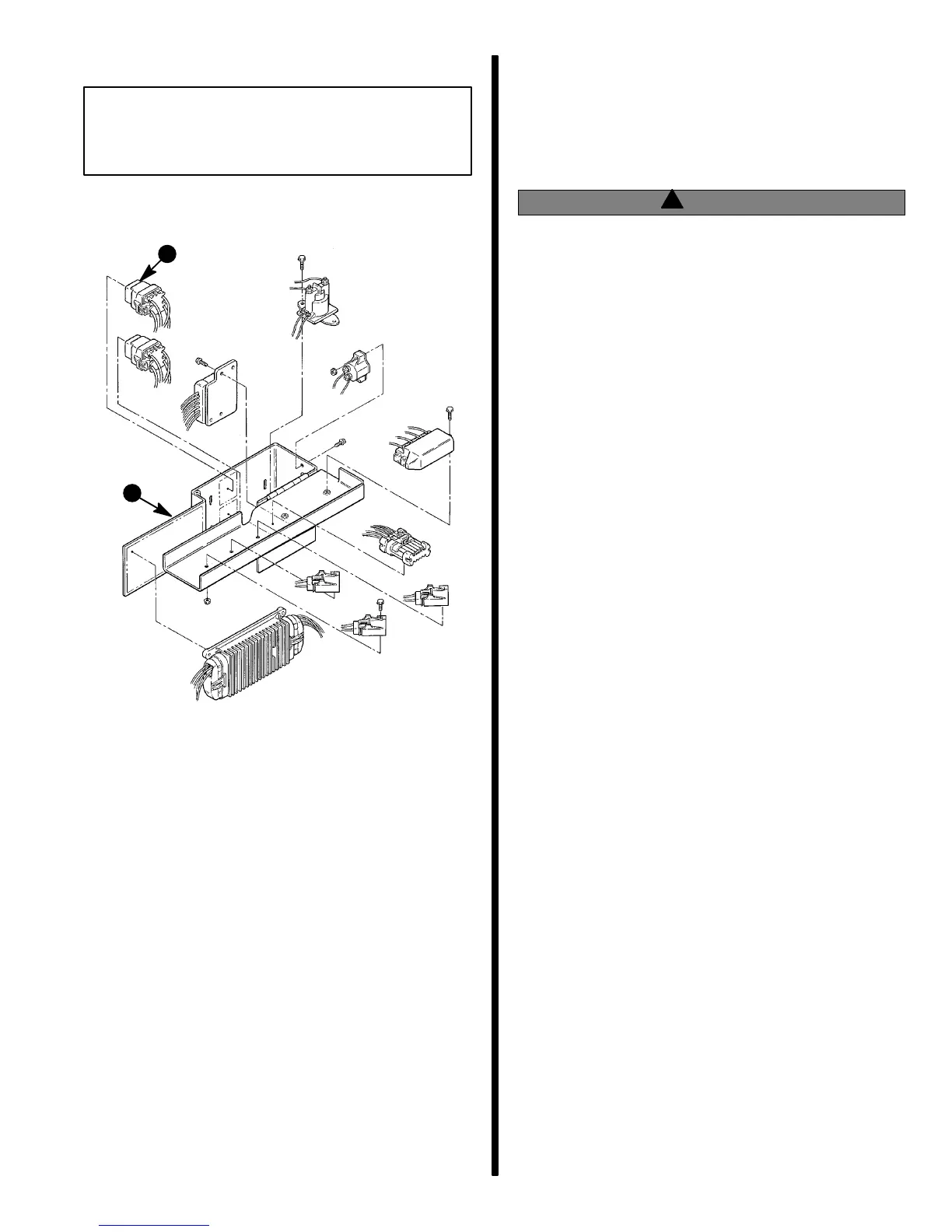

1. Detach fuel pump relay from bracket.
72801
b
a
All Multi-Port Engines (Except Black Scorpion)
a - Fuel Pump Relay
b - Bracket
2. Disconnect electrical connector and remove fuel
pump relay.
IMPORTANT: The fuel pump relay is an electrical
component. DO NOT soak in any liquid cleaner or
solvent; damage may result.
INSTALLATION
1. Insert electrical connector into fuel pump relay.
2. Attach fuel pump relay to bracket.
Ignition Control (IC) System
Components
Precautions
!
WARNING
When performing the following procedures, be
sure to observe the following precautions to
avoid damage to equipment or personal injury:
DO NOT touch or disconnect any ignition system
parts while the engine is running.
DO NOT reverse battery cable connections. Sys-
tem is negative (–) ground.
DO NOT disconnect battery cables while engine
is running.
When it is necessary to move any of the wiring,
whether to lift wires away from their harnesses or
move harnesses to reach components, take care
that all wiring is replaced in its original position
and all harnesses are routed correctly. Electrical
problems can result from wiring or harnesses be-
coming loose and moving from their original
positions or from being re-routed.
