4.6.15 DeviceNet interface

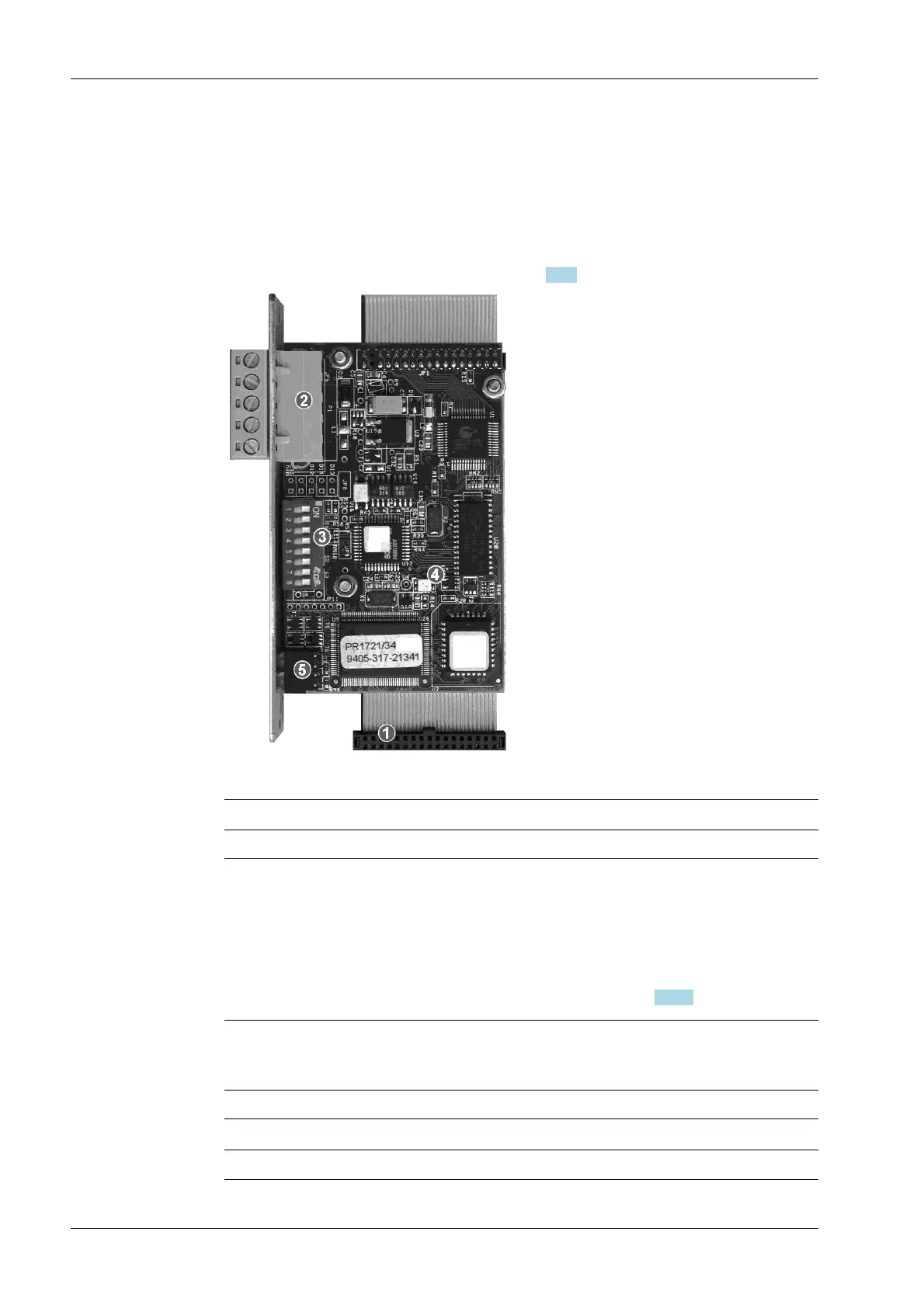

The DeviceNet interface card has the type designation PR 1721/34.
The fieldbus card contains all functionalities to make a complete DeviceNet slave with a
CAN controller and transmission speeds up to 500 kbit/s.
The DeviceNet connection is established by 5-pin terminal ②.
The card is inserted into "Slot 4" ① (see Chapter 4.6.1).
Technical data
Description Data
Transfer rate 125, 250 and 500 kbit/s
Protocol DeviceNet Master Slave
- Polling procedure (polled IO)
- CRC error recognition according to IEC 62026 (EN 50325)
- Max. 64 station nodes
- Data width max. 512 byte "input & output"
- Watchdog Timer ④ (see Chapter
4.6.12)
Configuration EDS file
"sag_5410.eds"
MAC-ID (1…62)
Potential isolation Yes, optocoupler and DC/DC converter
Bus termination
120 Ω at the cable ends
Bus load 33 mA @ U
DC
= 24 V
X3 Process Indicator PR 5410 4 Device installation
EN-106 Minebea Intec
