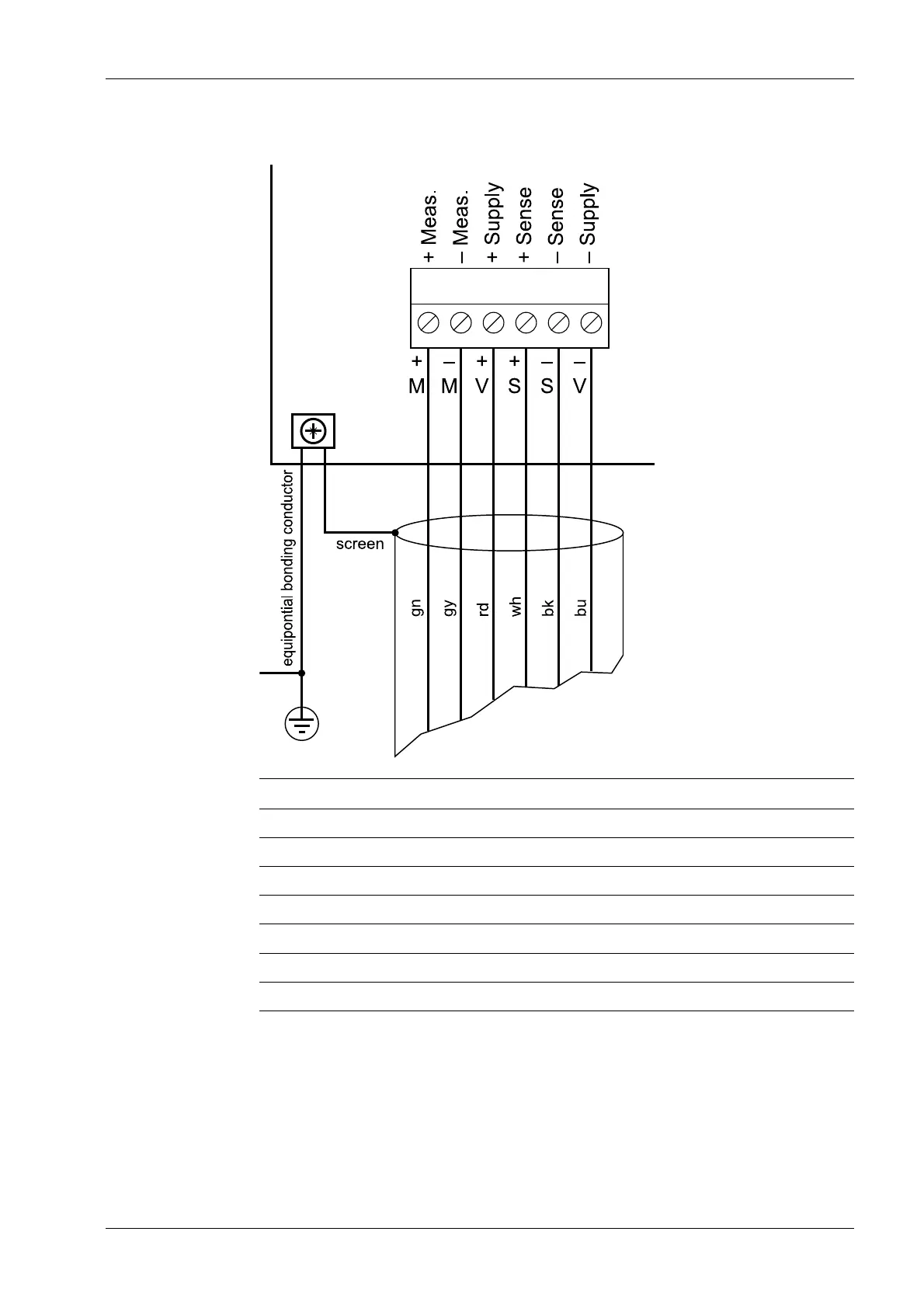

4.5.3 Connecting a load cell with a 6-wire cable
Terminal Connection/color code Description
M+ + Meas./gn + Measuring voltage (load cell output)
M- - Meas./gy - Measuring voltage (load cell output)
S+ + Sense/wh + Sense voltage
S- - Sense/bk - Sense voltage
V+ + Supply/rd + Supply voltage
V- - Supply/bu - Supply voltage
Housing Ground (GND) Screen (ground)
4 Device installation X3 Process Indicator PR 5410
Minebea Intec EN-47
