4.6.7.2 Input
The Enable input for PR 5510/08 (PIN 25) can control the 23 outputs as DATA_IN.
As an output, data is "follow/hold/tristate" and its signal can be configured 5 V (TTL)/24 V
and active-high/active-low.
It is applied to pin 25 (DATA_IN) of the 26-pin connector and is effective only with
switches S101-1 = OFF and S101-2 = ON.
The switch settings can be found in the table in Chapter 4.6.9.
4.6.8 BCD output (open collector)

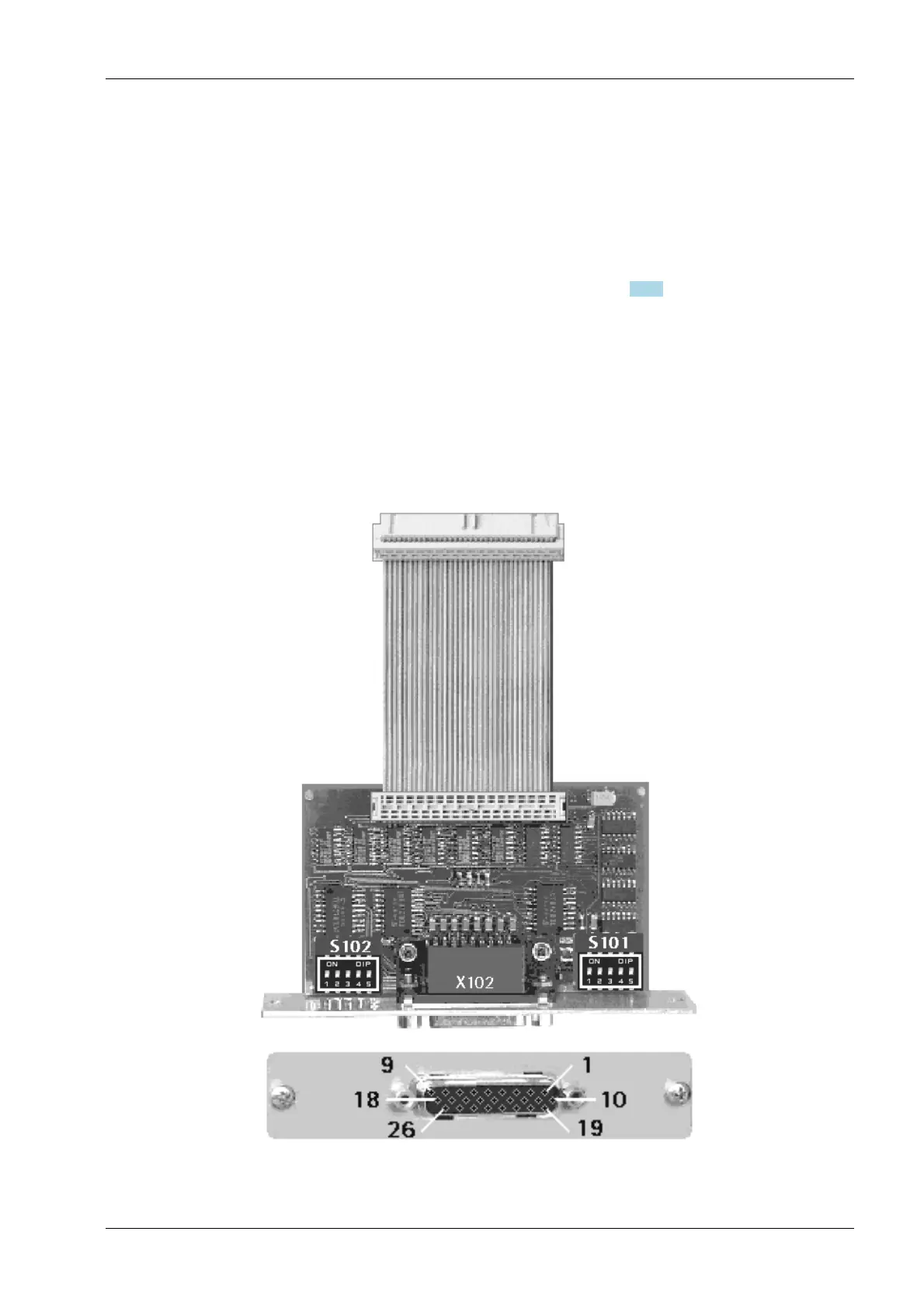

This interface card has the type designation PR 5510/09.
A PR 5510/09 card can be plugged into "Slot 2" only.
The plug-in card is used for BCD-coded output of a 5-decade weight value.
Cyclical output of the weight value with 4-bit (plus or minus sign, stability, error). The
value is intrinsically consistent and can be output continuously or the digital input
"DATA_IN" control can be used to freeze (hold) the value.
Before installing the card, set switches "S101" and "S102".
4 Device installation X3 Process Indicator PR 5410
Minebea Intec EN-85
