7.15.7 xBPI calibration with user specified weight
Requirements:
- The xBPI protocol has been selected (see Chapter 7.15.2).
- The "xBPI-scale" weighing point has been selected (see Chapter 7.15.3).
- The platform has been set up (see Chapter
7.15.4).
Ticks indicate the progress.
An error message is displayed if communication with the xBPI scale is not
possible!

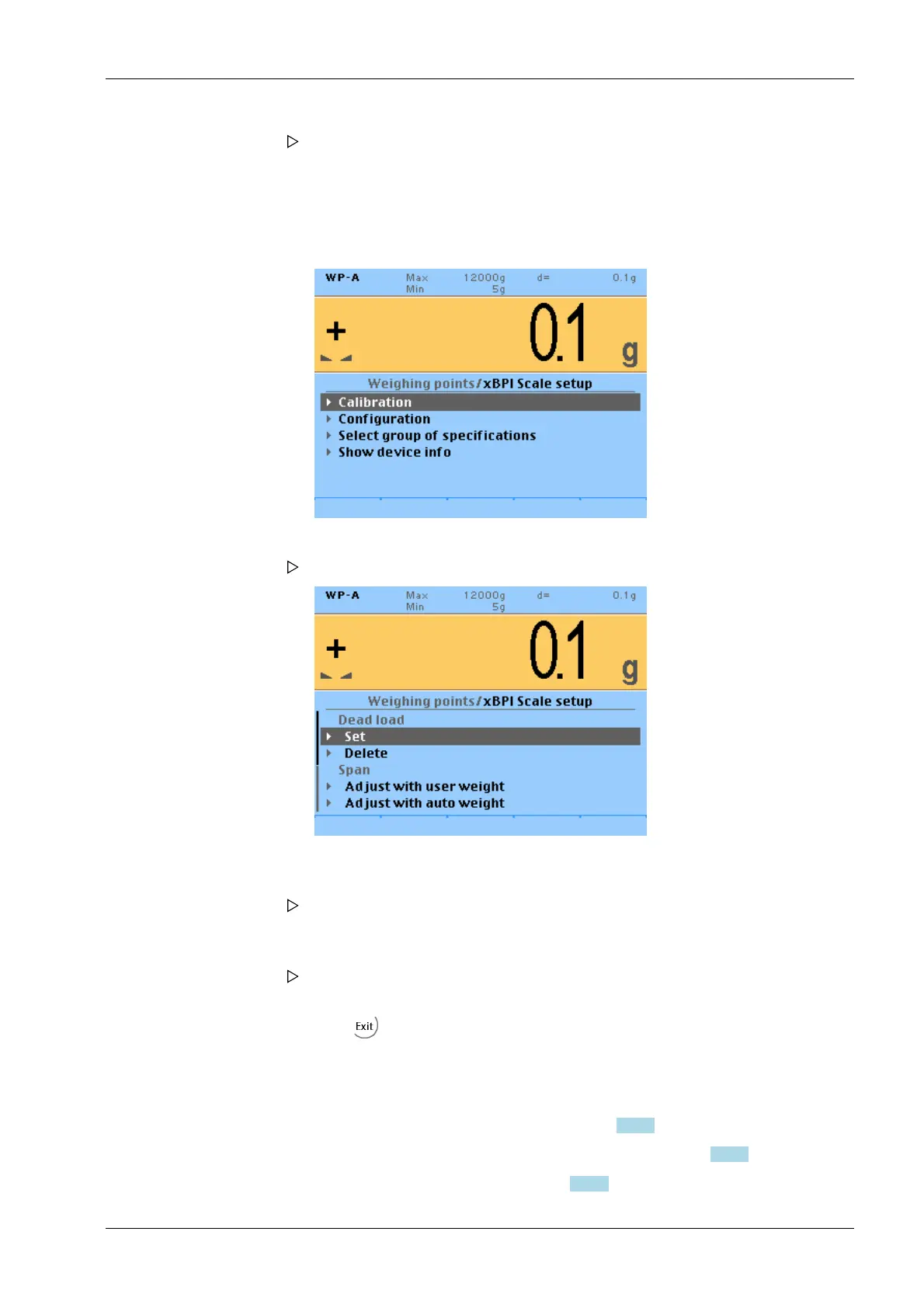

The following window opens:
The parameters of the xBPI-scale are read into the device.
3. Select [Calibration] with the cursor and confirm.
The following window opens:
4. For setting the dead load, remove the weight from the scale and select [Set] using the
cursor and confirm.
After sending the command, 0 is indicated on the gross weight display.
5. Alternatively, the stored dead load can be deleted: Remove the weight from the scale
and select [Delete] using the cursor and confirm.
The stored dead load is deleted. The current dead load is shown on the weight
display.
6. Press the softkey to exit the menu and to save the settings.
7 Getting started X3 Process Indicator PR 5410
Minebea Intec EN-195
