4.4.2 Display board
The display board is connected to the main board by a plug.
4.4.3 Network port
The device has an internal Ethernet port.
NOTICE
Damaged data will bring a stop to IT operations.
Protect the IT network to prevent unauthorized access.
The current IT security guidelines must be followed so as to minimize the risks.

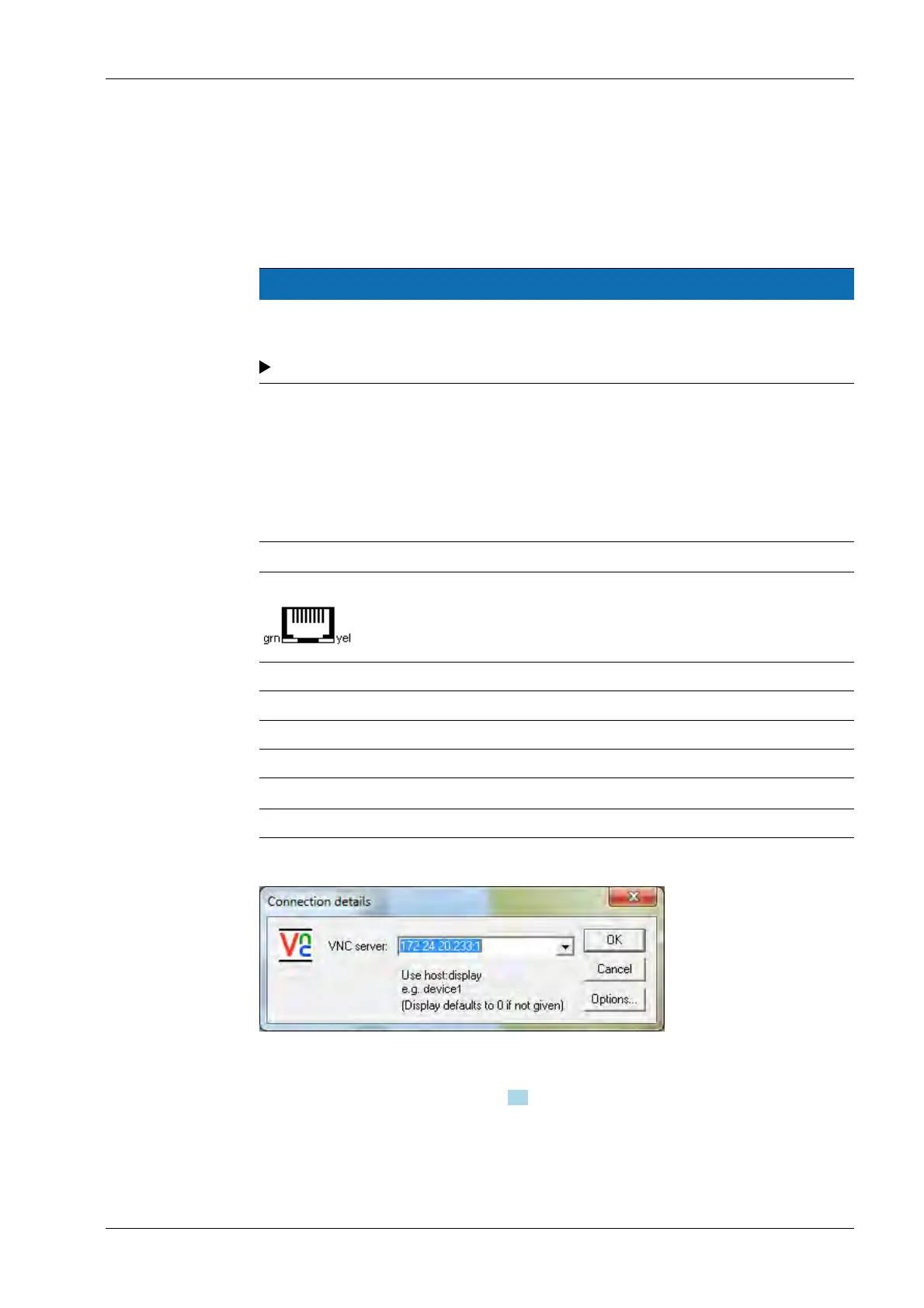

4.4.3.1 Ethernet port
The Ethernet port contains a powerful TCP/IP interface connection with transfer rates of
10 or 100 Mbit/s.
Function tests can be performed via the LEDs (green and yellow) in the RJ-45 socket.
Technical data
Description Data
Connection
RJ-45 socket on the device back
Green (grn): flashing on data traffic (activity)
Yellow (yel): lights up when there is an existing connection
(link)
Transfer rate 10 Mbit/s, 100 Mbit/s, full/half duplex, auto-detection
Connection mode Point to point
Potential isolation Yes
Cable type CAT 5 patch cable, twisted pair, screened
Cable impedance
150 Ω
Cable length Max. 115 m
4.4.3.2 Notebook/PC connection
Remote operation of the device from a notebook/PC is possible (install VNC software
version 3.3.7* on the notebook/PC).
For the network address, see Chapter7.9.
* Minebea Intec guarantees the functionality only if this version is used.
4 Device installation X3 Process Indicator PR 5410
Minebea Intec EN-35
