Function SPM Bit Description
marker bit 3 X66 = 1 Marker bit 3 set, after power-on the
markers are set to "0".
7.18.7.4 Saving parameters
7.18.8 Configuring digital inputs
An action both for signal change from 0 to 1 (on) and from 1 to 0 (off) can be determined
for each of the three inputs.
Digital inputs can be linked with conditions that must be met before an action can be
started.
The parameters for the digital inputs are defined under
-[Digital i/o parameter].

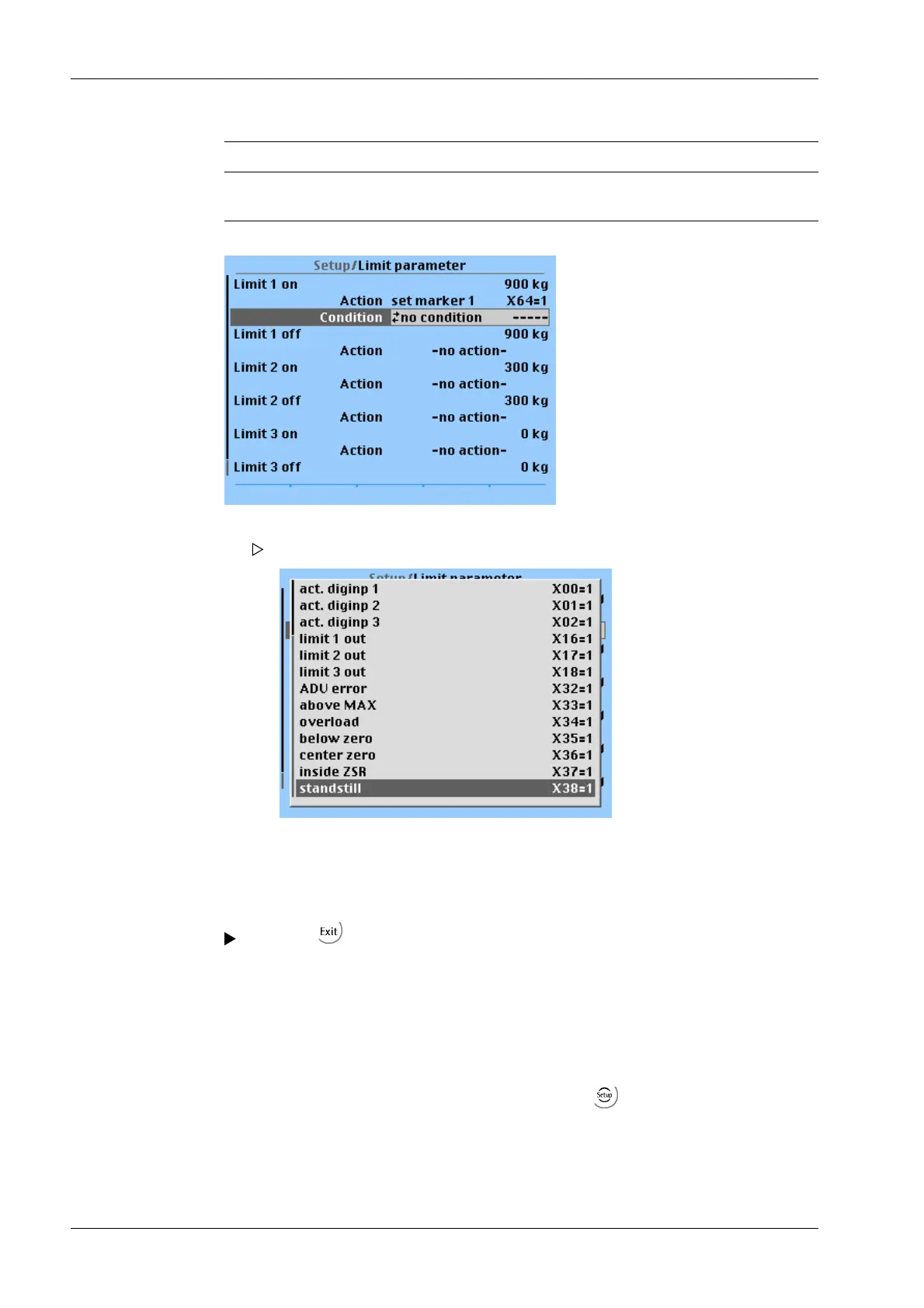

1. Highlight and confirm the condition line of the appropriate limit using the cursor.
A selection window opens.
2. Select and confirm the appropriate line (here: Standstill is active).
3. If applicable, select additional conditions for the other limits and confirm.
Press the softkey to exit the menu.
X3 Process Indicator PR 5410 7 Getting started
EN-250 Minebea Intec
