4.6.12 Status LEDs on fieldbus card
Watchdog LED
Frequency Color Meaning
Flashing 1 Hz green Module is initialized and ready for operation.
Flashing 2 Hz green Module is not initialized.
Flashing 1 Hz red RAM check error
Flashing 2 Hz red Check error in ASIC and FLASH ROM: Module is
defective.
Flashing 4 Hz red ProfiBus-DP RAM check error
4.6.13 ProfiBus DP interface

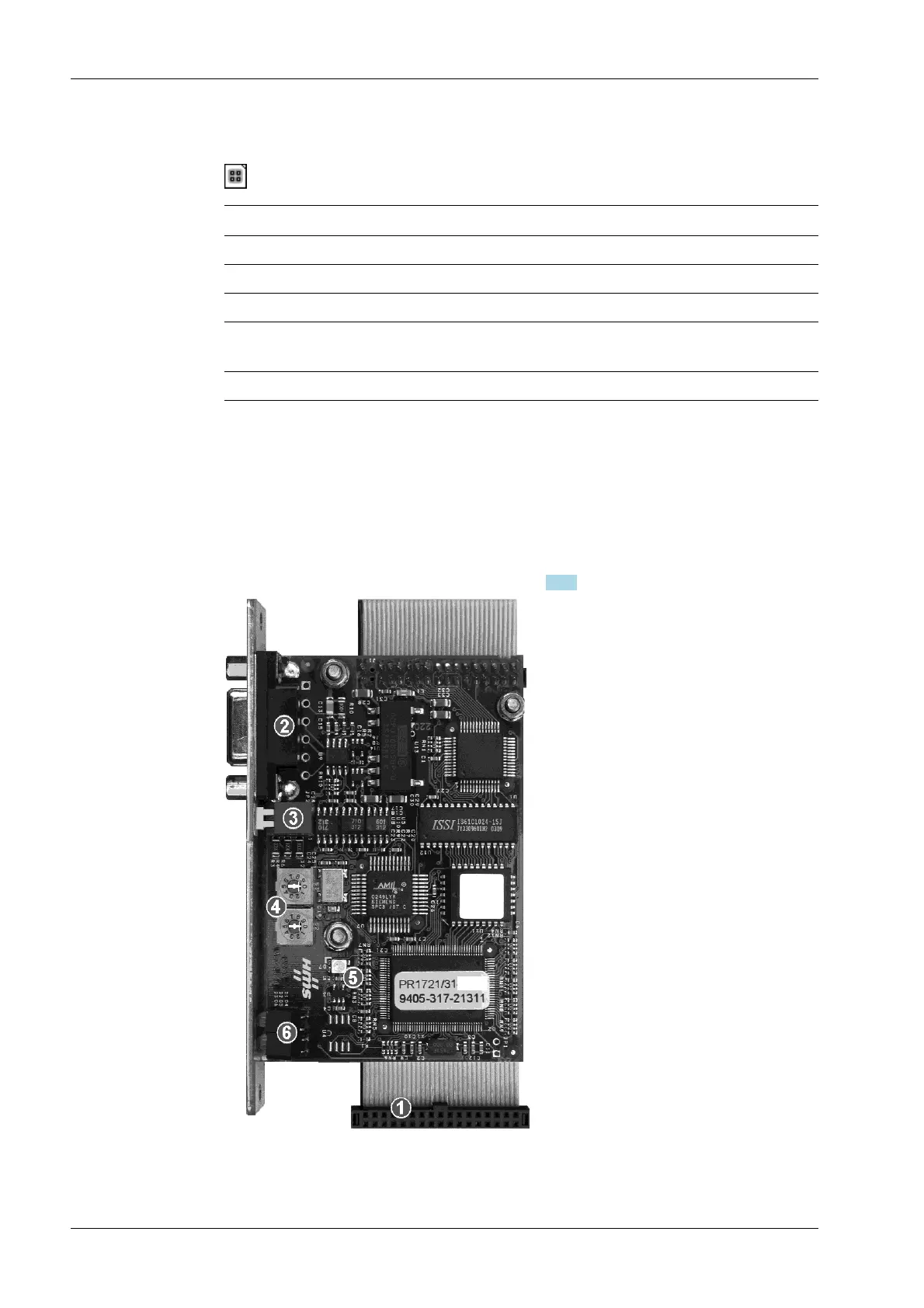

The ProfiBus DP interface card has the type designation PR 1721/31.
Communication protocols and syntax comply with the ProfiBus-DP standard to IEC 61158,
with transfer rates up to 12 Mbit/s.
Connection to the ProfiBus is established using the 9-pin D-Sub female connector ② on
the back of the device.
The card is inserted into "Slot 4" ① (see Chapter
4.6.1).
X3 Process Indicator PR 5410 4 Device installation
EN-96 Minebea Intec
