Minebea Intec X3 User Manual

Technical data
Description Data
Transfer rate 9.6 kbit/s to 12 Mbit/s, baud rate auto-detection
Connection mode ProfiBus network,
connections can be made/released without affecting other
stations.
Protocol PROFIBUS-DP-V0 SLAVE to IEC 61158
- Mono or multi-master systems are supported.
- Master and slave devices, max. 126 nodes possible.
- Watchdog Timer ⑤ (see Chapter
4.6.12)
Configuration GSD file
"SART5410.gsd"
Potential isolation Yes, optocoupler in lines A and B (RS-485)
Bus termination
Via bus terminating resistor switch ③ (see Chapter
4.6.13.3)
Cable type ProfiBus "special"; color: violet; screened twisted pair cable
Cable impedance
150 Ω
Cable length The max. distance of 200 m can be extended at 1.5 Mbit/s by
means of an additional repeater.
Certificates Profibus test center Comdec in Germany and PNO (Profibus
User Organization).
Industry-compatible CE, UL, and cUL
Note:
The GSD file is stored on the CD supplied with the device (fieldbus directory of the
respective device). The current file is also available to download online:
http://www.minebea-intec.com

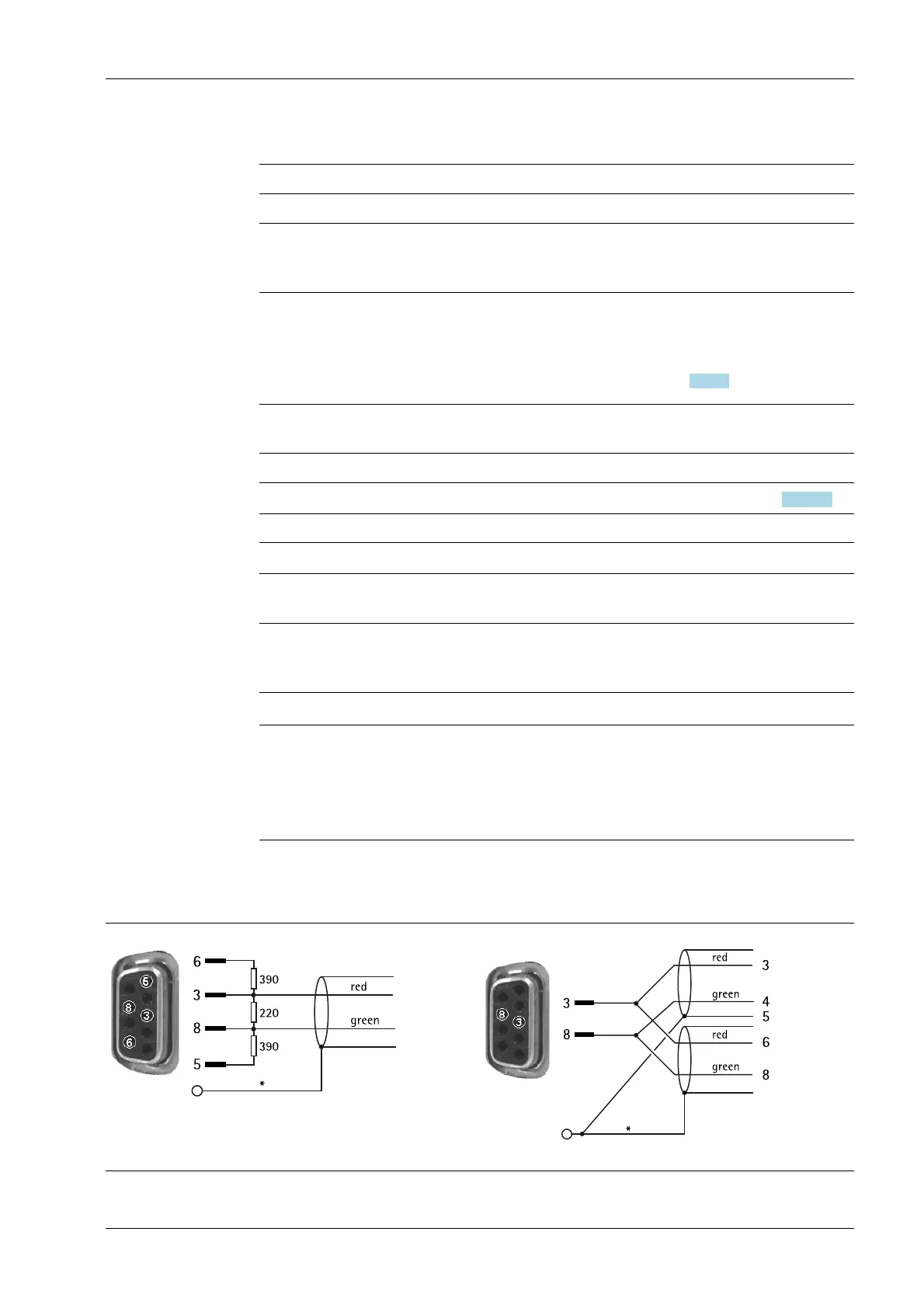

ProfiBus connection
The device is the only/last slave in the bus:
* screen on connector housing
The device is not the only/last slave in the bus:
* screen on connector housing
4 Device installation X3 Process Indicator PR 5410
Minebea Intec EN-97
