Description Data
Potential isolation None
Cable type Twisted pair, screened (e.g. LifYCY 3×2×0.20), 1 pair of wi-
res for ground (GND).
Cable gauge
1.5 mm
2
Cable length max. 15 m

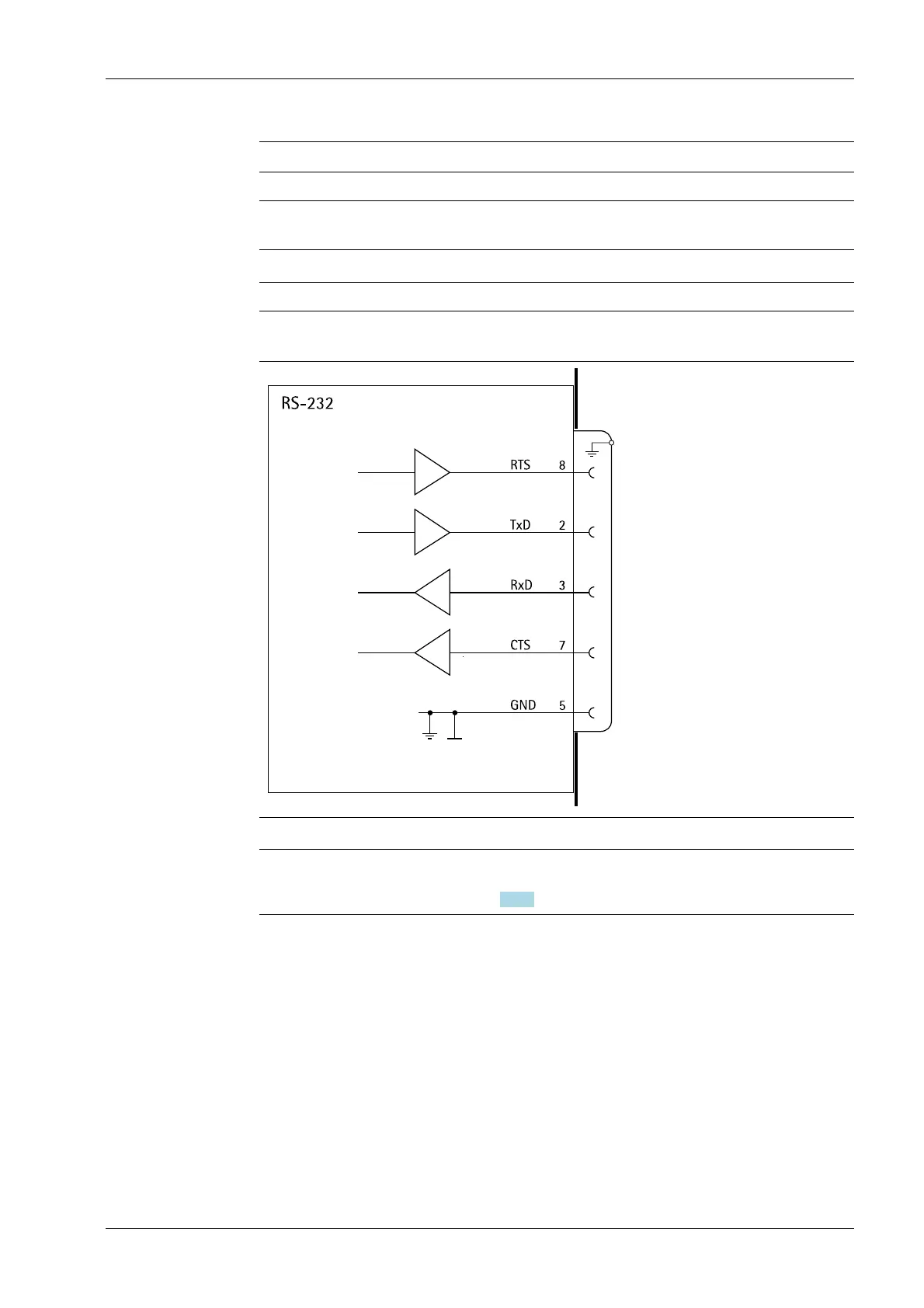

Block diagram RS-232
Note:
For more information, see Chapter 4.4.4.
4.6.3 1× RS-232 interface and 1× RS-485 interface
This interface card has the type designation PR 5510/04.
The plug-in card has one RS-232 channel and one RS-422/485 channel which can be used
simultaneously and more or less independently (depending on the transfer rate) from
each other.
Up to two PR 5510/04 cards can be plugged into "Slot 1" and "Slot 2."
These interfaces are configurable, and can be used, for example, for data transmission to
a remote display or printer.
