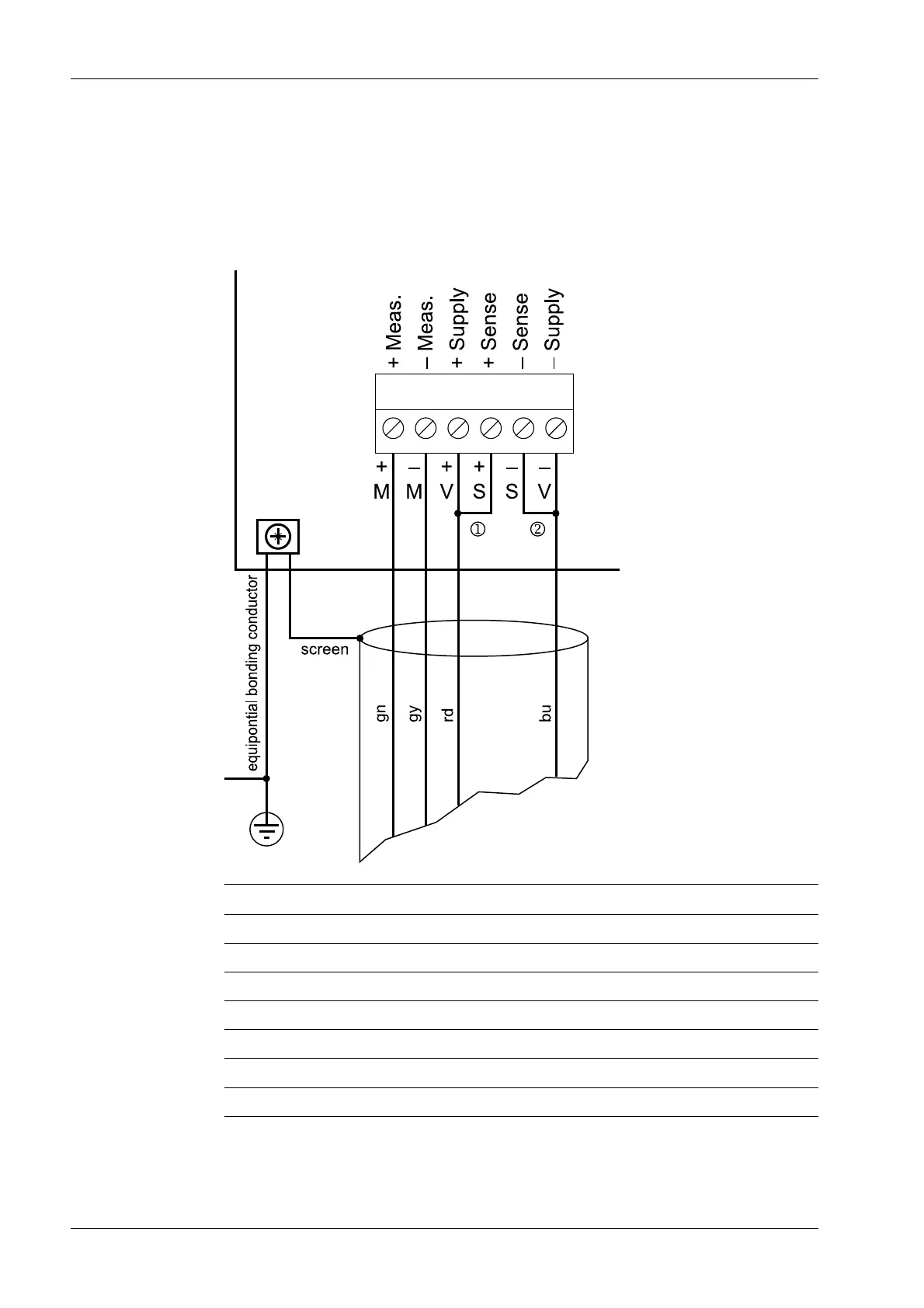

4.5.2 Connecting a load cell with a 4-wire cable
The following links between the terminal contacts are provided:
① from Sense S+ to Supply V+
② from Sense S- to Supply V-
Terminal Connection/color code Description
M+ + Meas./gn + Measuring voltage (load cell output)
M- - Meas./gy - Measuring voltage (load cell output)
S+ + Sense + Sense voltage
S- - Sense - Sense voltage
V+ + Supply/rd + Supply voltage
V- - Supply/bu - Supply voltage
Housing Ground (GND) Screen (ground)
X3 Process Indicator PR 5410 4 Device installation
EN-46 Minebea Intec
