3.4 Display and operating elements
3.4.1 General information
The PR 5410 process indicator can only be operated using the front-panel keys or by
Notebook/PC.
- Operation using the front-panel keys (see Chapter 7.5.2)
- VNC viewer (see Chapters 3.4.4.4 and 7.11) or
- WEB browser (see Chapter 7.12)

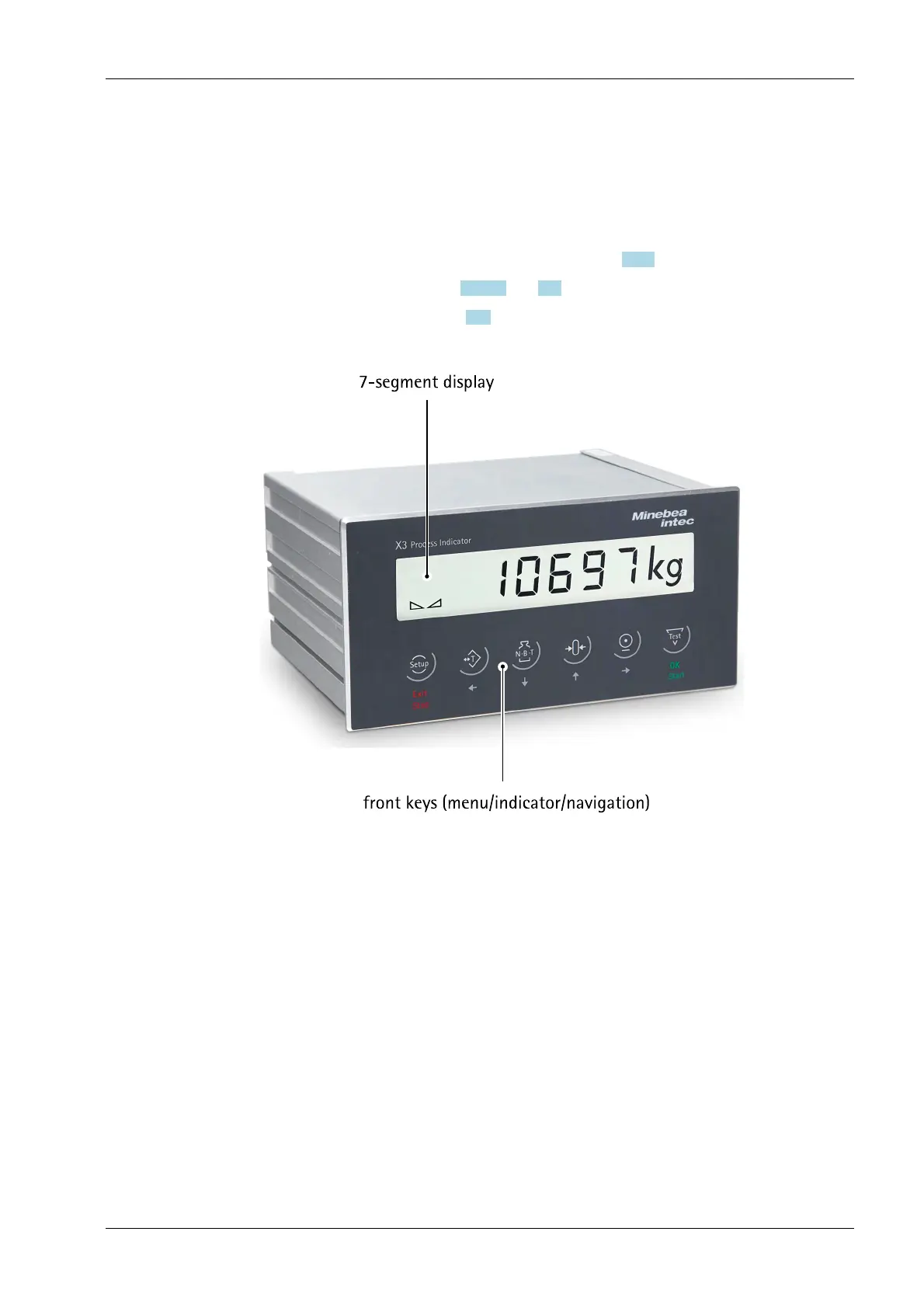

3.4.2 Overview
3.4.3 Display
3.4.3.1 User interface
The user interface display can show weight values of up to 7 digits with decimal point and
plus or minus sign.
The available mass units are t, kg, g, or lb.
The lb unit is not permitted for use in legal metrology in the EU and EEC.
Above the weight display on the user interface, the currently displayed weight is shown in
a bar graph that indicates the percentage of the maximum capacity (Max). 0 is on the left,
and 100% on the right.
3 Device description X3 Process Indicator PR 5410
Minebea Intec EN-19
