In the descriptions of operating sequences which entail the use of softkeys, the softkey
function to be selected is shown in square brackets; the softkey symbol is not displayed;
example: [Calib].
3.4.4.3 Navigation key operation
Menu
The cursor keys, the
and keys are used to navigate through the menus.
Parameters
Use the cursor keys to select the individual parameters.
Use the key to confirm the selection.
The required values | texts are entered via the alphanumeric keys.
The key is used to check the ☑ box.
If the list of parameters is long, a vertical bar graph on the left (black and gray) shows
which part of the list is displayed.
An arrow in front of a menu item indicates that there are menu sublevels.
Possible settings and an available selection list is indicated by double arrows.
The parameter is selected using the
key.
3.4.4.4 Operation using VNC
User interface, see Chapters 3.4.2, 3.4.3.1 and 3.4.4.1.

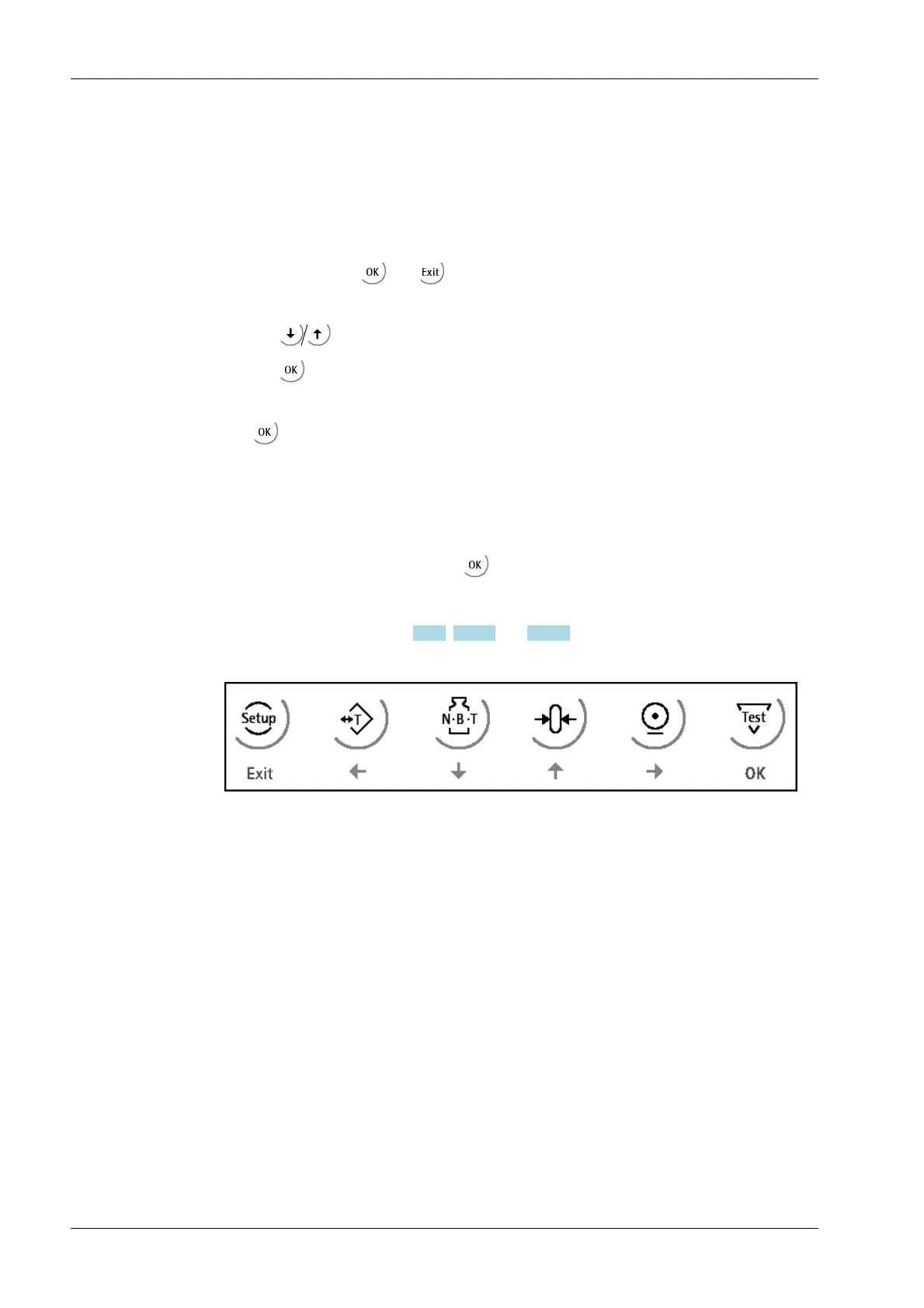

3.4.4.5 Operation using the front-panel keys
X3 Process Indicator PR 5410 3 Device description
EN-26 Minebea Intec
