RL78/G10 CHAPTER 6 TIMER ARRAY UNIT

R01UH0384EJ0311 Rev. 3.11 152

Dec 22, 2016

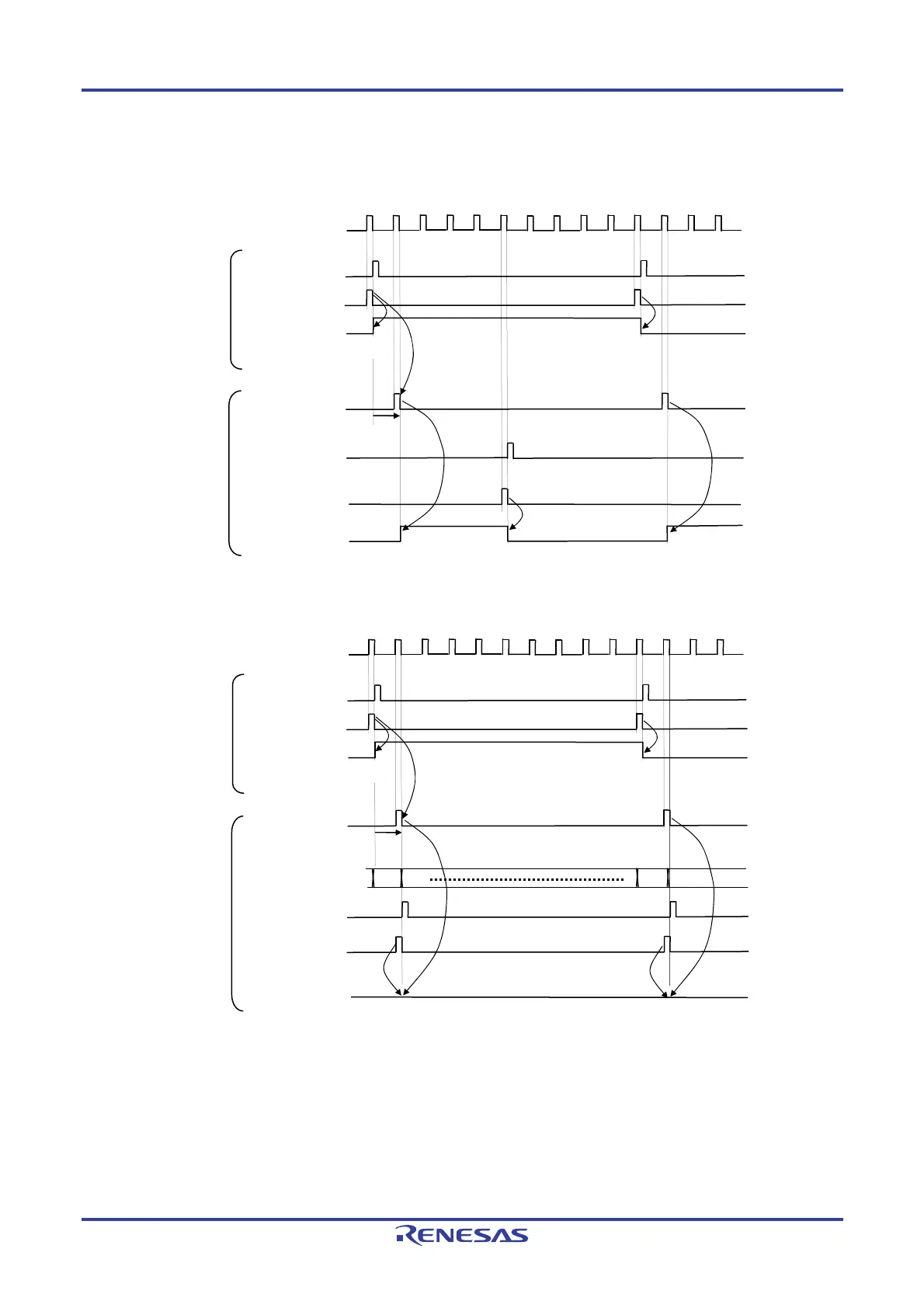

Figure 6-34. Set/Reset Timing Operating Statuses

(a) Basic operation timing

(b) Operation timing when 0 % duty

Remarks 1. Internal reset signal: TO0n pin reset/toggle signal

Internal set signal: TO0n pin set signal

2. n: Master channel number (for 10-pin products, n = 0; for 16-pin products, n = 0, 2)

p: Slave channel number (n < p ≤ 3)

TO0n pin

TO0n

INTTM0p

fTCLK

INTTM0n

Internal reset

signal

Internal set

signal

Internal reset

signal

TO0p pin

TO0p

Master

channel

Slave

channel

1 clock delay

Toggle

Set

Reset

Reset has priority.

Reset

Reset has priority.

TCR0p

0000

0001

0000

0001

TO0n pin

TO0n

INTTM0p

fTCLK

INTTM0n

Internal reset

signal

Internal reset

signal

TO0p pin

TO0p

Master

channel

Slave

channel

1 clock delay

Toggle Toggle

Set

Reset

Internal set

signal
