RL78/G10 CHAPTER 6 TIMER ARRAY UNIT

R01UH0384EJ0311 Rev. 3.11 164

Dec 22, 2016

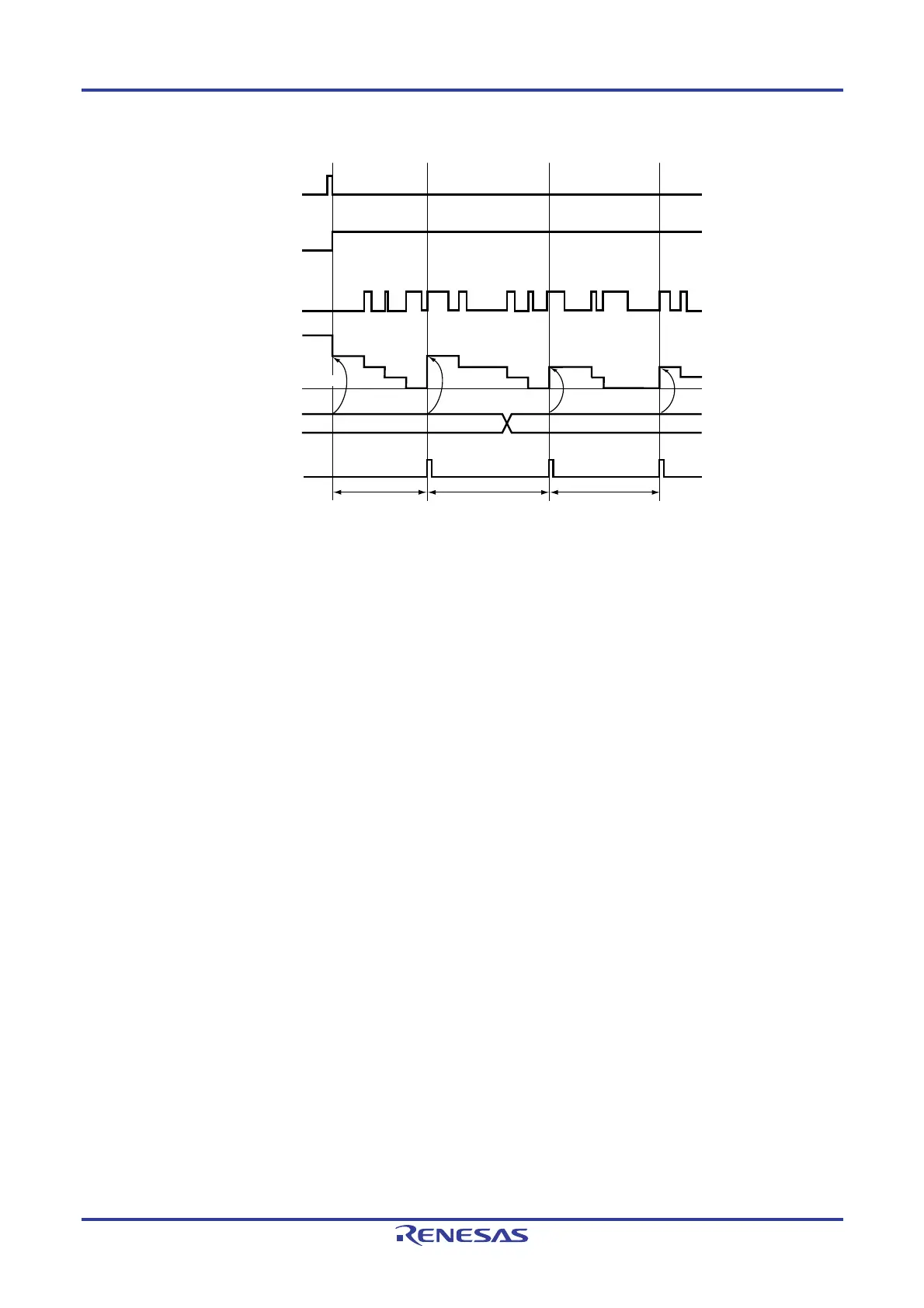

Figure 6-45. Example of Basic Timing of Operation as External Event Counter

TS0n

TE0n

TI0n

TDR0n

TCR0n

0003H 0002H

0000H

INTTM0n

4 events

3 events

Remarks 1. n: Channel number

n = 0, 1 (for 10-pin products); n = 0 to 3 (for 16-pin products)

2. TS0n: Bit n of timer channel start register 0 (TS0)

TE0n: Bit n of timer channel enable status register 0 (TE0)

TI0n: TI0n pin input signal

TCR0n: Timer count register 0n (TCR0n)

TDR0n: Timer data register 0n (TDR0n)
