RL78/G10 CHAPTER 2 PIN FUNCTIONS

R01UH0384EJ0311 Rev. 3.11 19

Dec 22, 2016

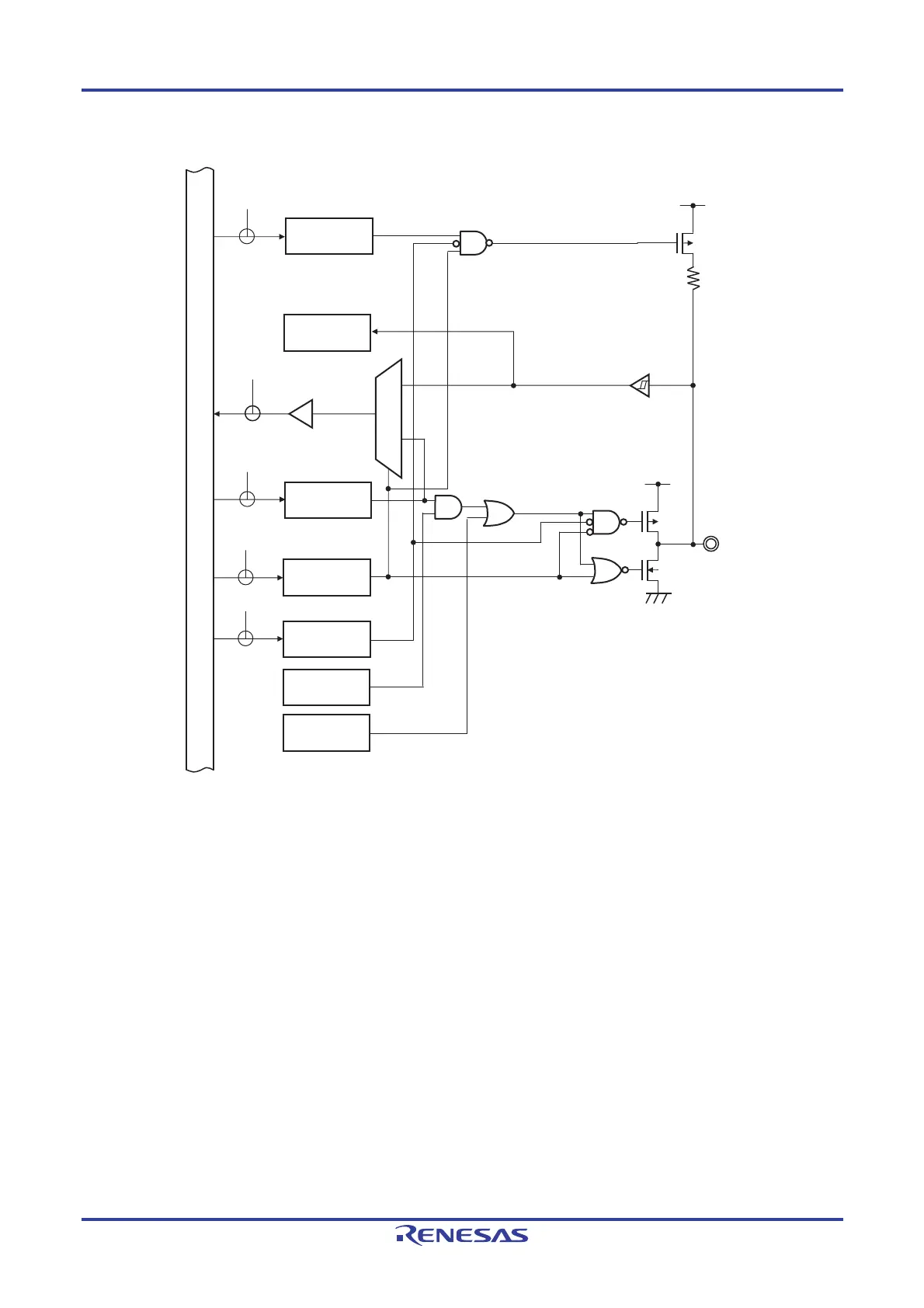

Figure 2-5. Pin Block Diagram for Pin Type 7-1-2

PORT

Pmn

POM

P-ch

N-ch

P-ch

POM register

(POMmn)

Internal bus

PU register

(PUmn)

Alternate

function

PM register

(PMmn)

Alternate

function (SAU)

Alternate function

(other than SAU )

Output latch

(Pmn)

Caution A through current may flow through if the pin is in the intermediate potential, because the input

buffer is also turned on when the pin is in N-ch open-drain output mode by port output mode register

(POMx).

Remarks 1. For alternate functions, see 2.1 Port Functions.

2. SAU: Serial array unit
